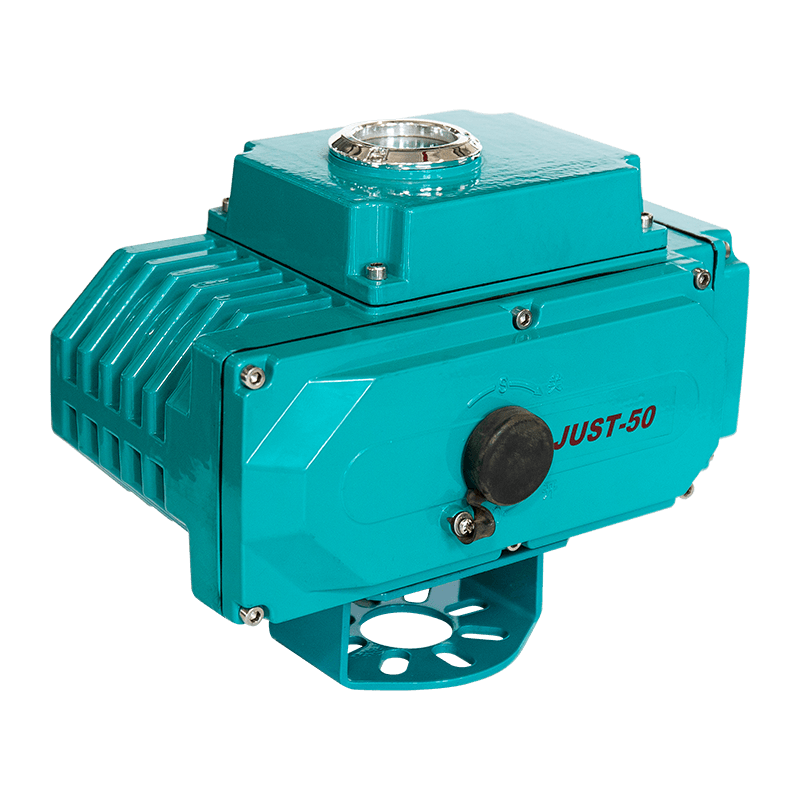

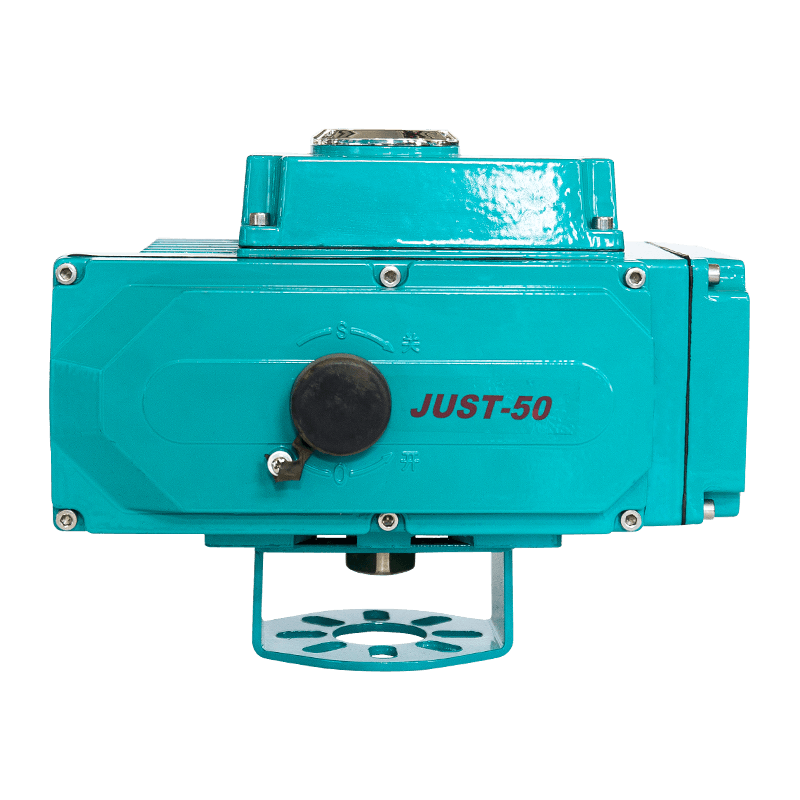

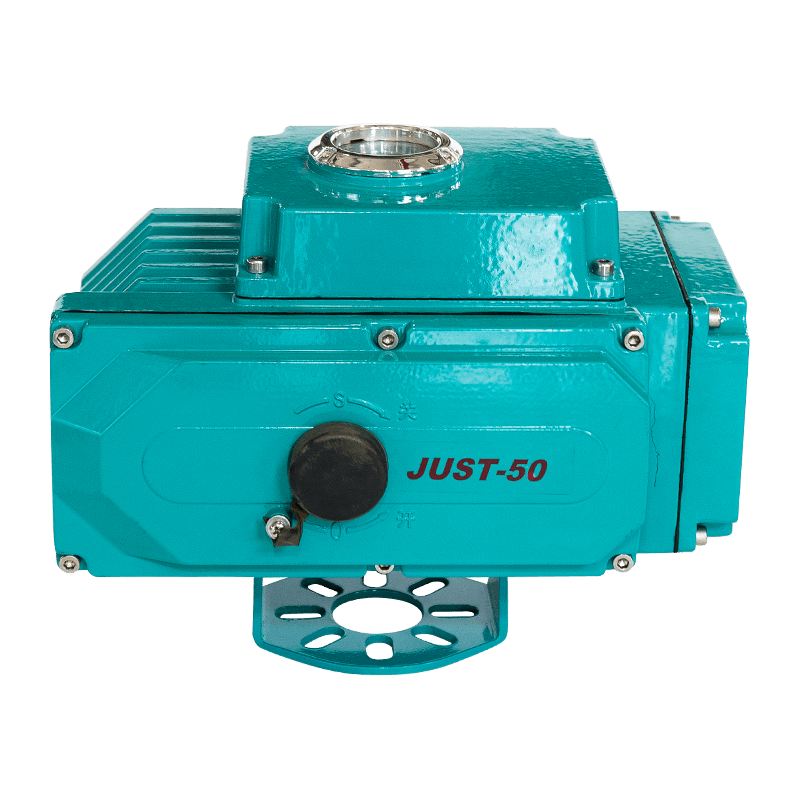

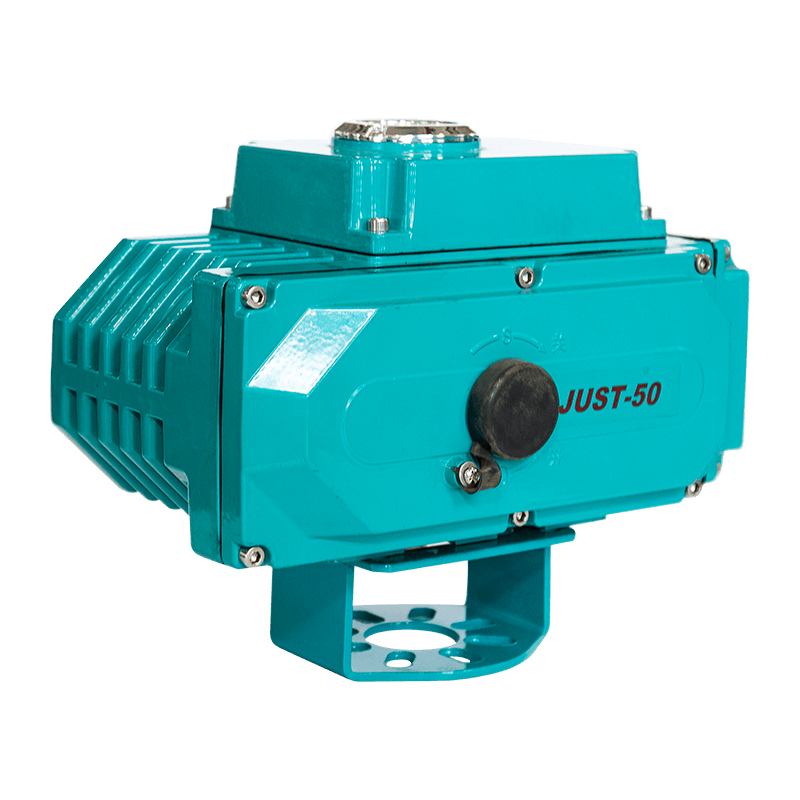

Product Features
● Compact size: only about 35% of similar products;
● Lightweight and pleasant: the weight is equivalent to one-third of similar products;
● Beautiful and elegant: Die cast aluminum alloy shell, with a fine and smooth appearance that can reduce electromagnetic interference;
● Fully functional: switch type, passive contact type, proportional type, intelligent adjustment type are all available;
● Precision wear resistance: The worm gear and worm gear are perfectly combined, harmoniously linked, and the integrated output of the worm gear effectively reduces the connection gap, greatly improving the transmission accuracy
● Easy to use: no inspection, no refueling, rust and waterproof, can be installed at any angle;
● Multiple protections: electrical limit, mechanical limit, overheating protection, overload protection, dehumidification protection
● Diverse speeds: 5 seconds, 8 seconds, 15 seconds, 30 seconds, 50 seconds, 100 seconds, etc;
● Numerical control adjustment: highly integrated intelligent module, digital setting, digital tuning, self diagnosis highly accurate, no need for locator, automatic control, one machine with multiple functions;
● Security guarantee: Through AC1500V withstand voltage testing, the H-level highly insulated motor ensures the safety of the machine body and production;
● Simple supporting: using single-phase, three-phase, DC power supply, with simple external wiring.
Characteristic Parameter Table of QC Rotary Valve Electric Actuator
| Model | QC-5 | QC-10 | QC-16 | QC-25 | QC-50 | QC-100 | QC-200 |
| Power Supply | AC22050/60HZ(AC24V,AC110V,AC380V,DC24V,DC220V Please specify when placing an order) | ||||||
| Moment | 50N.M | 100N.M | 160N.M | 250N.M | 500N.M | 1000N,M | 2000N.M |
| Time | 5,10,30 | 5,10,30,60 | 5,15,30,60 | 5,15,30,60 | 5,15,30,60 | 60 | 100 |
| Electric machinery | 15W/H | 23W/H | 23W/H | 50W/H | 90W/H | 100W/H | 100W/H |
| Working current | 0.25A | 0.6A | 0.7A | 0.8A | 1.2A | 1.3A | 1.3A |
| Weight | 2.5KG | 3.7KG | 3.7KG | 6.8KG | 8.0KG | 12KG | 12KG |
| Rotation angle | 0～360° | 0~90° | |||||
| Ambient temperature | -30℃-+60℃ | ||||||
| Voltage resistance value | 1500VAC/1 minute | ||||||
| Protection level | IP-65 | ||||||
| Limit position | Electrical Machinery | ||||||
| Manual operation | Comes with a handle | ||||||
| Installation angle | Any angle | ||||||
Note: Time refers to the time required to form from 0 degrees to 90 degrees; The rotation angle refers to the adjustable range of angles formed.
Optional features: 1. Heating dehumidifier; 2. Over torque protector; 3. 4-20mA, 0-10V, 1-5V intelligent adjustable type

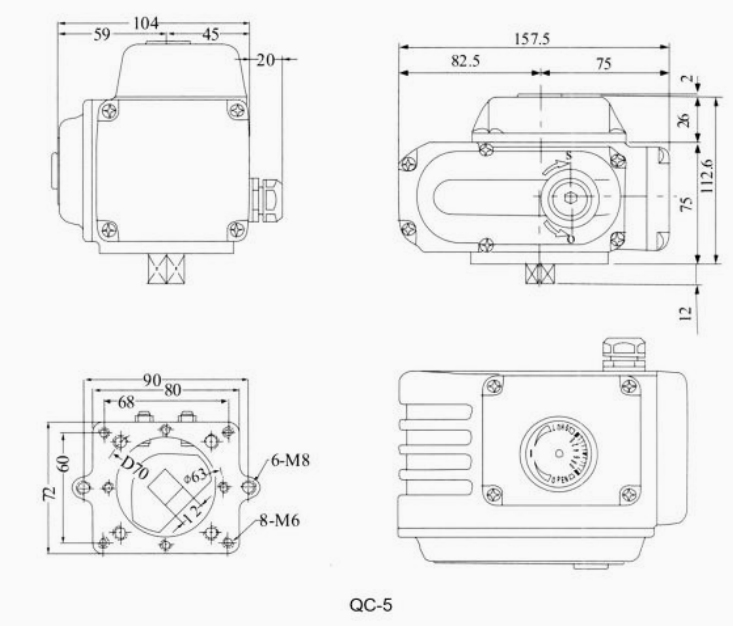

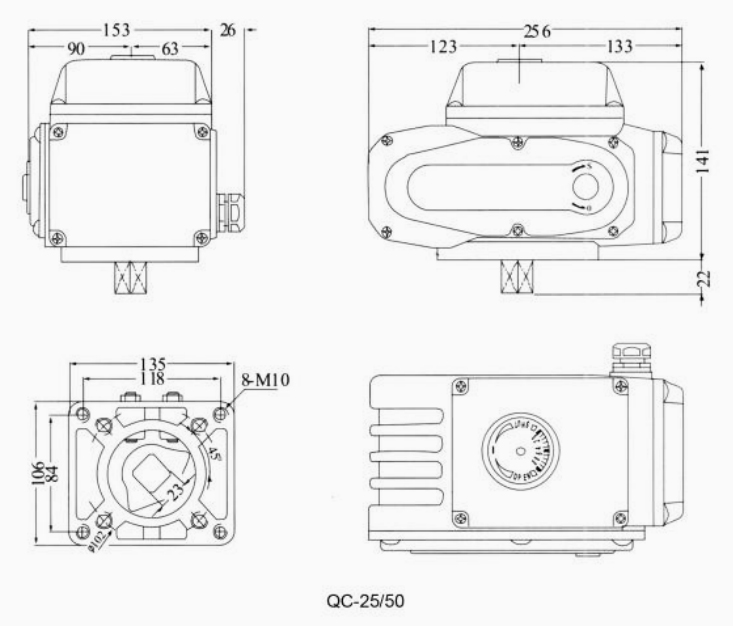

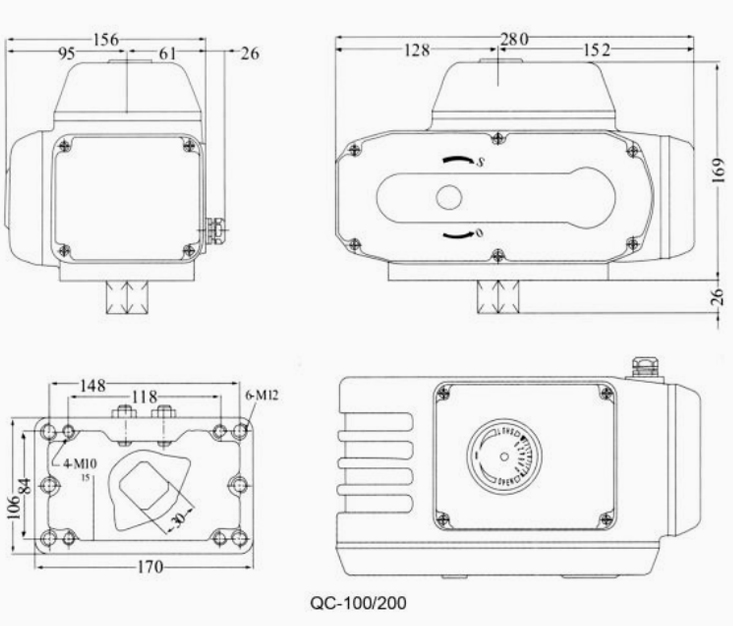

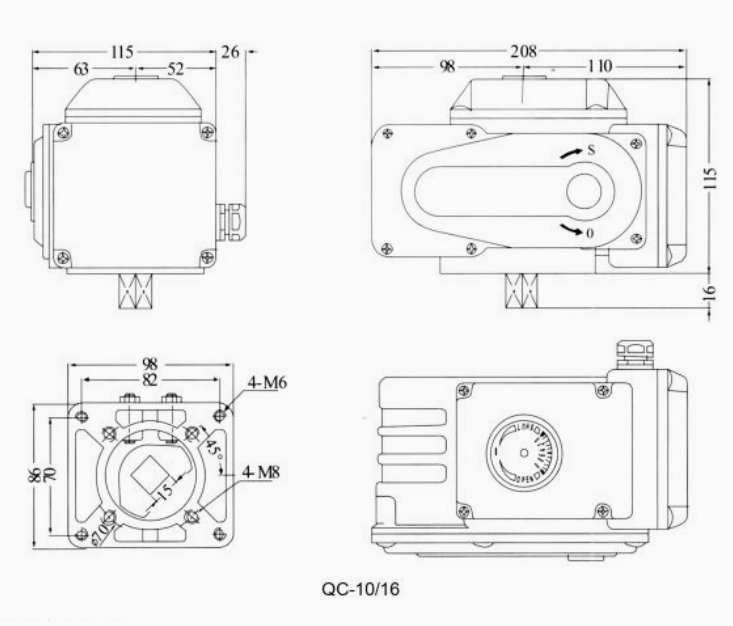

Outline Dimension Diagram
