Brief Introduction

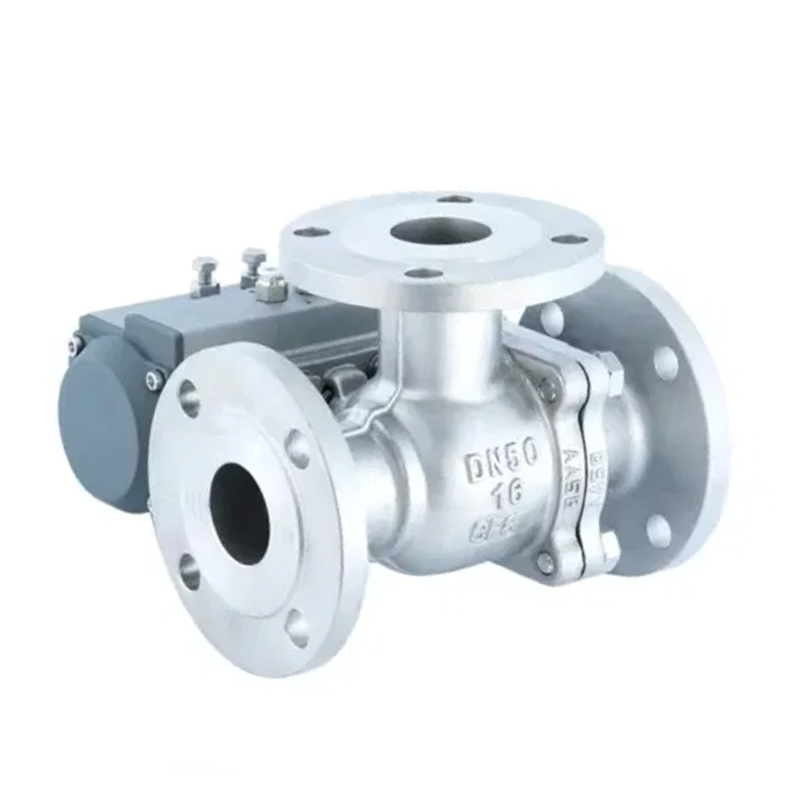

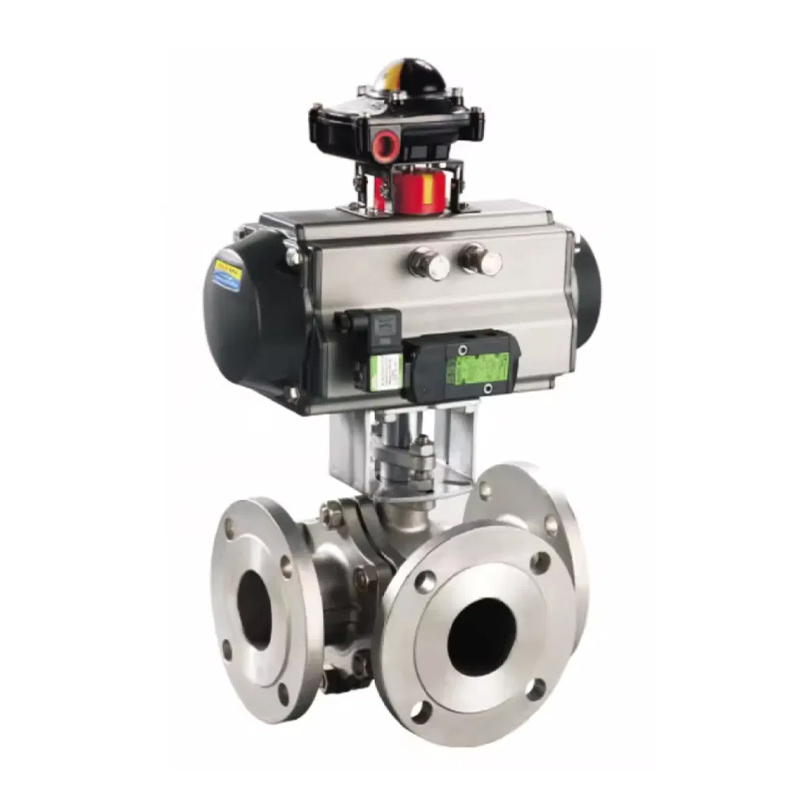

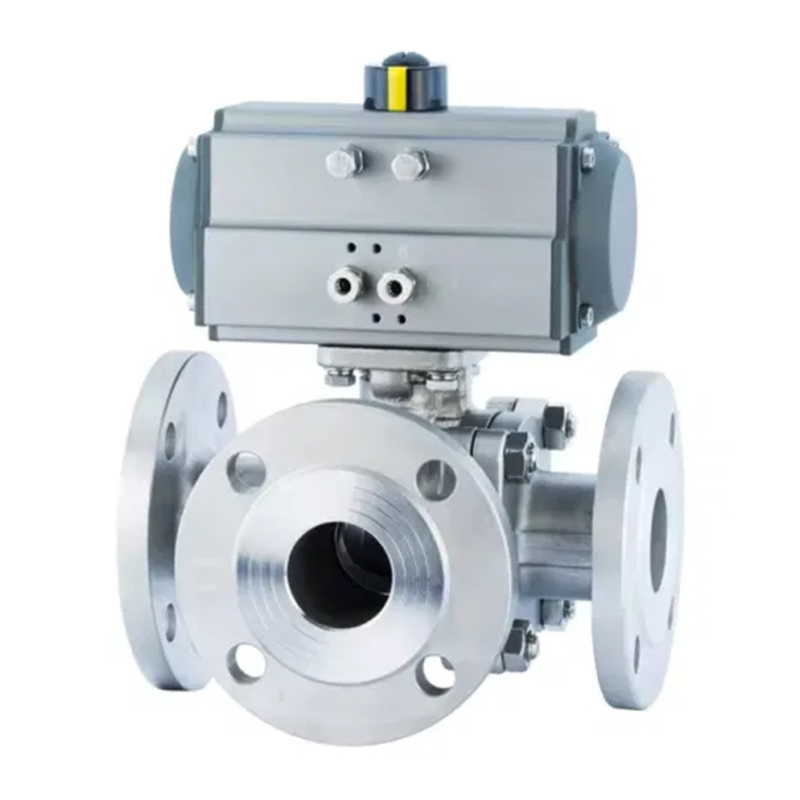

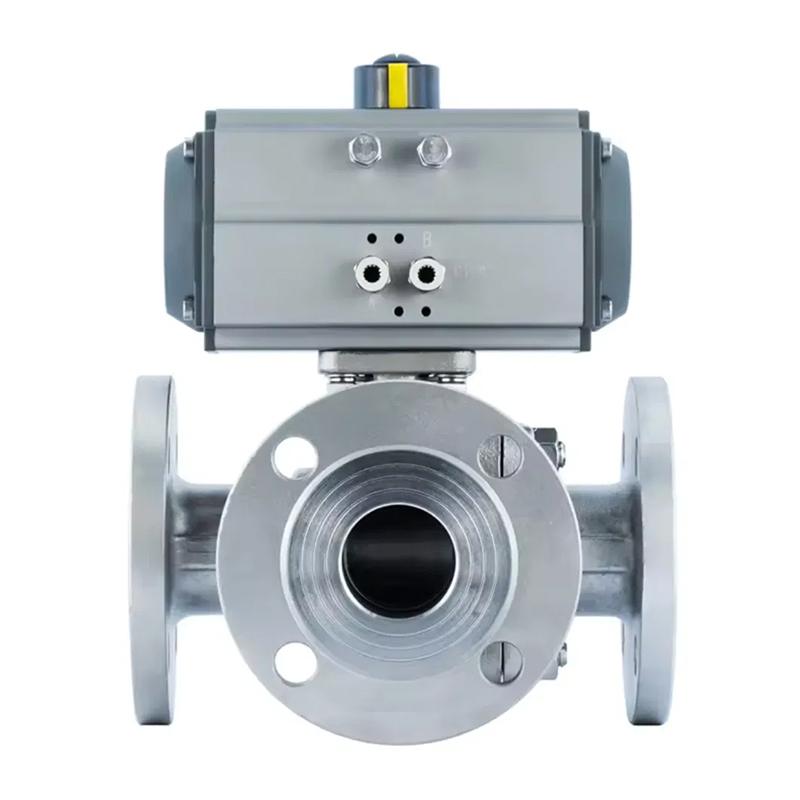

Q644/45F pneumatic three-way flange ball valve can be L-type or T-type. L-type (BQ644F) three-way ball valve is used for switching the flow direction of the medium and can connect two perpendicular channels; T-type (BQ645F) three-way ball valve is used for medium diversion, confluence and flow direction switching. T-type three-way can make three channels interconnected or connect two of them. Pneumatic three-way ball valve generally adopts two-seat structure, and can also adopt four-seat structure according to user requirements. It is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, papermaking, food, steel and other pipeline systems to switch the flow direction of the medium and divert or mix the medium.
Technical Parameter
Pneumatic Actuator Optional Features | Double acting, single acting |
Pneumatic actuator optional models | AT series, AW series |
Solenoid valve voltage | AC110V,AC220V,AC24V,DC24V |
Air source pressure | 2bar-8bar |
Nominal diameter | DN15mm-DN200mm |
Nominal pressure | PN1.0MPa~PN1.6MPa |
Applicable temperature | PTFE: -30-+120ºC PPL: ≤350ºC Metal seal: ≤450ºC |
Connection | Flange |
Valve body material | Cast steel, 304, 316, 316L |
Valve plate material | 304, 316, 316L |
Valve seat lining | PTFE, PPL, metal seal |
Applicable media | Water, petroleum, acid, viscous fluid, slurry medium, etc. |

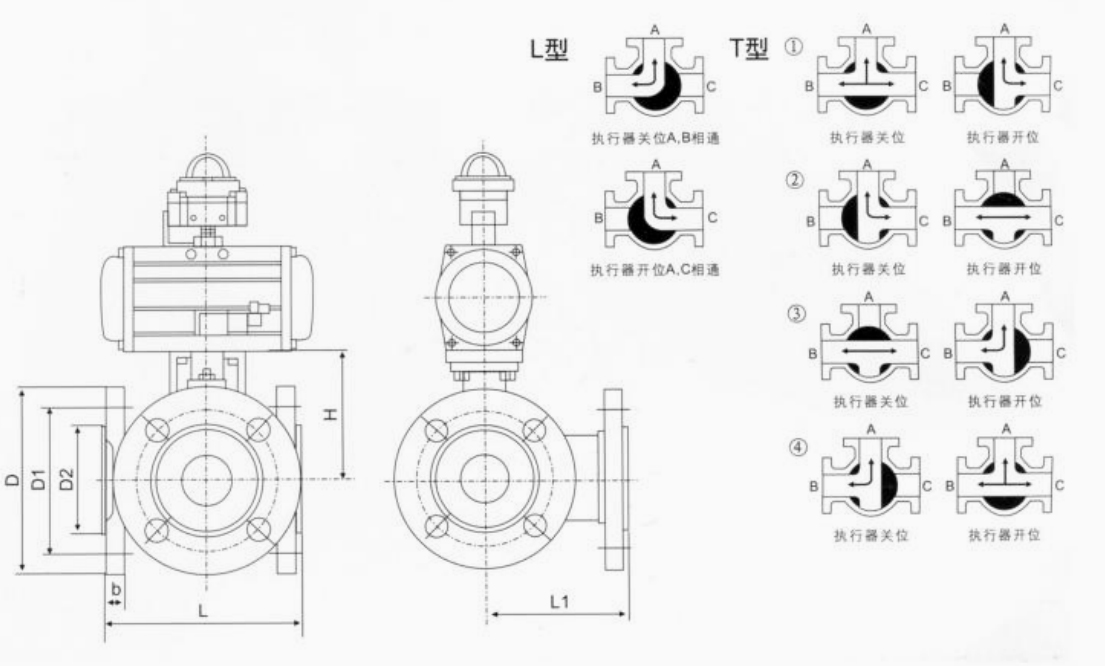

Main Dimension Table
DN(mm) | H | L | L1 | D | D1 | D2 | b |
15 | 53 | 150 | 75 | 95 | 65 | 46 | 14 |
20 | 58.5 | 160 | 75 | 105 | 75 | 56 | 16 |
25 | 70 | 180 | 90 | 115 | 85 | 65 | 16 |
32 | 77.5 | 200 | 100 | 140 | 100 | 76 | 18 |
40 | 86.5 | 220 | 110 | 150 | 110 | 84 | 18 |
50 | 92 | 240 | 120 | 165 | 125 | 99 | 20 |
65 | 107 | 260 | 130 | 185 | 145 | 118 | 20 |
80 | 119 | 280 | 140 | 200 | 160 | 132 | 20 |
100 | 150 | 320 | 160 | 220 | 180 | 156 | 22 |
125 | 200 | 380 | 190 | 250 | 210 | 184 | 22 |
150 | 240 | 440 | 220 | 285 | 240 | 211 | 24 |
200 | 300 | 550 | 275 | 340 | 295 | 266 | 24 |
