PXW Mining Water Distribution Valve

Get A Quote

Main Features and Applications

The PXW series mining water distribution valve is mainly used for water distribution in various suction wells of underground pump rooms in coal mines, and can also be used for mineral processing, water treatment tank discharge, etc.

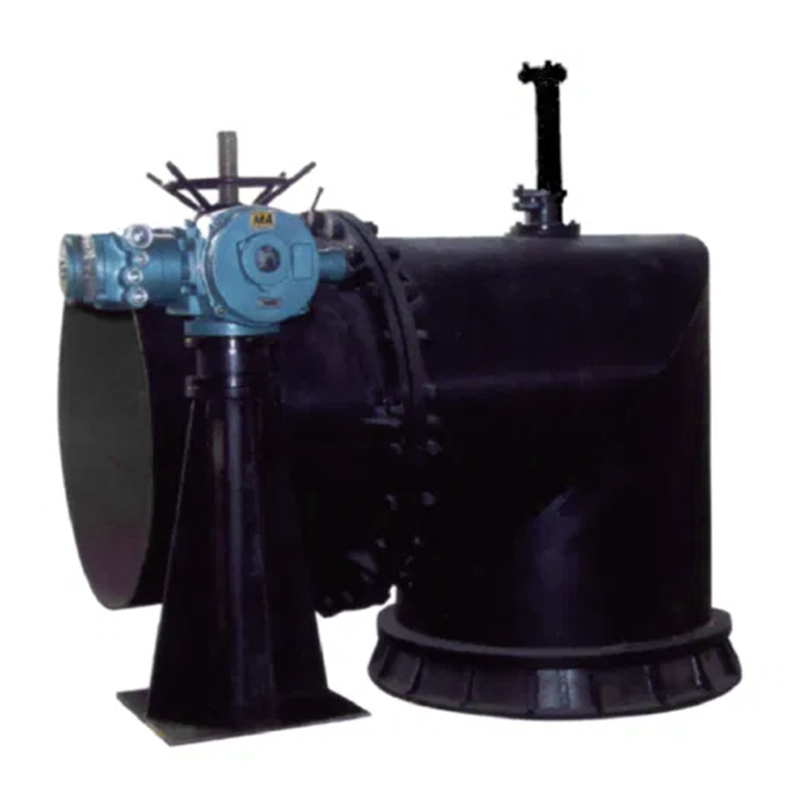

The PXWI series manual water distribution valve is an improved design based on the original water distribution valve PZ1, with good sealing performance, easy cleaning, and flexible operation
Characteristics such as liveliness and labor-saving.

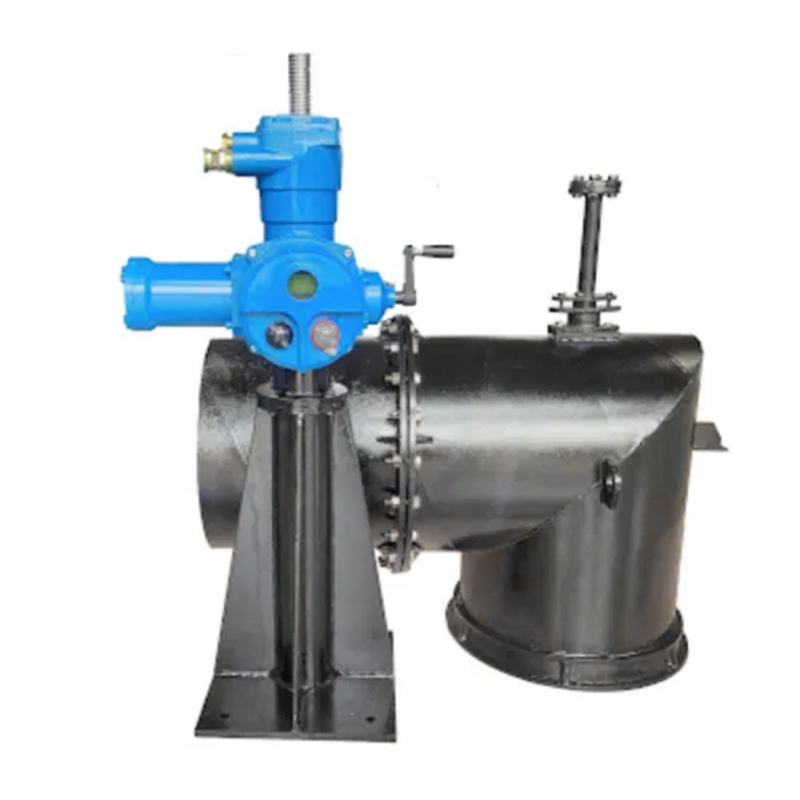

The PXWI electric water distribution valve is a mining explosion-proof valve electric device added to the PXWI manual water distribution valve, which has a split type and a single type
There are two types of postures:
After being used in conjunction with the KXBC mining explosion-proof valve electric device control box, the split type electric water distribution valve can be connected to the DCS system to achieve
Automation control of underground water pump room in coal mines;
The integrated electric water distribution valve comes with a control system, which can be switched on and off or remotely controlled on the body without the need for a separate control box.
Modbus, Profibus and other bus communication can be configured, with 485 bus interface to achieve data communication.

Main Performance Specifications

Model	PXWII(I)-400	PXWII(I)-500	PXWII(I)-600	PXWII(I)-800	PXWII(I)-1000	PXWII(I)-1200
Nominal diameter (mm)	400	500	600	800	1000	1200
Applicable medium and temperature	Water≤80°C
Operating stroke (mm)	220	220	290	300	350	350
Nominal pressure (MPa)	0.1(Test pressure 0.25)
Explosion proof valves for distribution mines	ZB20-24 ZBY20-24	ZB20-24 ZBY20-24	ZB30-24 ZBY30-24	ZB30-24 ZBY30-24	ZB45-24 ZBY45-24	ZB60-24 ZBY60-24
Electric device model“	0.55	0.55	0.75	0.75	1.1	1.5

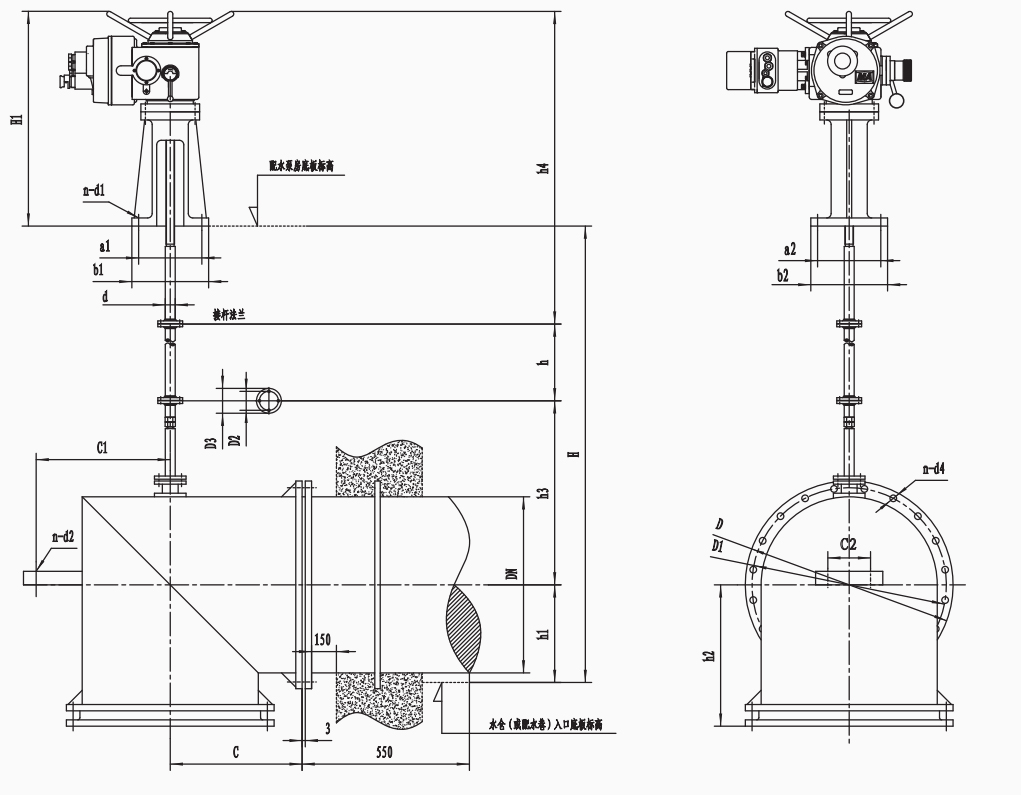

Main Connection Dimensions and Related Parameters

Valve model	DN	D	D1	D2	D3	d	H1	H1	H2	H3	H4
PXW II.(I)-400	400	540	495	90	120	35	1066	250	462	523	1250
PXW II.(I)-500	500	640	600	90	120	35	1066	300	512	673	1250
PXW II.(I)-600	600	760	705	90	135	45	1066	350	602	768	1250
PXW II.(I)-800	800	960	920	90	135	45	1066	450	702	868	1250
PXW II.(I)-1000	1000	1160	1120	110	160	50	1315	550	842	1119	1500
PXW II.(I)-1200	1200	1450	1380	110	160	50	1315	600	1010	1300	1500

Valve model	a1	a2	b1	b2	C	C1	C2	n×d1	n×d2	n×d3	n×d4
PXW II.(I)-400	300	300	400	400	410	260	70	4×F19	2×F15	4×F17	16×F23
PXW II.(I)-500	300	300	400	400	470	340	70	4×F19	2×F15	4×F17	16×F23
PXW II.(I)-600	300	300	400	400	520	360	80	4×F19	2×F19	4×F17	20×F25
PXW II.(I)-800	300	300	400	400	625	460	80	4×F19	2×F19	4×F17	24×F30
PXW II.(I)-1000	400	400	500	500	720	560	100	4×F19	2×F19	6×F22	27×F30
PXW II.(I)-1200	400	400	500	500	820	660	100	4×F19	2×F19	6×F22	30×F30

Instructions for Using Elevation Dimensions

The height difference H between the bottom plate elevation of the water pump room and the inlet elevation of the water tank (or water distribution channel), as well as the length h of the connecting rod, are considered in this design for four different scenarios, and the user unit will choose according to the actual situation. If the value of h can be specified when placing an order, manufacture according to the requirements of the ordering unit. If unable to provide, the length of the connecting rod shall be supplied at h=5000mm, and the flange at one end of the connecting rod shall be welded on site according to actual needs.
