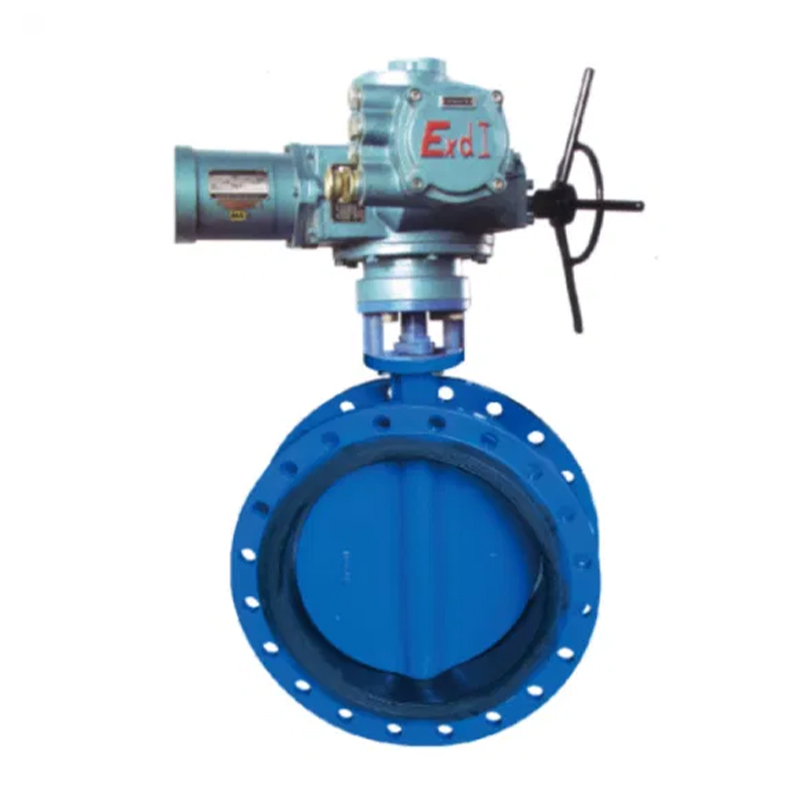

Main Features and Applications
MD mining explosion-proof electric butterfly valve is used for water pipelines such as coal mine fire protection and environmental purification. There are two types: split type and integrated type:
After being used in conjunction with the KXBC mining explosion-proof valve electric device control box, the split type electric butterfly valve can be connected to the DCS system to achieve
Automated control of gas pipelines;
The integrated electric butterfly valve comes with a control system, which can be switched on and off or remotely on the body, achieving remote switching or adjustment without the need for a separate control box.
Modbus, Profibus and other bus communication can be configured, with 485 bus interface to achieve data communication.
Execution Standards
| Design and Manufacturing | GB/T 12221-2005 GB/T 1222-2005 JB/T 12238-2008 | |
| Pipeline connection | GB9113.1~GB9113.4-2000 | |
| Inspection and testing | GB/T 13927-2008 JB/T9092-1999 | |
Main Technical Parameters
| Mine flameproof electric butterfly valve model | MD | |
| Mine electric butterfly valve is available in a variety of forms | Split type, one-piece type | |
| Optional function of electric butterfly valve for mining | Flameproof switch type, flameproof adjustment type | |
| Electric butterfly valve is suitable for medium and temperature | Water, oil; ≤120℃ | |
| Voltage | 380/660V | |
| Nominal diameter | DN50~DN1200 | |
| Nominal pressure | PN1.0MPa~PN1.6MPa | |

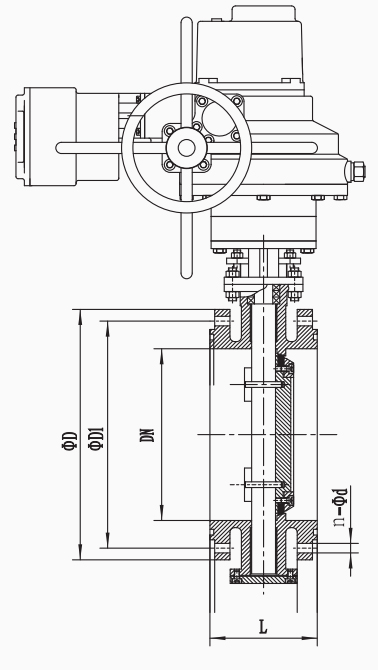

Structural Schematic Diagram
Selection Table for Connection Sizes and Related Mining Explosion-proof Valve Electric Devices
| Main dimensions of electric butterfly valve (mm) | Main parameters of mining explosion-proof electric device | |||||||||
| DN | L | PN10 | PN16 | Specification and model | Voltage(V) | Power(KW) | ||||
| φD | φD1 | n-φd | φD | φD1 | n-φd | |||||
| 50 | 108 | 165 | 125 | 4-18 | 165 | 125 | 4-18 | QMB9-0.85G Integration without the need for a separate control box QB/QBY10 |
127 | 0.04 |
| 380/660 | 0.18 | |||||||||
| 65 | 112 | 185 | 145 | 4-18 | 185 | 145 | 4-18 | QMB9-0.85G Integration without the need for a separate control box QB/QBY10 |
127 | 0.04 |
| 380/660 | 0.18 | |||||||||
| 80 | 114 | 200 | 160 | 8-18 | 200 | 160 | 8-18 | QMB15-0.6G Integration without the need for a separate control box QB/QBY20 |
127 | 0.04 |
| 380/660 | 0.18 | |||||||||
| 100 | 127 | 220 | 180 | 8-18 | 220 | 180 | 8-18 | QMB15-0.6G Integration without the need for a separate control box QB/QBY20 |
127 | 0.04 |
| 380/660 | 0.18 | |||||||||
| 125 | 140 | 250 | 210 | 8-18 | 250 | 210 | 8-18 | QMB25-0.6G Integration without the need for a separate control box QB/QYB20 |
127 | 0.06 |
| 380/660 | 0.18 | |||||||||
| 150 | 140 | 285 | 240 | 8-22 | 285 | 240 | 8-22 | QMB25-0.6G Integration without the need for a separate control box QB/QBY30 |
127 | 0.06 |
| 380/660 | 0.18 | |||||||||
| 200 | 152 | 340 | 295 | 8-22 | 340 | 295 | 12-22 | QB/QBY40 | 380/660 | 0.18 |
| 250 | 165 | 395 | 350 | 12-22 | 405 | 355 | 12-26 | QB/QBY90 | 380/660 | 0.25 |
| 300 | 178 | 445 | 400 | 12-22 | 460 | 410 | 12-26 | QB/QBY120 | 380/660 | 0.37 |
| 350 | 190 | 505 | 460 | 16-22 | 520 | 470 | 16-26 | ZB/ZBY15 | 380/660 | 0.37 |
| 400 | 216 | 565 | 515 | 16-26 | 580 | 525 | 16-30 | ZB/ZBY20 | 380/660 | 0.55 |
| 450 | 222 | 615 | 565 | 20-26 | 640 | 585 | 20-30 | ZB/ZBY20 | 380/660 | 0.55 |
| 500 | 229 | 670 | 620 | 20-26 | 715 | 650 | 20-33 | ZB/ZBY30 | 380/660 | 0.75 |
| 600 | 267 | 780 | 725 | 20-30 | 840 | 770 | 20-36 | ZB/ZBY45 | 380/660 | 1.1 |
| 700 | 292 | 895 | 840 | 24-30 | 910 | 840 | 24-36 | ZB/ZBY60 | 380/660 | 1.5 |
| 800 | 318 | 1015 | 950 | 24-33 | 1025 | 950 | 24-39 | ZB/ZBY60 | 380/660 | 1.5 |
| 900 | 330 | 1115 | 1050 | 28-33 | 1125 | 1050 | 28-39 | ZB/ZBY90 | 380/660 | 2.2 |
| 1000 | 410 | 1230 | 1160 | 28-33 | 1255 | 1170 | 28-39 | ZB/ZBY120 | 380/660 | 3 |
| 1200 | 470 | 1455 | 1380 | 32-33 | 1485 | 1390 | 32-39 | ZB/ZBY120 | 380/660 | 3 |
