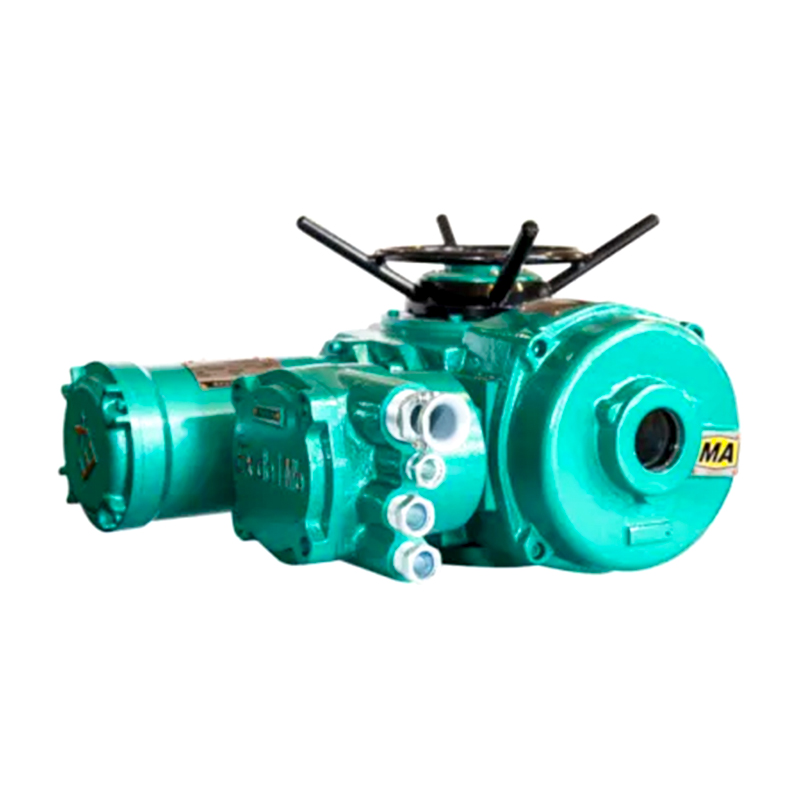

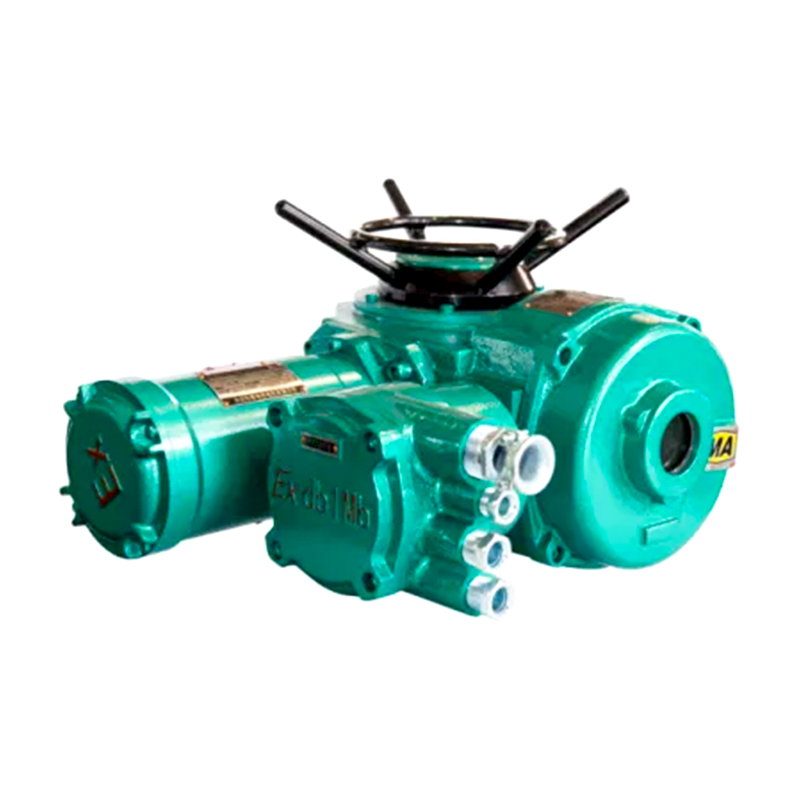

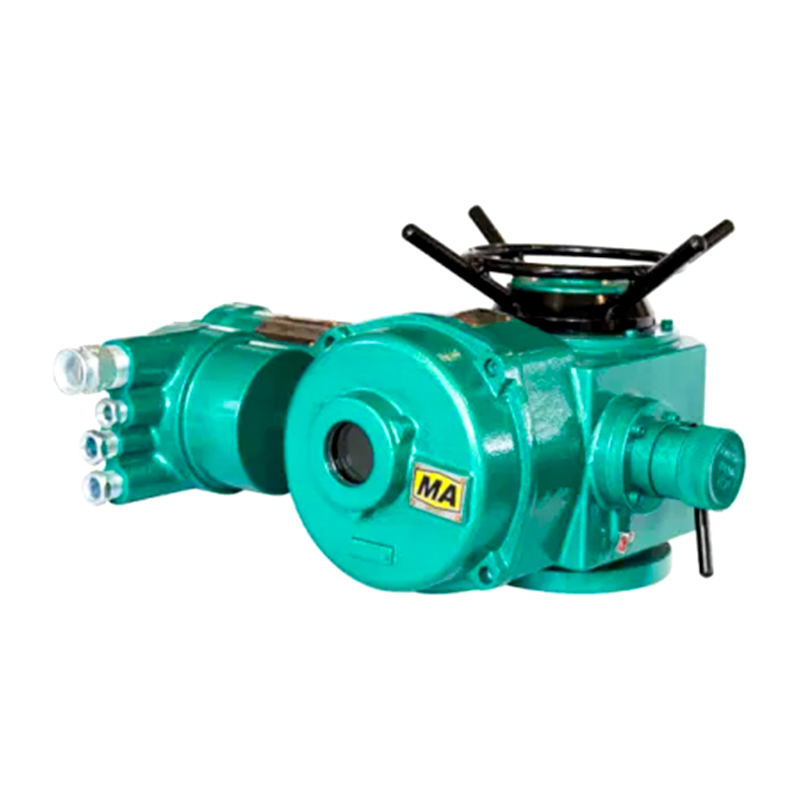

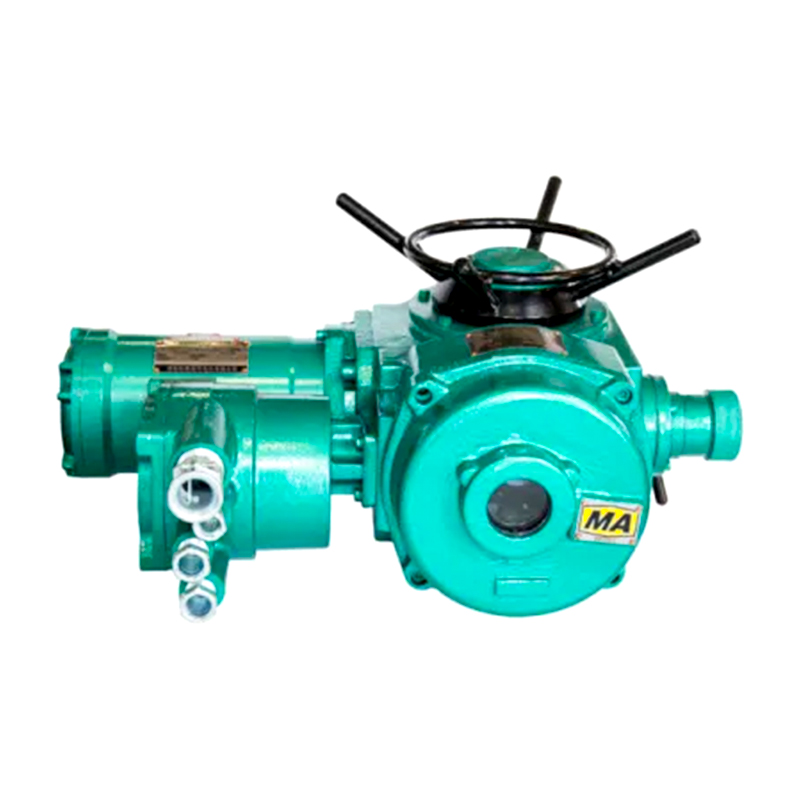

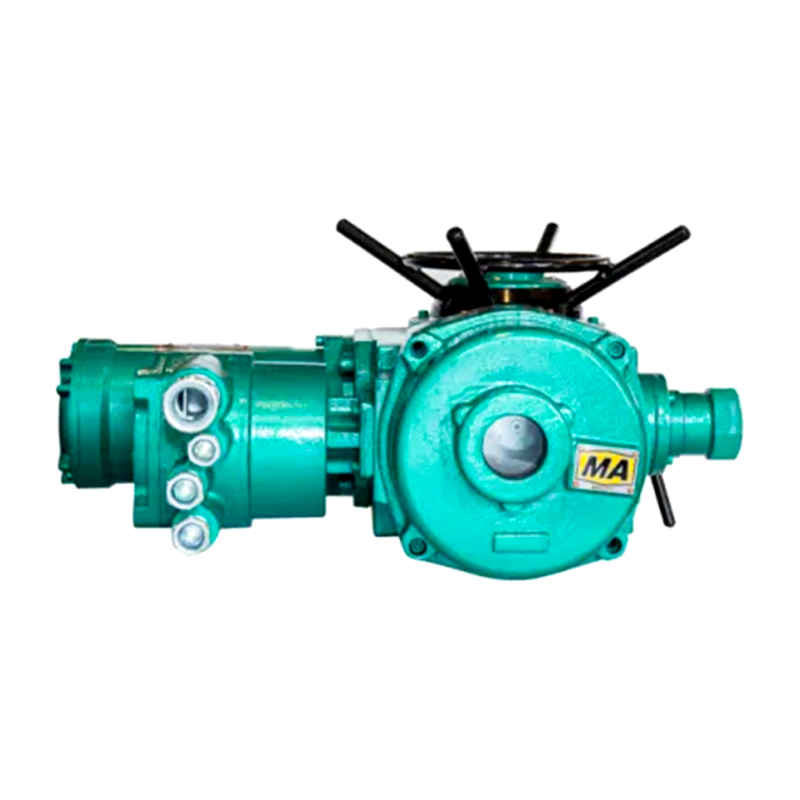

Main features and applications
The ZB series mining explosion-proof valve electric device is specially designed and manufactured for the use conditions in coal mines. Valves suitable for linear motion of valve plates, such as gate valves, distribution valves, and water gates; After adding a two-stage reduction gearbox, it can also be used for valves with a 90 degree rotation of the valve plate, such as butterfly valves, dampers, etc. After being matched with the KXBC mining explosion-proof valve electric device control box, it can be connected with the DCS system to achieve automation control.
Design and Manufacturing Standards for ZB Series Mining Explosion proof Valve Electric Device
Q/3204CN001-2011 | Technical Conditions for Mine Flameproof Valve Electric Device |
GB3836.1-2010 | Electrical Equipment for Explosive Atmospheres Part 1: General Requirements |
GB3836.2-2010 | Electrical Equipment for Explosive Atmospheres Part 2: Flameproof Type "D" |

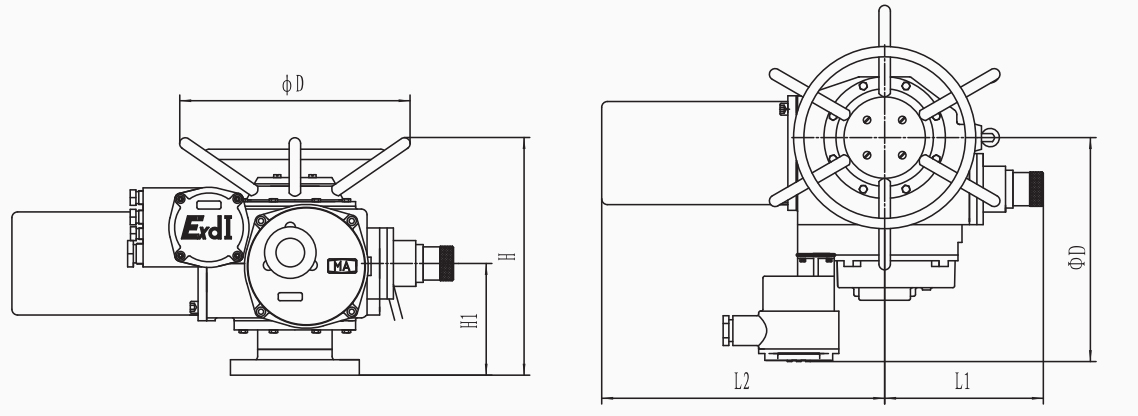

Outline and Dimensions Table
Model | H | H1 | L1 | L2 | F | ΦD |
ZB10/ZB15/ZB20/ZB30 | 320 | 130 | 200 | 295-400 | 320 | 350 |
ZB45/ZB60 | 415 | 195 | 280 | 395-545 | 395 | 470 |
ZB90/ZB120 | 455 | 195 | 285 | 412-565 | 430 | 500 |
ZB180/ZB250/ZB350 | 585 | 250 | 320 | 475-700 | 480 | 320 |
ZB/ZBY Model Specifications and Main Performance Parameters
Model specifications | Nominal torque (N ·m) |
Maximum stem diameter (mm) |
Maximum number of turns (turns) |
Manual speed ratio | Output speed (r/min) |
Motor power (kw) |
Motor current (A) |
Reference weight (Kg) |
|
660V | 380V | ||||||||
ZB/ZBY10 | 100 | 28 | 400 | 1:1 | 24 | 0.25 | 0.75 | 1.3 | 64 |
ZB/ZBY15 | 150 | 28 | 400 | 1:1 | 24 | 0.37 | 0.92 | 1.6 | 65 |
ZB/ZBY20 | 200 | 40 | 400 | 1:1 | 24 | 0.55 | 1.4 | 2.4 | 67 |
ZB/ZBY30 | 300 | 40 | 400 | 1:1 | 24 | 0.75 | 1.8 | 3.0 | 69 |
ZB/ZBY45 | 450 | 48 | 400 | 1:1 | 24 | 1.1 | 1.9 | 3.4 | 114 |
ZB/ZBY60 | 600 | 48 | 400 | 1:1 | 24 | 1.5 | 2.6 | 4.5 | 120 |
ZB/ZBY90 | 900 | 60 | 400 | 1:1 | 24 | 2.2 | 3.8 | 6.5 | 144 |
ZB/ZBY120 | 1200 | 60 | 400 | 1:1 | 24 | 3 | 4.7 | 8.2 | 147 |
ZB180 | 1800 | 70 | 400 | 22.5:1 | 24 | 5.5 | 7.5 | 13 | 264 |
ZB250 | 2500 | 70 | 400 | 22.5:1 | 24 | 7.5 | 9.5 | 16.5 | 269 |
ZB350 | 3500 | 75 | 400 | 22.5:1 | 24 | 11 | 12.1 | 21 | 275 |
Note: Other speeds can be provided to meet user needs.

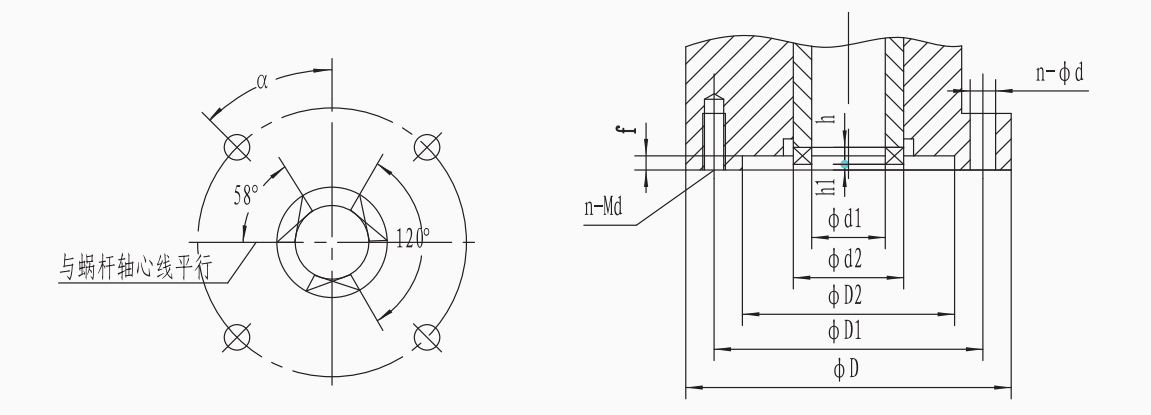

Structural Schematic Diagram and Dimensions of ZB/ZBY and Valve Connection
Model | Torque type JB2920 | |||||||||||
Flange number | D | D1 | D2 (H9) |
h1 | f | h | d1 | d2 | d | n | α | |
ZB/ZBY10/15 | 2 | 145 | 120 | 90 | 2 | 4 | 8 | 30 | 45 | M10 | 4 | 45° |
ZB/ZBY20/30 | 3 | 185 | 160 | 125 | 10 | 42 | 58 | M12 | ||||
ZB/ZBY45/60 | 4 | 225 | 195 | 150 | 5 | 12 | 50 | 72 | Φ18 | |||
ZB/ZBY90/120 | 5 | 275 | 235 | 180 | 14 | 62 | 82 | Φ22 | ||||
ZB180/250 | 7 | 330 | 285 | 220 | 3 | 6 | 16 | 72 | 98 | Φ26 | ||
ZB350 | 8 | 380 | 340 | 280 | 20 | 83 | 118 | Φ22 | 8 | 22.5° |
