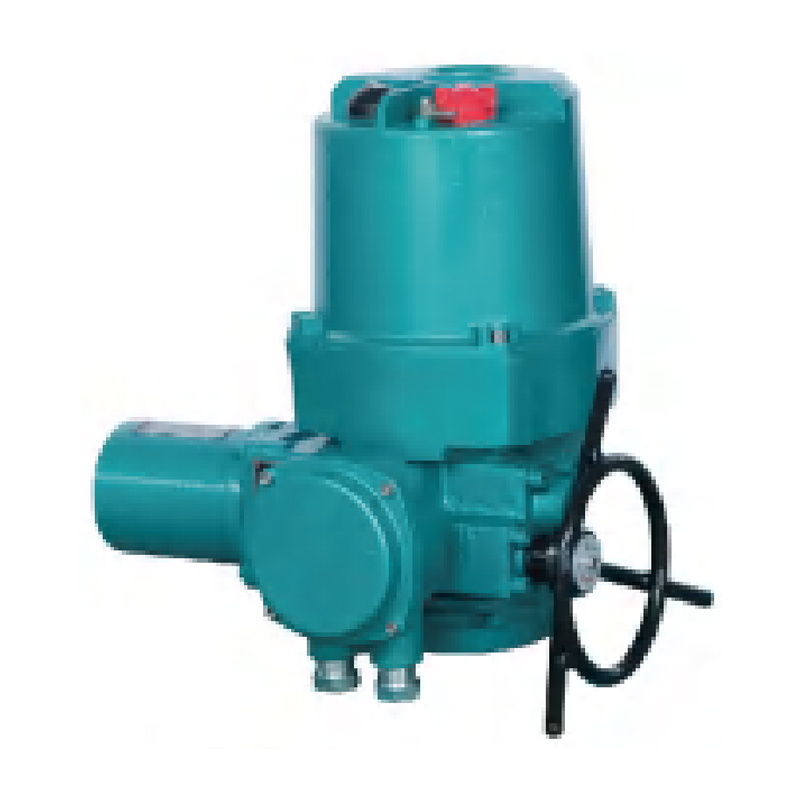

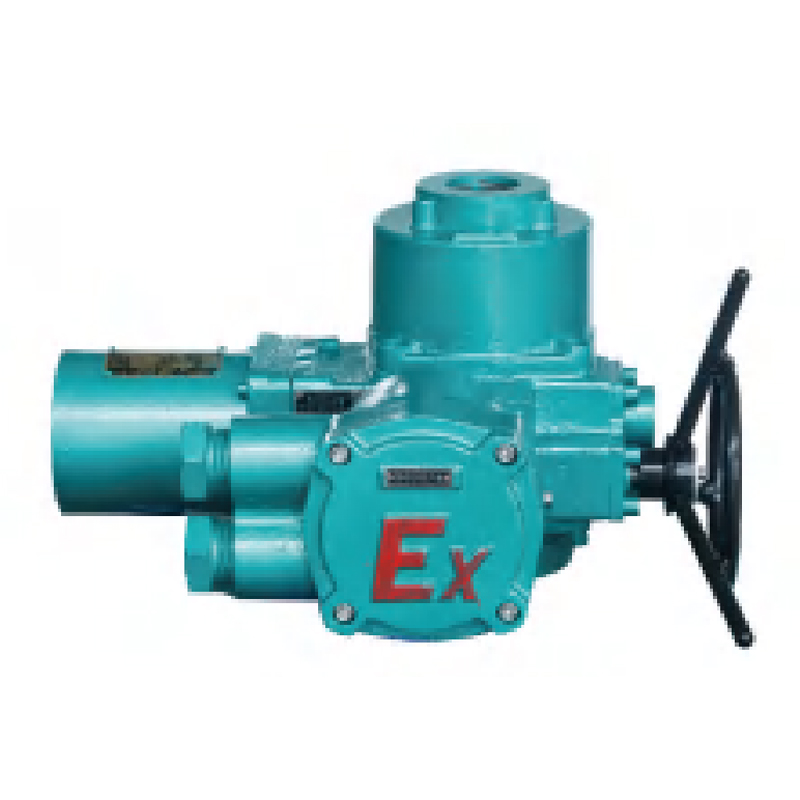

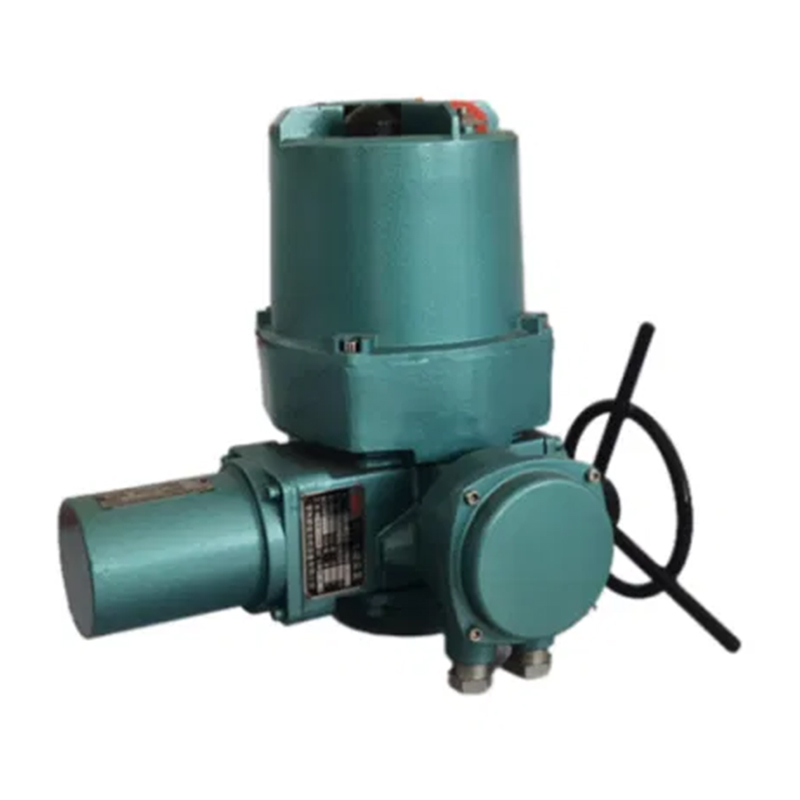

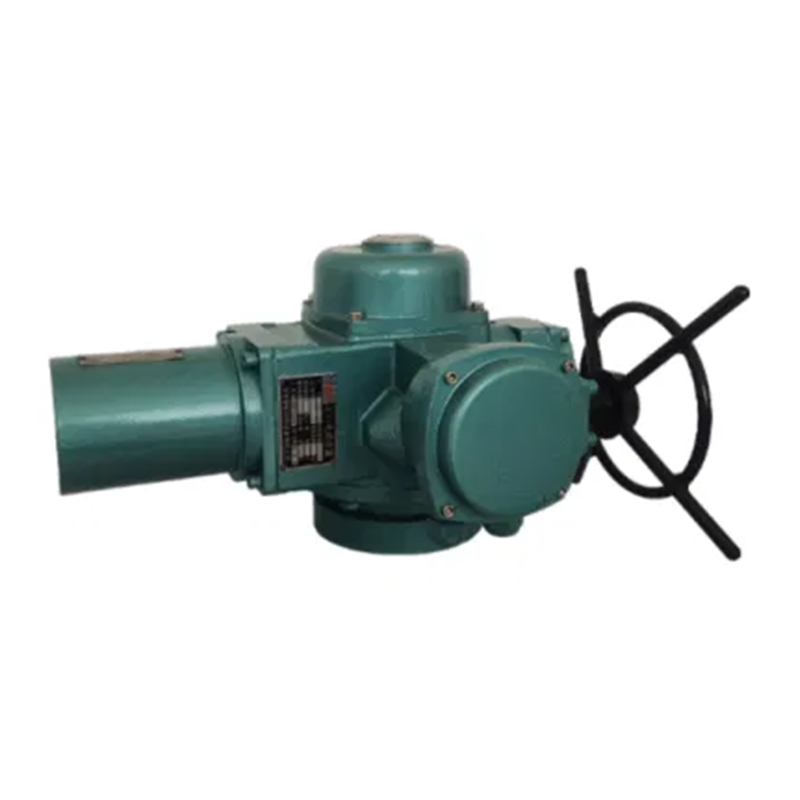

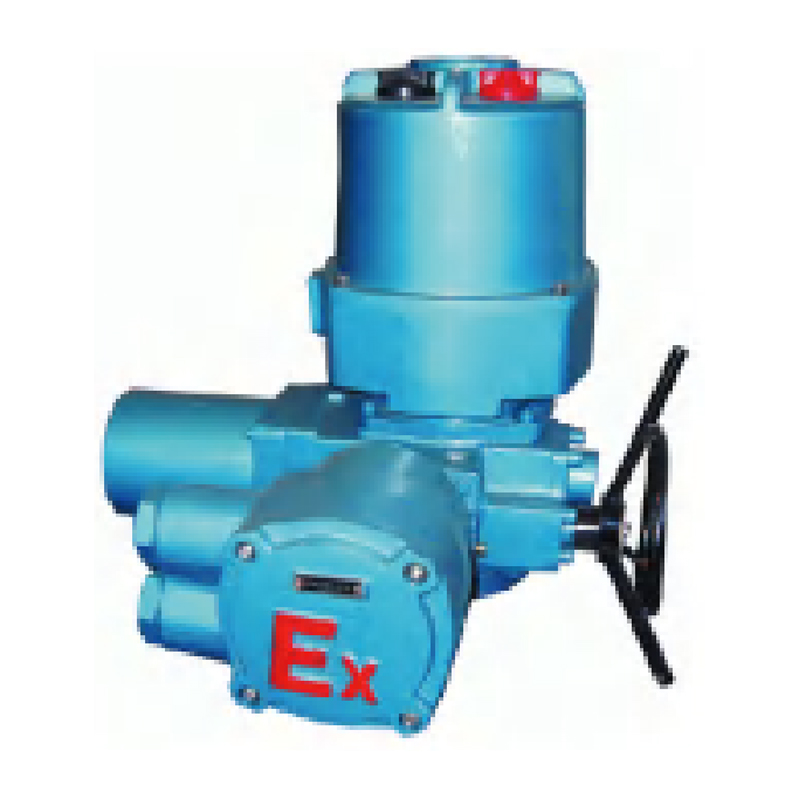

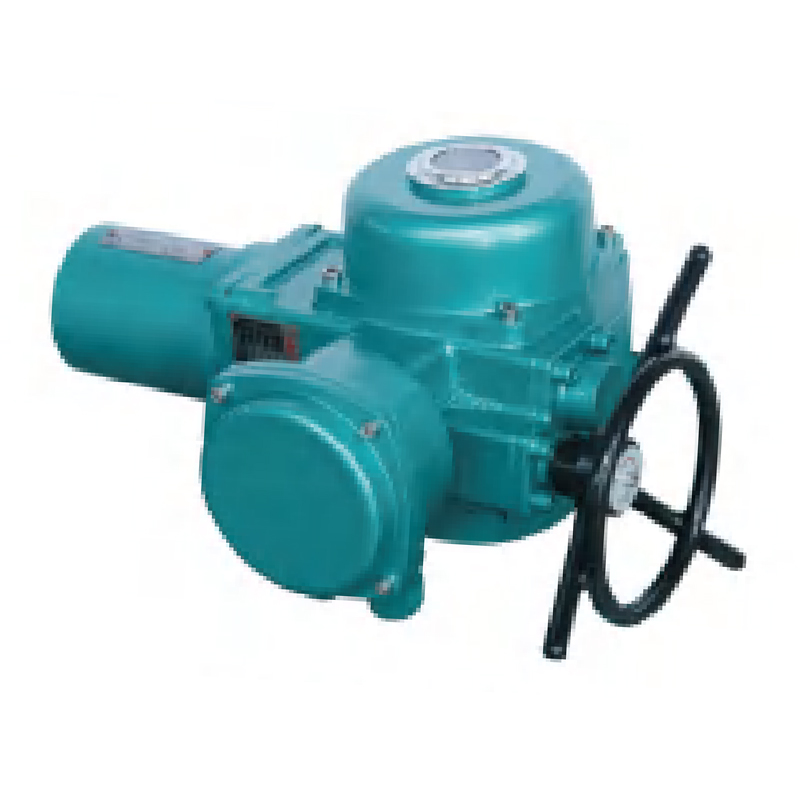

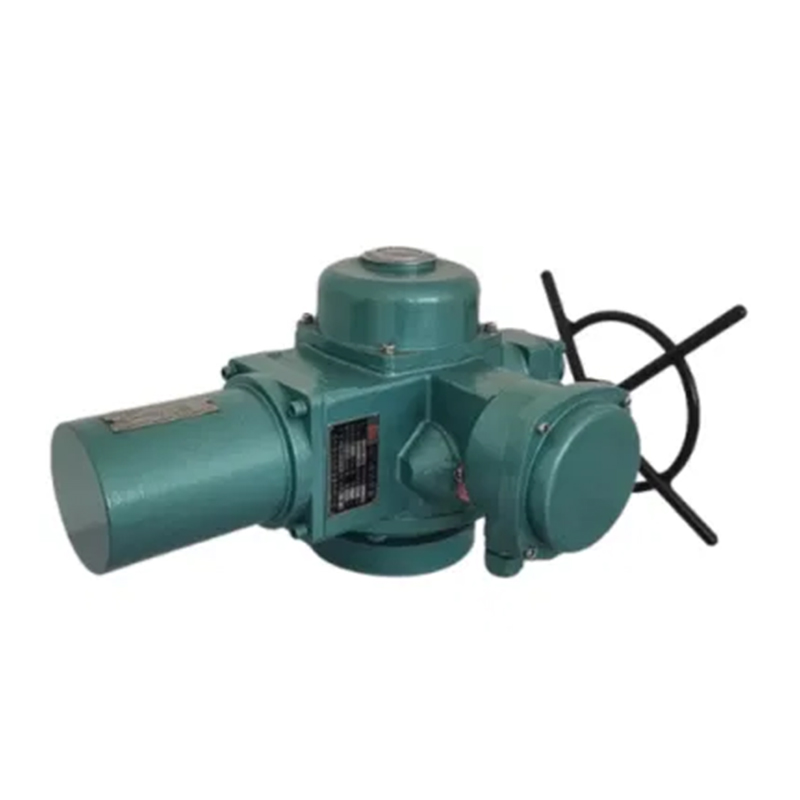

Model Specifications and Main Performance Parameters
Model | Output torque(N.m) | Maximum stem diameter(mm) | Manual speed ratio | Output speed(r/min) | Reference weight(kg) | ||||||||||
0.5 | 1 | 1.5 | 2 | 3 | 4 | ||||||||||
Motor power ( K W ) | |||||||||||||||
Q10 | 100 | 28 | 88 | 0.03 | 0.06 | 0.09 | 0.09 | 0.18 | 0.18 | 30 | |||||
Q20 | 200 | 28 | 88 | 0.06 | 0.09 | 0.12 | 0.12 | 0.25 | 0.25 | 30 | |||||
Q30 | 300 | 28 | 88 | 0.06 | 0.12 | 0.18 | 0.18 | 0.37 | 0.37 | 35 | |||||
Q40 | 400 | 28 | 88 | 0.09 | 0.18 | 0.25 | 0.25 | - | - | 38 | |||||
Q60 | 600 | 42 | 74 | 0.18 | 0.18 | 0.25 | 0.25 | 0.55 | 0.55 | 65 | |||||
Q90 | 900 | 42 | 74 | 0.18 | 0.25 | 0.37 | 0.37 | 0.75 | 0.75 | 70 | |||||
Q120 | 1200 | 42 | 74 | 0.18 | 0.37 | 0.55 | 0.55 | 1.1 | 1.1 | 75 | |||||
Q200 | 2000 | 60 | 67 | 0.37 | 0.55 | 0.75 | 1.1 | - | - | 100 | |||||
Q250 | 2500 | 60 | 67 | 0.55 | 0.55 | 0.75 | 1.1 | - | - | 100 | |||||
Q300 | 3000 | 60 | 67 | 0.55 | 0.75 | 1.1 | - | - | - | 100 | |||||
Q400 | 4000 | 60 | 67 | 0.55 | 0.75 | - | - | - | - | 100 | |||||
Q500 | 5000 | 60 | 67 | 0.75 | 1.1 | - | - | - | - | 105 |
Note: with _ is for regular supply

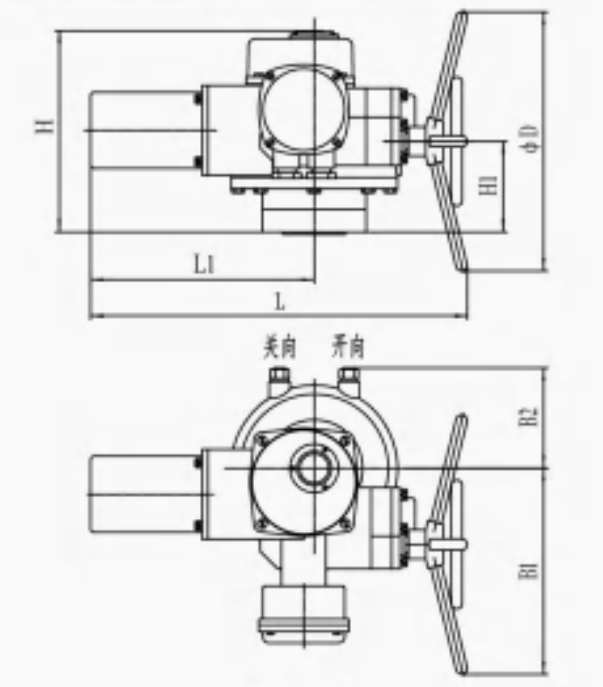

Appearance and Dimensions
Model | B1 | B2 | H1 | H2 | L | L1 | φD |
Q10-40 | 210 | 100 | 230 | 390 | 480 | 260 | 200 |
Q10~40B | 315 | 100 | 265 | 445 | 530 | 310 | 200 |
Q60~120 | 255 | 145 | 295 | 455 | 550 | 325 | 75 |
Q60~120B | 360 | 145 | 340 | 510 | 585 | 365 | 375 |
Q200~500 | 285 | 180 | 315 | 460 | 665 | 390 | 510 |
Q200~500B | 390 | 180 | 350 | 495 | 665 | 390 | 510 |
Note: QB is a flameproof type (ordinary flameproof type, integral flameproof type)
H1 is a regular type (regular outdoor type, regular explosion-proof type)
H2 is a whole body type (whole outdoor type, whole explosion-proof type)

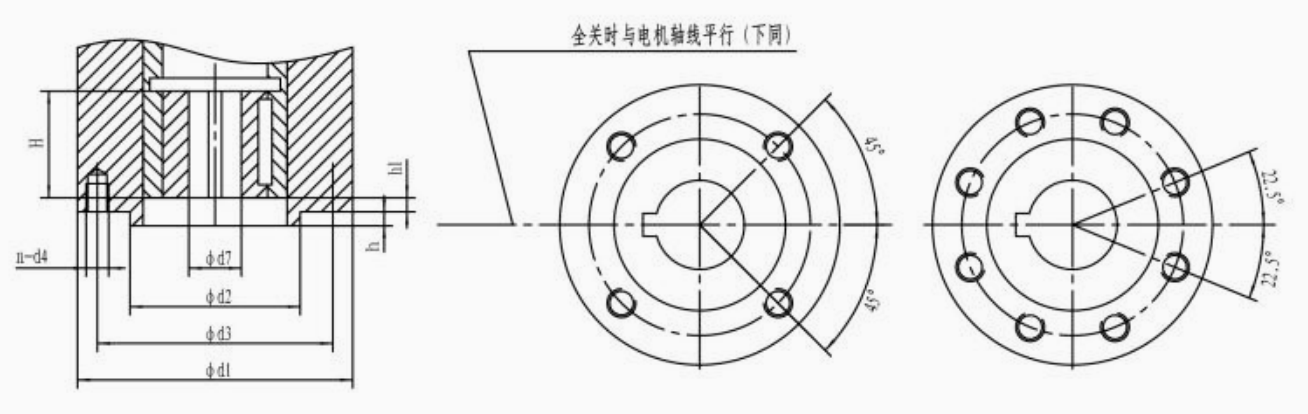

Schematic Diagram of Q-Type Rotating Flange Structure
Connection Size
Flange number | Electric installation model | d1 | d2(f8) | d3 | n-d4 | d7 | H | h | h1 | |
Factory production | Maximum | |||||||||
F05 | Q10 | 65 | 35 | 50 | 4-M6 | / | 22 | 40 | 3 | 3 |
F07 | Q20 | 90 | 55 | 70 | 4-M8 | / | 28 | 45 | 3 | 3 |
F10 | Q30 | 125 | 70 | 102 | 4-M10 | / | 28 | 45 | 3 | 3 |
Q40 | ||||||||||
Q60 | / | 42 | 65 | |||||||
F12 | Q90 | 150 | 85 | 125 | 4-M12 | / | 42 | 65 | 3 | 3 |
F14 | Q120 | 175 | 100 | 40 | 4-M16 | / | 42 | 65 | 3 | 3 |
Q200 | 60 Key 18 |
60 | 80 | 2 | ||||||
Q250 | ||||||||||
F16 | Q300 | 210 | 130 | 165 | 4-M20 | 60 Key 18 |
60 | 80 | 3 | 2 |
Q400 | ||||||||||
Q500 | ||||||||||
F25 | Q500 | 300 | 200 | 254 | 8-M16 | 60 Key 18 |
60 | 100 | 3 | 2 |
Note: The connection size can be customized according to user requirements.
