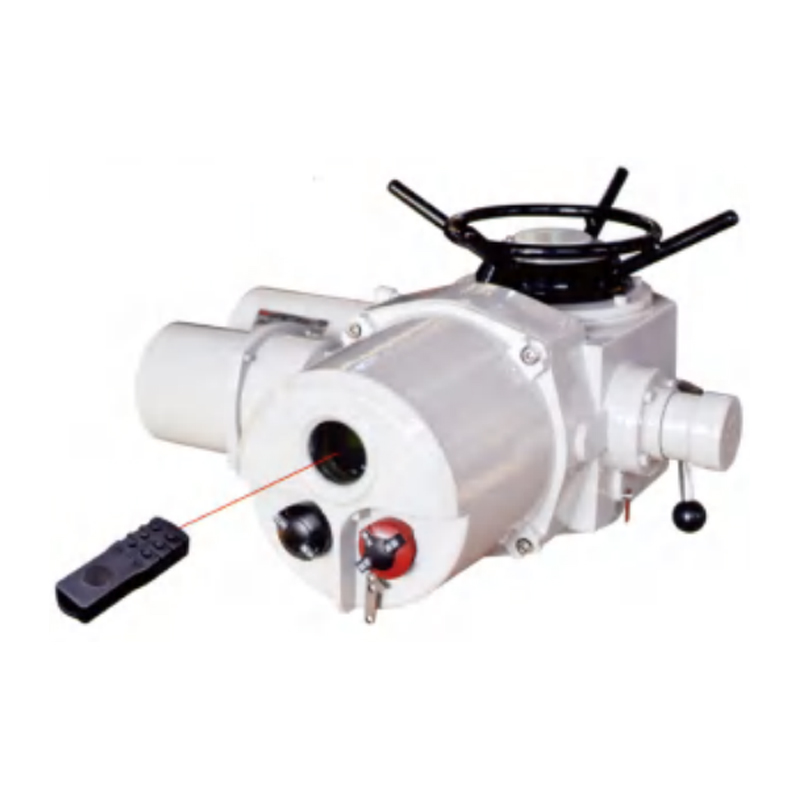

Model Specifications and Main Performance Parameters
Model specifications |
Nominal torque (N.m) |
Nominal thrust (KN) |
Maximum stem diameter (mm) |
Maximum number of turns (turns) |
Manual speed ratio |
Output speed (r/min) |
Motor power (KW) |
Reference weight (Kg) |
CND-Z5(T) | 50 | 20 | 28 | 60 | 1:1 | 12 | 0.12 | 28 |
CND-Z10(T) | 100 | 40 | 28 | 60 | 1:1 | 24/36 | 0.25/0.37 | 45 |
CND-Z15(T) | 150 | 24/36 | 0.37/0.55 | 50 | ||||
CND-Z20(T) | 200 | 100 | 40 | 60 | 1:1 | 18/24 | 0.37/0.55 | 55 |
CND-Z30(T) | 300 | 18/24 | 0.55/0.75 | 58 | ||||
CND-Z45(T) | 450 | 150 | 48 | 120 | 1:1 (20:1) |
24/36 | 1.1/1.5 | 110 |
CND-Z60(T) | 600 | 24/36 | 1.5/2.2 | 120 | ||||
CND-Z90(T) | 900 | 200 | 60 | 120 | 1:1 (25:1) |
24/36 | 2.2/3 | 139 |
CND-Z120(T) | 1200 | 24/36 | 3/4 | 142 | ||||
CND-Z180(T) | 1800 | 325 | 70 | 150 | 22.5:1 | 18/24 | 4/5.5 | 250 |
CND-Z250(T) | 2500 | 18/24 | 5.5/7.5 | 255 | ||||
CND-Z350(T) | 3500 | 700 | 80 | 150 | 20:1 | 18/24 | 7.5/10 | 330 |
CND-Z500(T) | 5000 | 18/24 | 10/15 | 350 |
Note 1: Other speeds can be provided according to user requirements: 12/18/24/30/36/42/48/60 (r/min)
Note 2: When the product provides a four layer counter, the maximum number of rotations is 10 times the number of rotations listed in Table 1
Note 3: T indicates intelligent adjustment type, without T indicates intelligent switch type

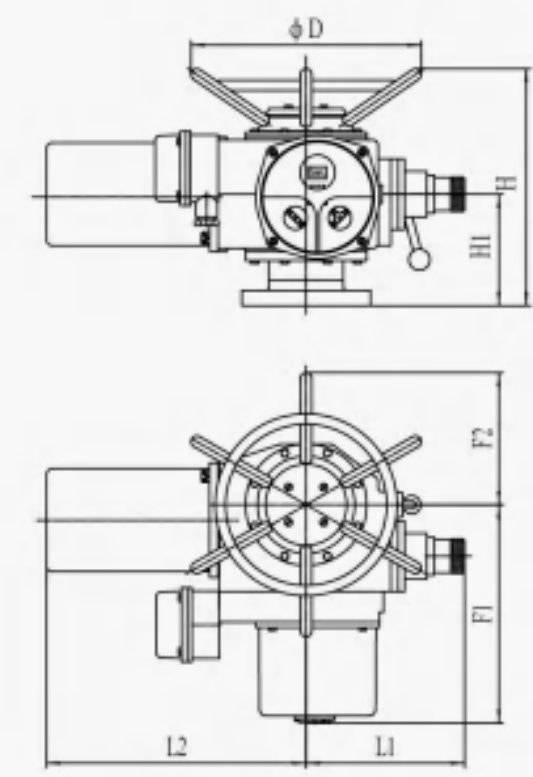

Appearance and Dimensions
Model | H | H1 | L1 | L2 | F1 | F2 | ΦD |
CND-Z5(T) | 230 | 95 | 140 | 250 | 335 | 120 | 170 |
CND-Z10 ~Z30(T) | 320 | 130 | 200 | 315 | 375 | 175 | 350 |
CND-Z45~Z60(T) | 415 | 195 | 280 | 430 | 395 | 235 | 470 |
CND-Z90~Z120(T) | 455 | 195 | 285 | 490 | 430 | 250 | 500 |
CND-Z180~Z250(T) | 585 | 250 | 320 | 530 | 480 | 295 | 320 |
CND-Z350~Z500(T) | 720 | 280 | 400 | 1080 | 545 | 440 | 565 |
