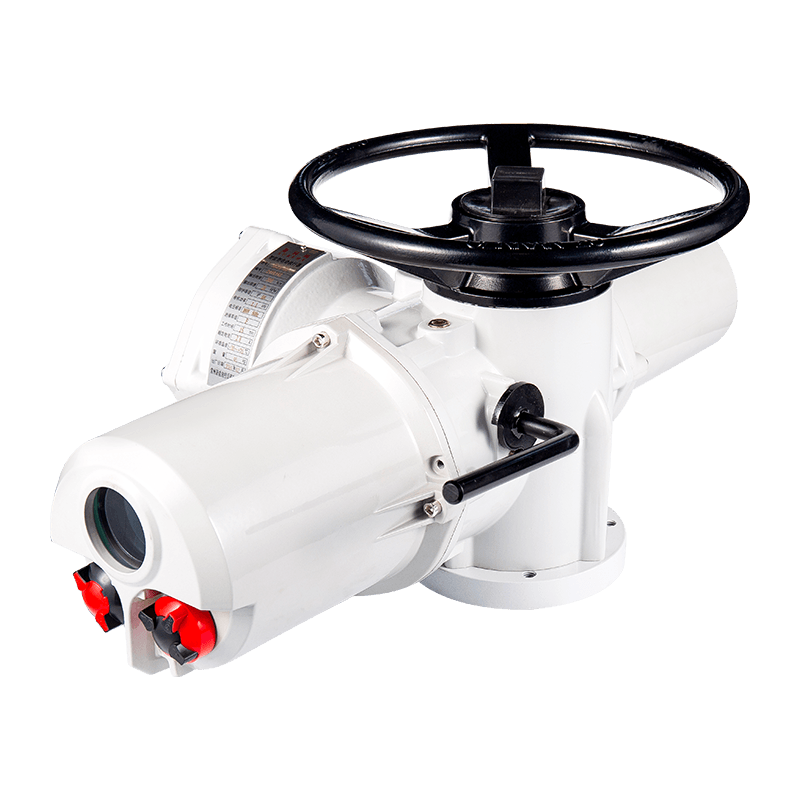

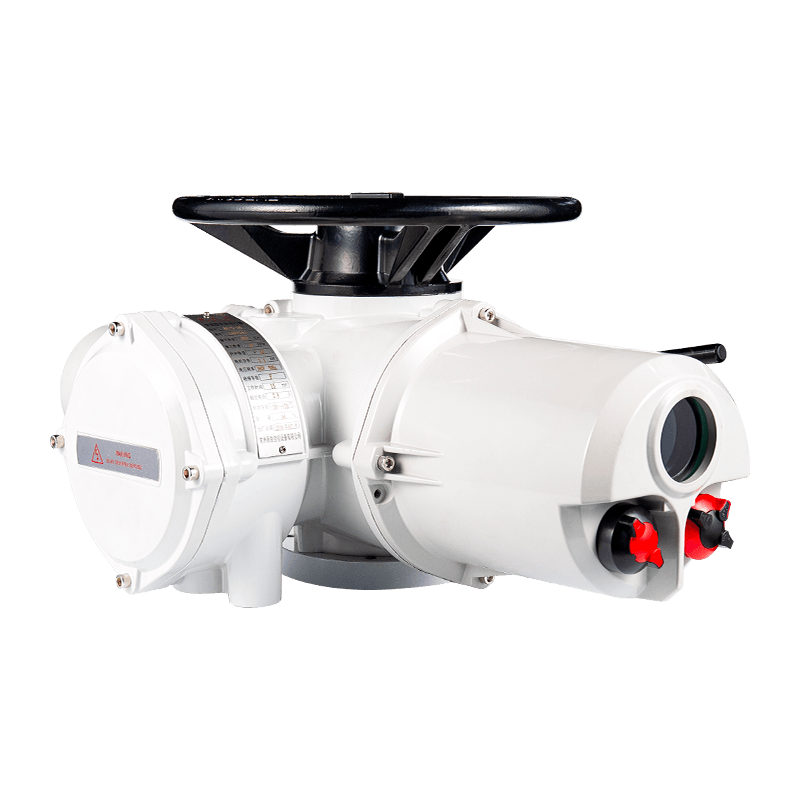

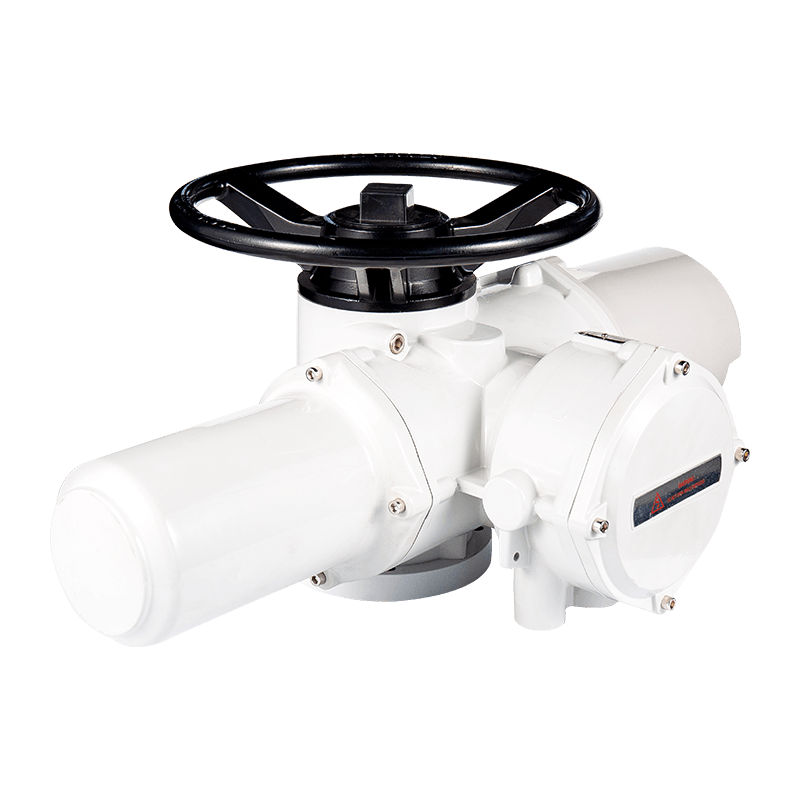

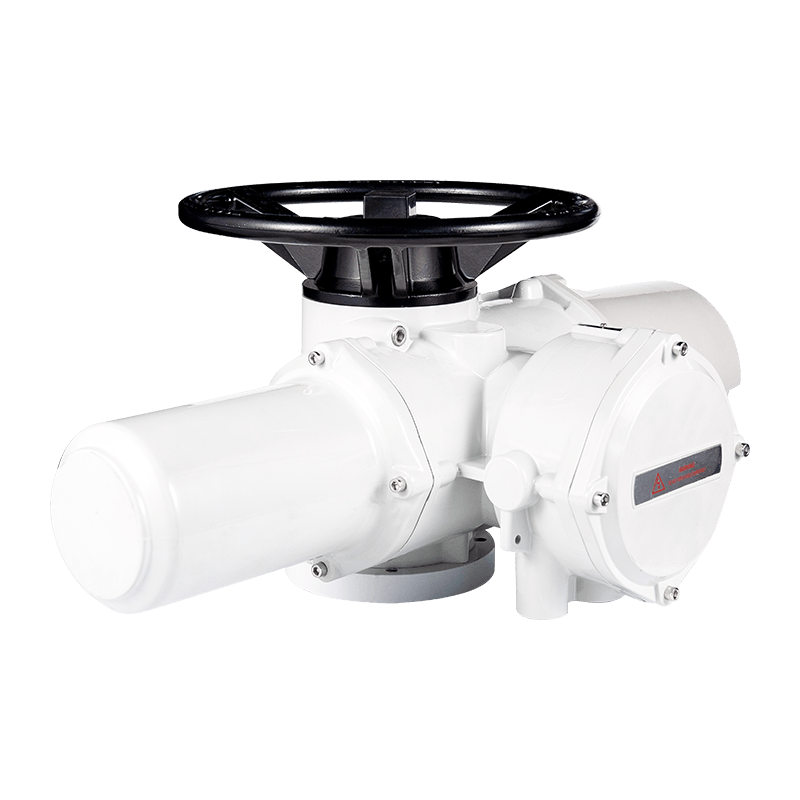

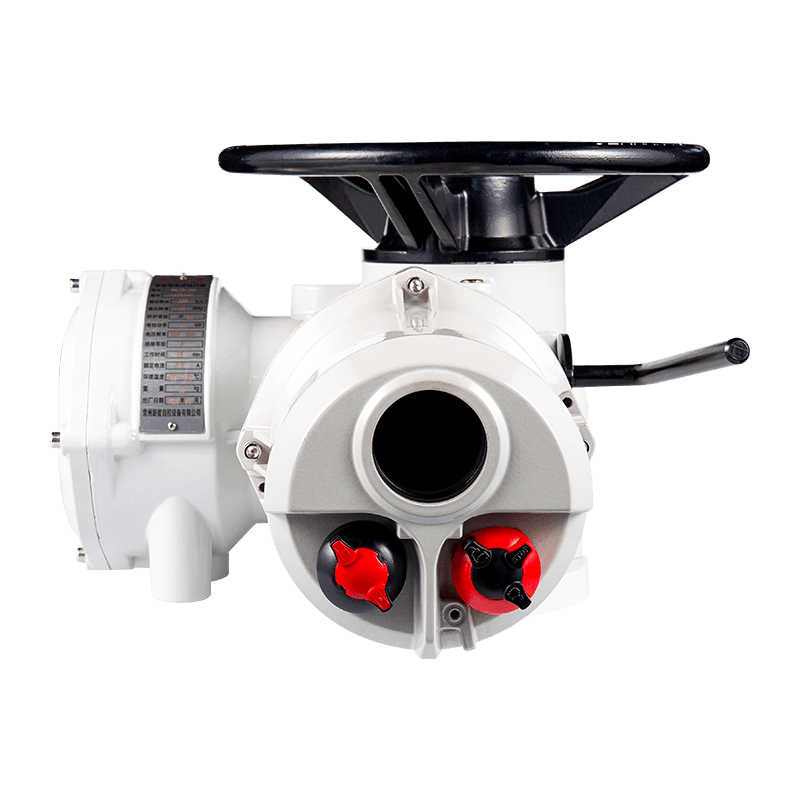

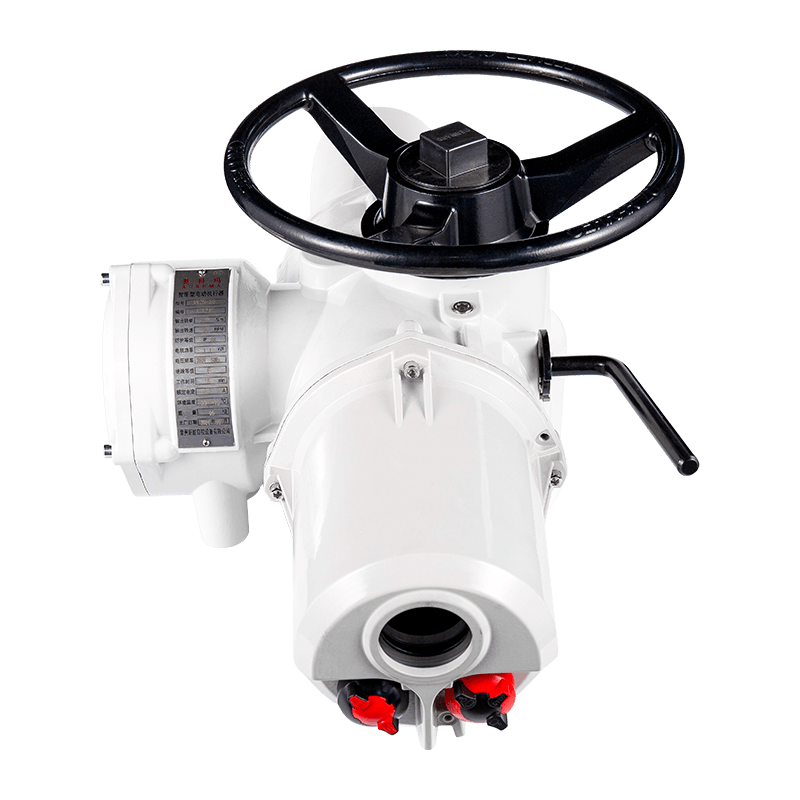

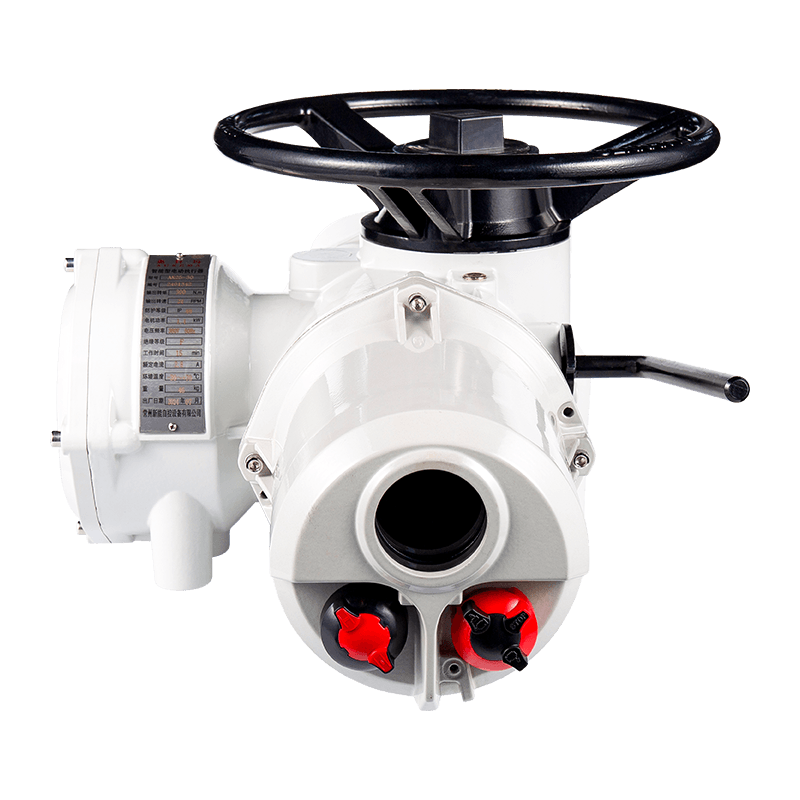

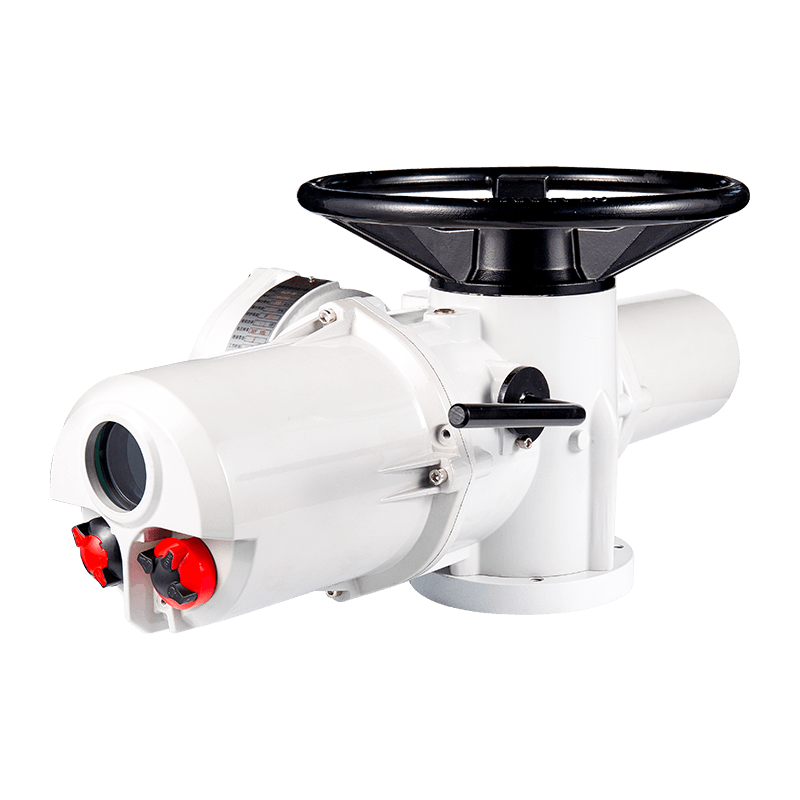

AK, AKZ Multi Turn Intelligent Electric Actuator

The AUKEMA rotary intelligent electric actuator has two control types: AK intelligent switch type and AKM intelligent adjustment type. Suitable for controlling globe valves, gate valves, throttle valves, water gate valves and other valves, it is a new generation of valve control experts.

Get A Quote

AK, AKZ Three-Phase Performance Data

Model	Output torque(Nm)	Output speed(rpm)	Supply voltage(V)	Power phase number(Ph)	Frequency(HZ)	Nominal power(KW)	Rated current(A)	Reference weight(KG)
AK18	100	18	380	3	50	0.25	0.76	30
		24	380	3	50	0.25	0.76
		36	380	3	50	0.37	1.07
		48	380	3	50	0.37	1.07
	150	18	380	3	50	0.37	1.07
		24	380	3	50	0.37	1.07
		36	380	3	50	0.55	1.54
		48	380	3	50	0.55	1.54
AK25	200	18	380	3	50	0.55	1.54	46
		24	380	3	50	0.75	1.99
		36	380	3	50	1.1	2.8
		48	380	3	50	1.1	2.8
	300	18	380	3	50	0.75	1.99
		24	380	3	50	1.1	2.8
		36	380	3	50	1.5	3.65
		48	380	3	50	1.5	3.65
AK35	500	18	380	3	50	1.5	3.65	69
		24	380	3	50	1.5	3.65
		36	380	3	50	2.2	5.05
		48	380	3	50	2.2	5.05
	600	18	380	3	50	1.5	3.65
		24	380	3	50	1.5	3.65
		36	380	3	50	2.2	5.05
		48	380	3	50	2.2	5.05
AK40	900	18	380	3	50	2.2	5.05	190
		24	380	3	50	2.2	5.05
		36	380	3	50	3	6.64
	1200	18	380	3	50	2.2	5.05
		24	380	3	50	3	6.64
		36	380	3	50	4	8.62
AK70	1800	18	380	3	50	4	8.62	200
		24	380	3	50	4	8.62
		36	380	3	50	5.5	11.5
AK90	2500	18	380	3	50	4	8.62	203
		24	380	3	50	5.5	11.5
		36	380	3	50	7.5	15.3
AK95	3000	18	380	3	50	5.5	11.5	205
		24	380	3	50	7.5	15.3
		36	380	3	50	10	19.5

AKS Single-Phase Actuator Performance Data

Model	Output torque(Nm)	Output speed(rpm)	Supply voltage(V)	Power phase number(Ph)	Frequency(HZ)	Nominal power(KW)	Rated current(A)	Reference weight(KG)
AKS18	100	18	220	2	50	0.2	1.7	30
		24	220	2	50	0.2	1.7
		36	220	2	50	0.2	1.7
	150	18	220	2	50	0.2	1.7
		24	220	2	50	0.2	1.7
		36	220	2	50	0.2	1.7
AKS25	200	18	220	2	50	0.9	6.5	46
		24	220	2	50	0.9	6.5
		36	220	2	50	0.9	6.5
	300	18	220	2	50	1.1	7
		24	220	2	50	1.1	7.7
		36	220	2	50	1.1	7.7

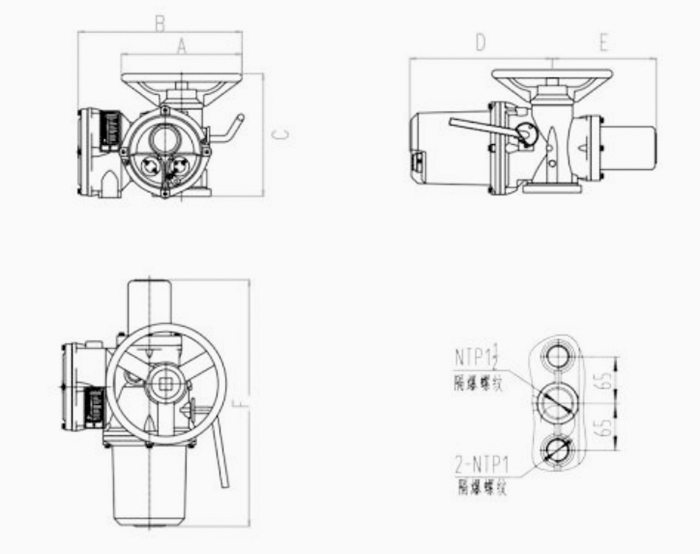

AK, AKZ Actuator External Dimensions

AK18-40 Type

Actuator parameters \ actuator specifications	A	B	C	D	E	F
AK18	320	425	305	360	270	630
AK25	360	460	330	395	355	750
AK35	420	515	365	400	360	760
AK40	850	785	480	510	480	990

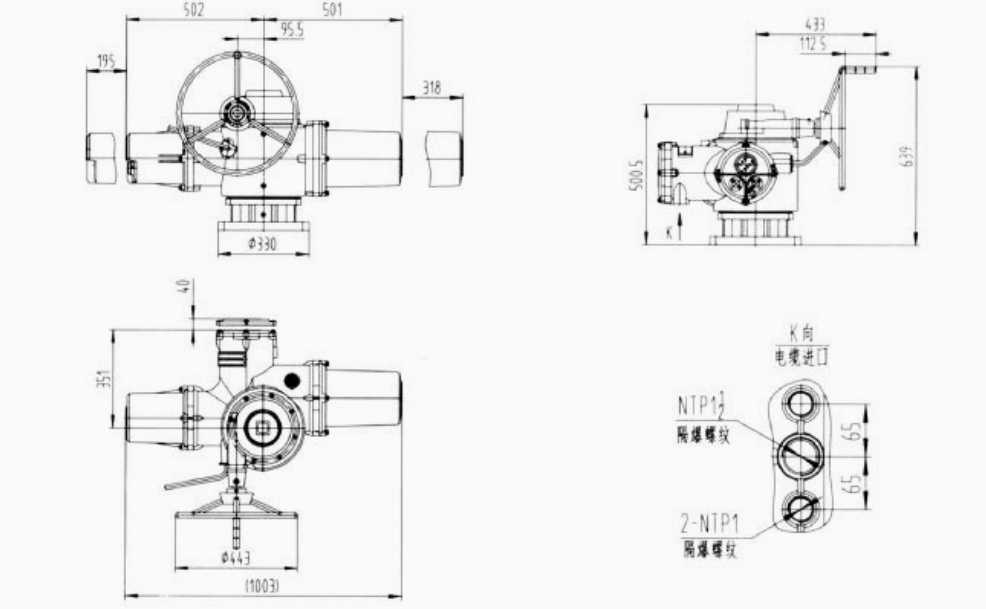

AK70-95 Type

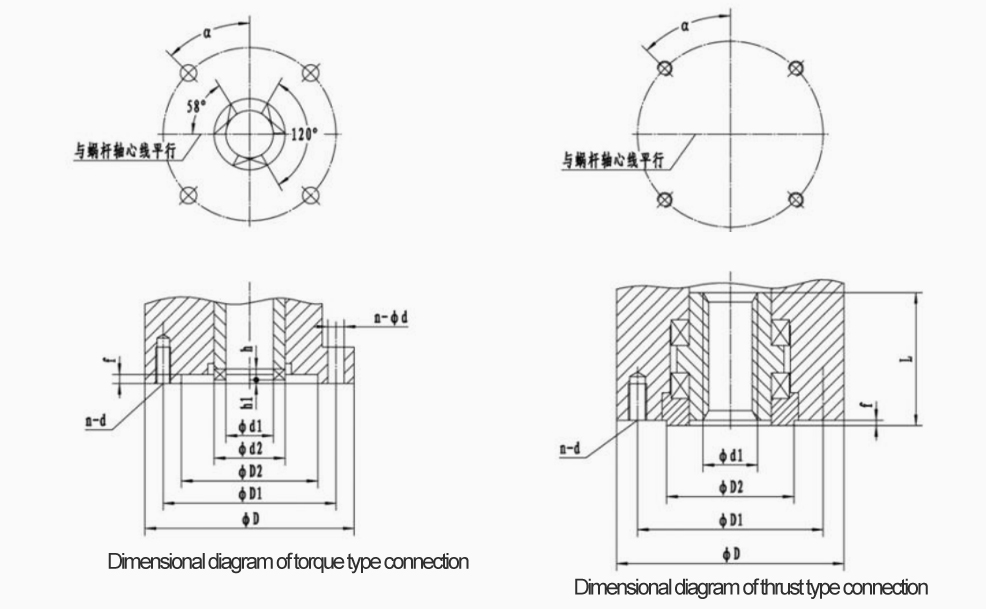

AK, AKZ Actuator Flange Size

Torque Type Connection Size(JB2920)

Actuator parameters \ actuator specifications	D	D1	D2	di	d2	d	h	hi	f	b
AK18	φ145	Φ120	φ90	φ30	φ45	4-M10	11.5	2	5	23.5
AK25	φ185	φ160	φ125	φ42	φ58	4-M12	10.5	2	5	25
AK35	φ225	φ195	φ150	φ50	φ72	4-M16	14	2	5	24
AK40	φ275	φ235	φ180	φ62	φ82	4-φ22	14	2	5	21
AK70-95	φ330	φ285	φ220	φ72	φ98	4-φ26	16	2	6	30

Push Type Connection Size(GB12222)

Actuator parameters \ actuator specifications	Flange number	D	D1	D2(f8)	f	d(max)	d	L	n	α
AK18	F10	125	102	70	3	T28	M10	40	4	45°
AK25	F14	175	140	100	4	T36	M16	55
AK35	F16	210	165	130	5	T44	M20	70
AK40	F25	300	254	200		T60	M16	90	8	22.5°
AK70-95	F30	350	298	230		T70	M20	110	8	22.5°

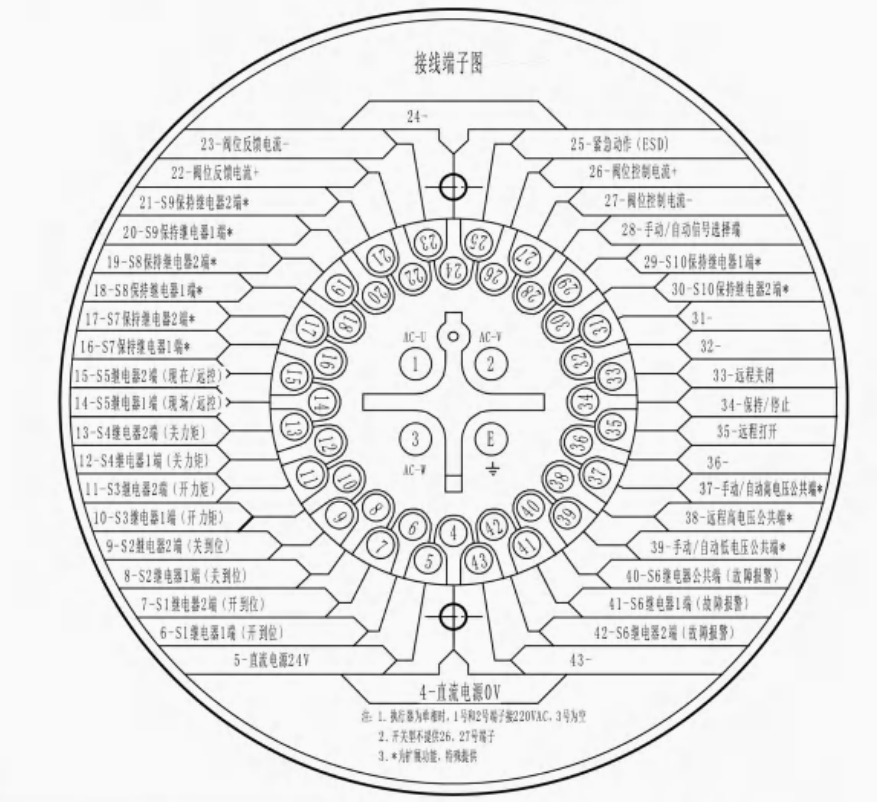

Comparison Chart of AK and AKZ Wiring Terminals

Terminal block serial number	Terminal block definition	Terminal block serial number	Name of the terminal block	Terminal block serial number	Name of the terminal block
	Grounding Character (Grounding)	16	S7 Hold Relay 1 End*	31
1	380VAC1**	17	S7 Hold Relay 2*	32
2	380VAC2**	18	S8 Hold Relay 1 End*	33	Remote shutdown
3	380VAC3**	19	S8 Hold Relay 2 Terminals*	34	Hold/Stop
4	DC power supply 0V (24V DC power supply "-" output)	20	S9 Hold Relay 1 End*	35	Open remotely
4	DC power supply 0V (24V DC power supply "-" output)	21	S9 Hold Relay 2 Terminals*	36
5	DC power supply 24V (24V DC power supply "+" output)	22	4-20mA valve position feedback current output+	37	Manual/Automatic High Voltage Common Side*
5	DC power supply 24V (24V DC power supply "+" output)	23	4-20mA Valve Position Feedback Current Output-	38	Remote High Voltage Commons*
6	S1 relay end 1 (open in place)	24		39	Manual/Automatic Low Voltage Common Side*
7	S1 relay 2 ends (open in place)	25	Emergency Action (ESD)	40	S6 relay common terminal (fault alarm)
8	S2 relay 1 end (off in place)	26	4-20mA valve position control current input+	41	S6 relay end 1 (fault alarm)
9	S2 relay 2 ends (off in place)	27	4-20mA Valve Position Control Current Input-	42	S6 relay terminal 2 (fault alarm)
10	S3 relay terminal 1 (open torque)	28	Manual/automatic signal selector	43
11	S3 relay terminal 2 (open torque)	29	S10 Hold Relay 1 End*
12	S4 relay 1 end (off torque)	30	S10 Hold Relay 2 Terminals*
13	S4 relay 2 ends (torque off)	Warn! Before connecting to the power supply, please refer to the rated voltage value on the nameplate of the electric actuator. When the power supply is three-phase 380V , connect the No. 1.2.3 terminal, and when the power supply is single-phase 220V, connect the No. 1.2 terminal.
14	S5 relay 1 end (field/remote control)
15	S5 relay 2 ends (field/remote control)

AK wiring cable inlet size specifications: The middle inlet is NPT1- half, and the two inlet ports on both sides are NPT1.
Four three-phase (380VAC/50Hz) power terminals and three single-phase (220VAC/50Hz) power terminals, with a specification of M5. There are a total of 43 signal terminals, with a specification of M4.
Intelligent switch type: 3-core power cord; Control wire 3-core; 15 core signal cable.
Note: If you need to expand more status indicator contacts or bus control and have special requirements, please contact the supplier or our company.
