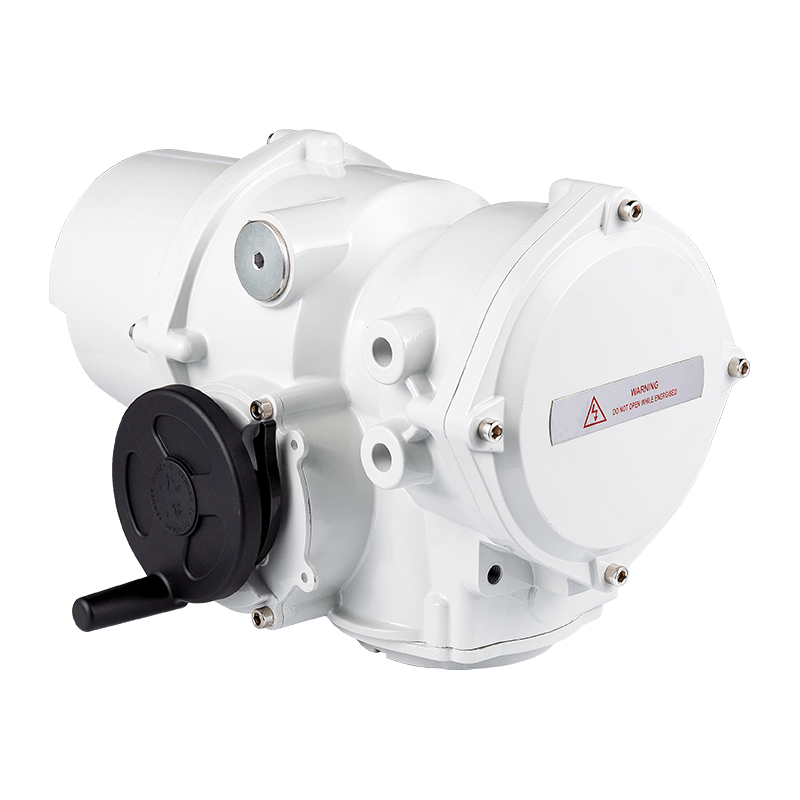

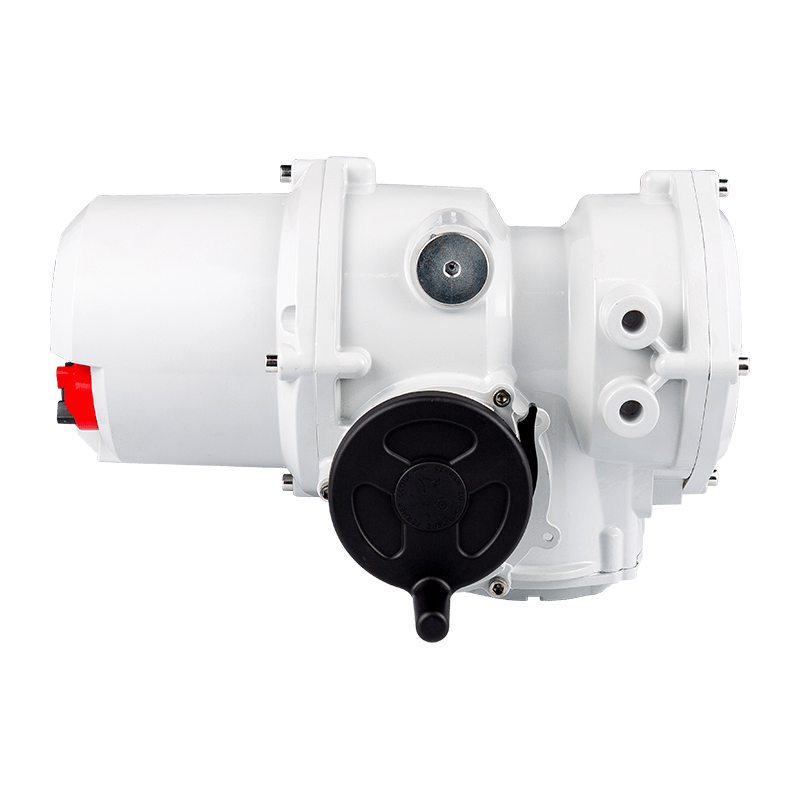

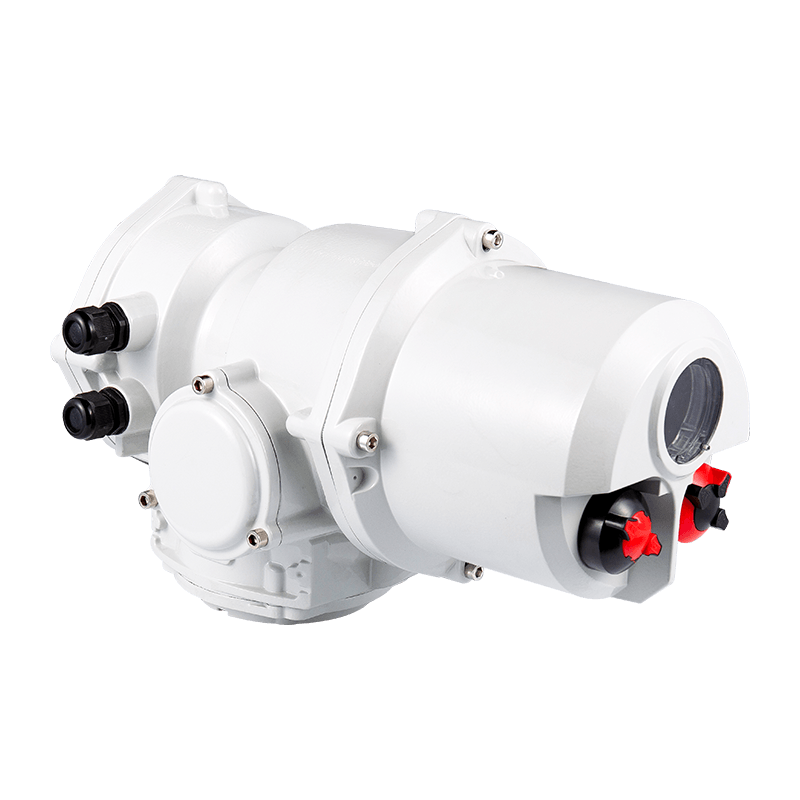

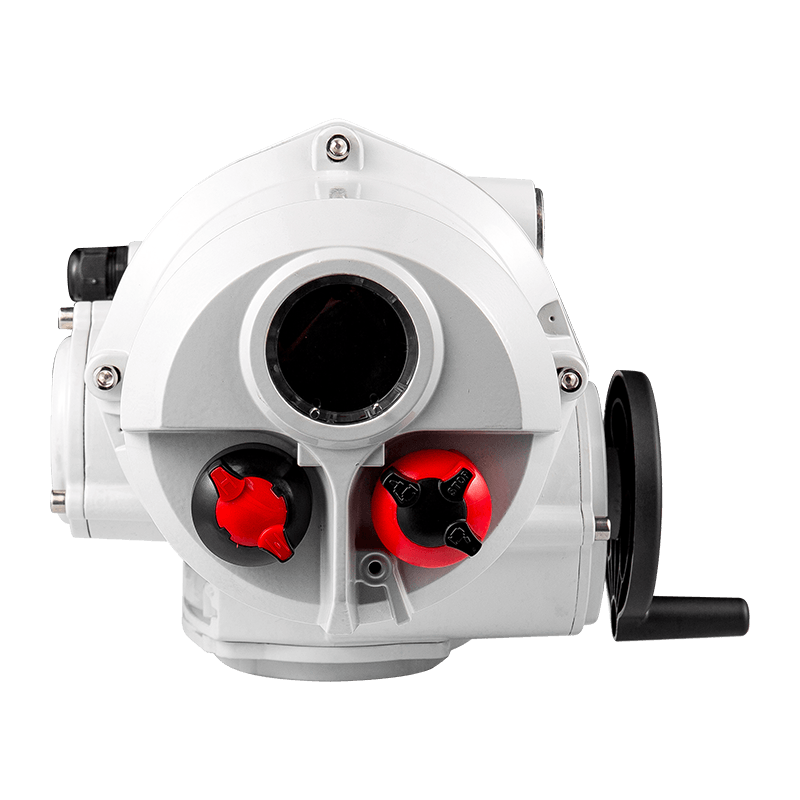

AKQ, AKQM Partial Rotary Actuator 100NM-500NM Models
◆ The structure is sturdy and adopts double sealing, which can effectively prevent water and dust during on-site wiring (IP67/IP68-2m, 48 hours)
◆ Direct drive angular travel
◆ Three phase, single-phase, and DC power supply actuators
◆ Multi language text display screen for displaying status and settings
◆ Built in data logger as a standard feature
◆ Perform local and remote analysis on actuators
◆ Simple, easy to control and indicate functions
◆ Simple torque and position control to enhance reliability
◆ Comprehensive control and indication flexibility
◆ Waterproof or explosion-proof specifications are available for selection
◆ Direct torque output range 50Nm (37ibf tt) -500Nm (370ibf ft)
AKQ Three-Phase Switch Type Actuator Performance Data
| Model | Speed(rpm) | Torque(N.m) | Supply Voltage(V) | Power phase number(Ph) | Frequency(Hz) | Motor power(kW) | Rated current(A) | Work system | Weight(kg) |
| AKQ250 | 1 | 250 | 380 | 3 | 50 | 0.04 | 0.57 | S2(15min) | 23 |
| AKQ500 | 0.5 | 500 | 380 | 3 | 50 | 0.04 | 0.57 | S2(15min) | 23 |
| AKQ1000 | 1 | 1000 | 380 | 3 | 50 | 0.04 | 0.57 | S2(15min) | 37 |
| AKQ2000 | 0.5 | 2000 | 380 | 3 | 50 | 0.04 | 0.57 | S2(15min) | 37 |
AKQS Performance Data of Single-Phase Switch Type Actuator
| Model | Speed(rpm) | Torque(N.m) | Supply Voltage(V) | Power phase number(Ph) | Frequency(Hz) | Motor power(kW) | Rated current(A) | Work system | Weight(kg) |
| AKQ250 | 1 | 250 | 220 | 1 | 50 | 0.04 | 1.14 | S2(10min) | 23 |
| AKQ500 | 0.5 | 500 | 220 | 1 | 50 | 0.04 | 1.14 | S2(10min) | 23 |
| AKQ1000 | 1 | 1000 | 220 | 1 | 50 | 0.04 | 1.14 | S2(10min) | 37 |
| AKQ2000 | 0.5 | 2000 | 220 | 1 | 50 | 0.04 | 1.14 | S2(10min) | 37 |
AKQM Performance Data of Three-Phase Regulating Actuator
| Model | Speed(rpm) | Torque(N.m) | Supply Voltage(V) | Power phase number(Ph) | Frequency(Hz) | Motor power(kW) | Rated current(A) | Work system | Weight(kg) |
| AKQM250 | 1 | 250 | 380 | 3 | 50 | 0.04 | 0.57 | S4(30%) | 23 |
| AKQM500 | 0.5 | 500 | 380 | 3 | 50 | 0.04 | 0.57 | S4(30%) | 23 |
| AKQM1000 | 1 | 1000 | 380 | 3 | 50 | 0.04 | 0.57 | S4(30%) | 37 |
| AKQM2000 | 0.5 | 2000 | 380 | 3 | 50 | 0.04 | 0.57 | S4(30%) | 37 |
AKQSM Single-Phase Regulating Actuator Performance Data
| Model | Speed(rpm) | Torque(N.m) | Supply Voltage(V) | Power phase number(Ph) | Frequency(Hz) | Motor power(kW) | Rated current(A) | Work system | Weight(kg) |
| AKQSM250 | 1 | 250 | 220 | 1 | 50 | 0.04 | 1.14 | S4(30%) | 23 |
| AKQSM500 | 0.5 | 500 | 220 | 1 | 50 | 0.04 | 1.14 | S4(30%) | 23 |
| AKQSM1000 | 1 | 1000 | 220 | 1 | 50 | 0.04 | 1.14 | S4(30%) | 37 |
| AKQSM2000 | 0.5 | 2000 | 220 | 1 | 50 | 0.04 | 1.14 | S4(30%) | 37 |

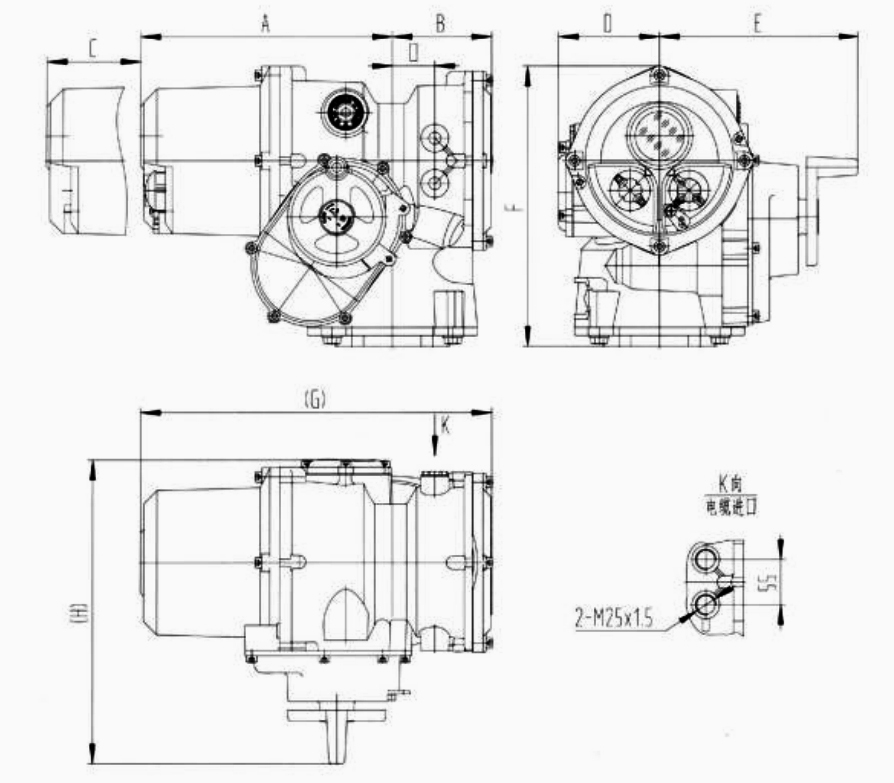

AKQ Partial Rotary Intelligent Actuator External Dimensions
| Actuator parameters \ actuator specifications | A | B | C | D | E | F | (G) | (H) | (I) |
| AKQ125-500 | 306 | 124 | 160 | 135.5 | 202.5 | 277 | 430 | 338 | 54 |
| AKQ600-2000 | 308 | 121.5 | 160 | 123.5 | 245 | 340 | 428.5 | 368.5 | 52 |

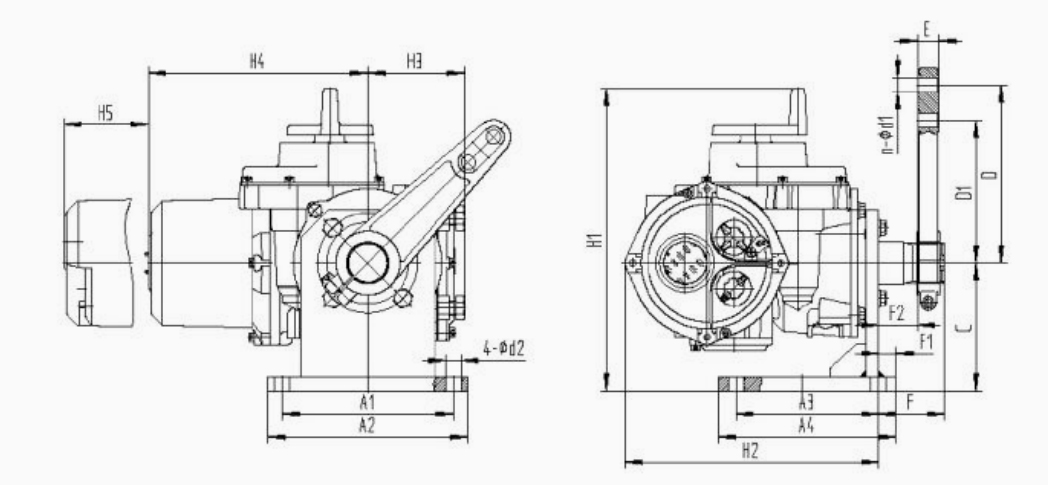

AKQ+DJ Outline and Connection Dimensions of Base Type Partial Rotary Actuator
| Actuator parameters \ actuator specifications | A1 | A2 | A3 | A4 | C | D1 | D | E | F | F1 | F2 | H1 | H2 | H3 | H4 | H5 | n-φd1 | 4-φd2 |
| AKQ+DJ1 | 240 | 280 | 180 | 220 | 180 | 100 | 100 | 22 | 68.5 | 20 | 17.5 | 382 | 288 | 124 | 306 | 160 | 18 | 17.5 |
| AKQ+DJ2 | 240 | 280 | 200 | 250 | 180 | 200 | 250 | 30 | 93 | 25 | 55 | 425 | 356 | 136 | 308 | 160 | 2-φ20 | 22 |

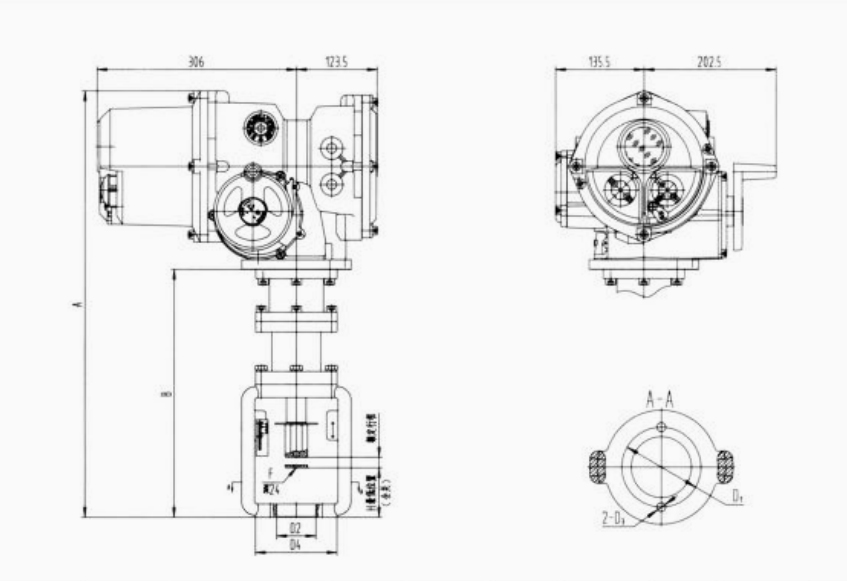

AKQML Linear Actuator Structure Dimensions
| Model |
Rated load N |
Rated travel mm |
Rated speed mm/s |
Valve stem connection hole F |
Flange connection D1 |
Flange inner hole D2 |
Flange hole D3 |
Connecting valve flange D4 |
A | B | H |
| AKQML-64/2710 | 6400 | 10 | 0.27 | M8×1.25 | φ80 | φ60D11 | 2-φ11 | φ125 | 649 | 377 | 81 |
| AKQML-64/2716 | 16 | 0.27 | 75 |

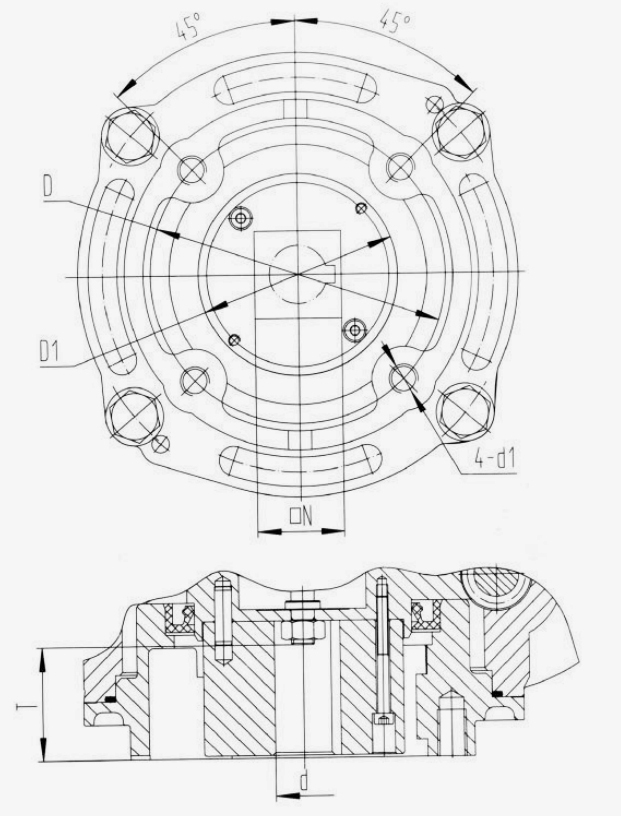

AKQ Actuator Flange Size
| Actuator parameters \ actuator specifications | D | D1 | N | d | T | d1 | |
| AKQ125-500 | F05 | φ50 | φ38 | 20 | φ25 | φ50 | M6 |
| F07 | φ70 | φ55 | 30 | φ35 | φ70 | M8 | |
| F10 | φ102 | φ69 | 30 | φ42 | φ102 | M10 | |
| AKQ600-1000 | F12 | φ125 | φ98 | 50 | φ65 | φ125 | M12 |
| F14 | φ140 | φ98 | 50 | φ65 | φ140 | M16 | |
