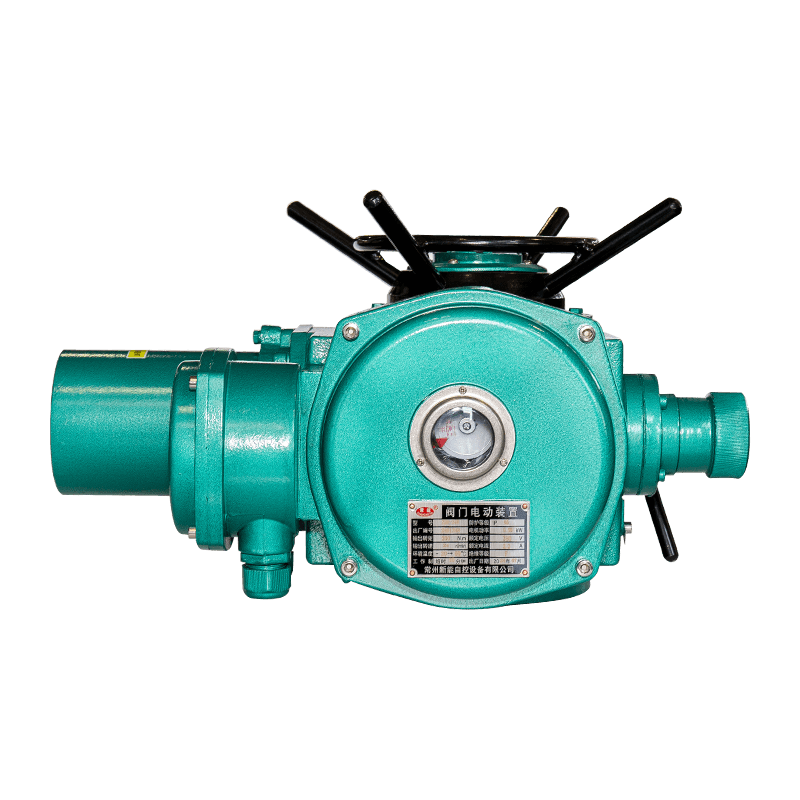

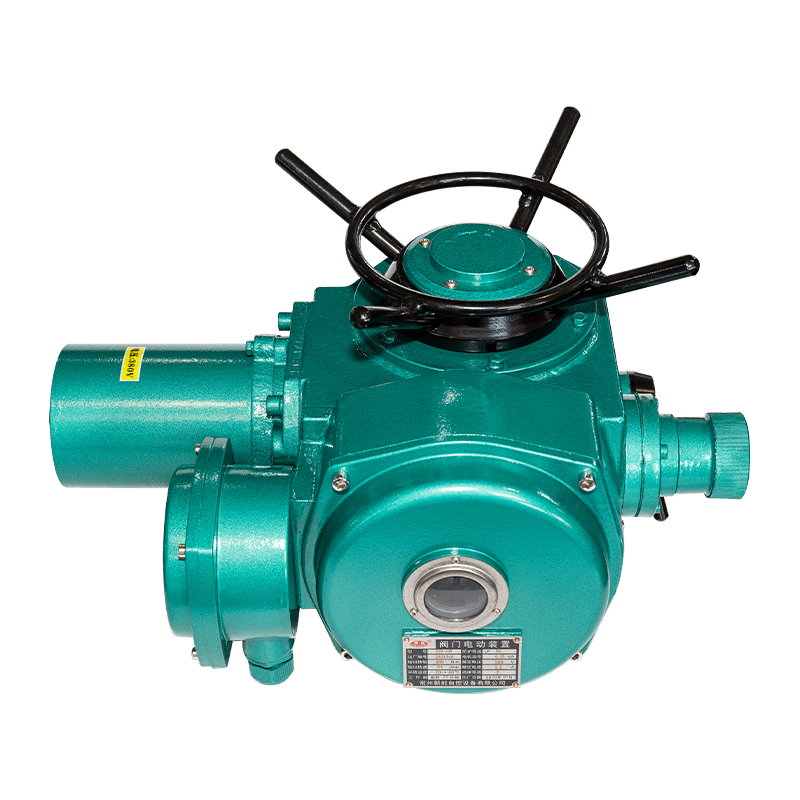

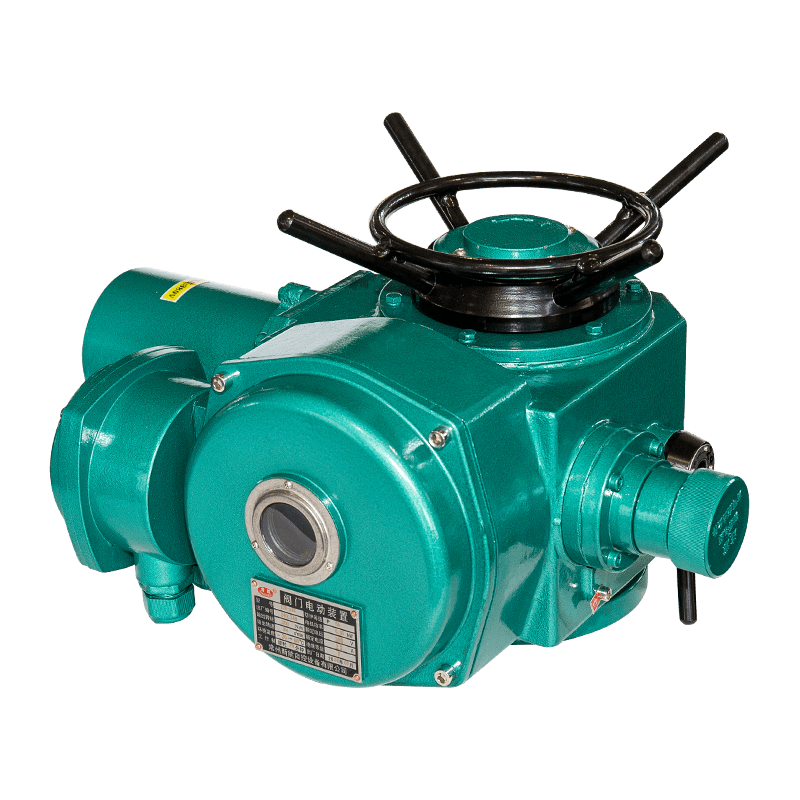

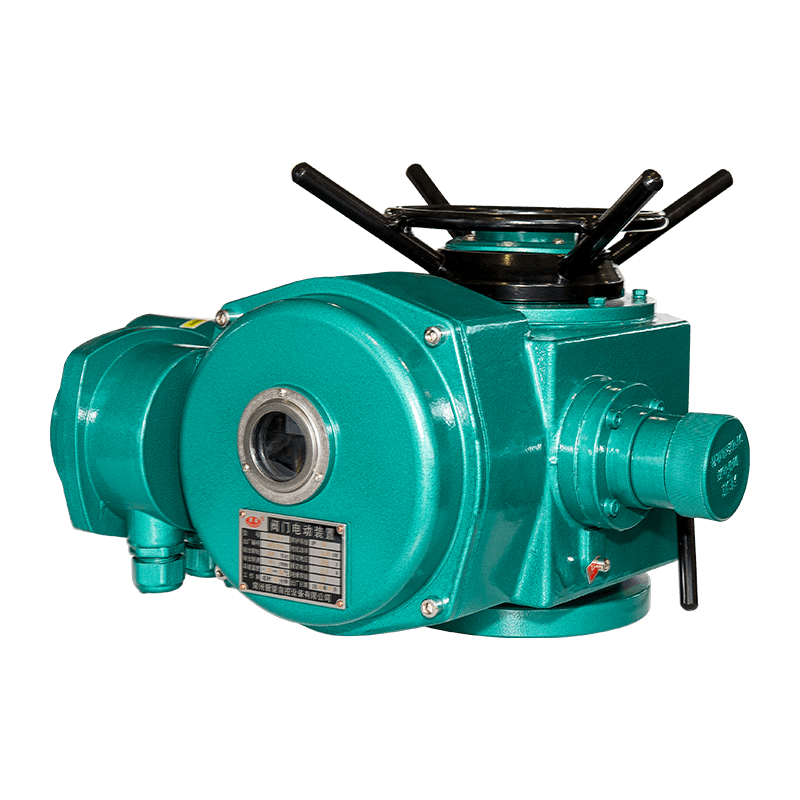

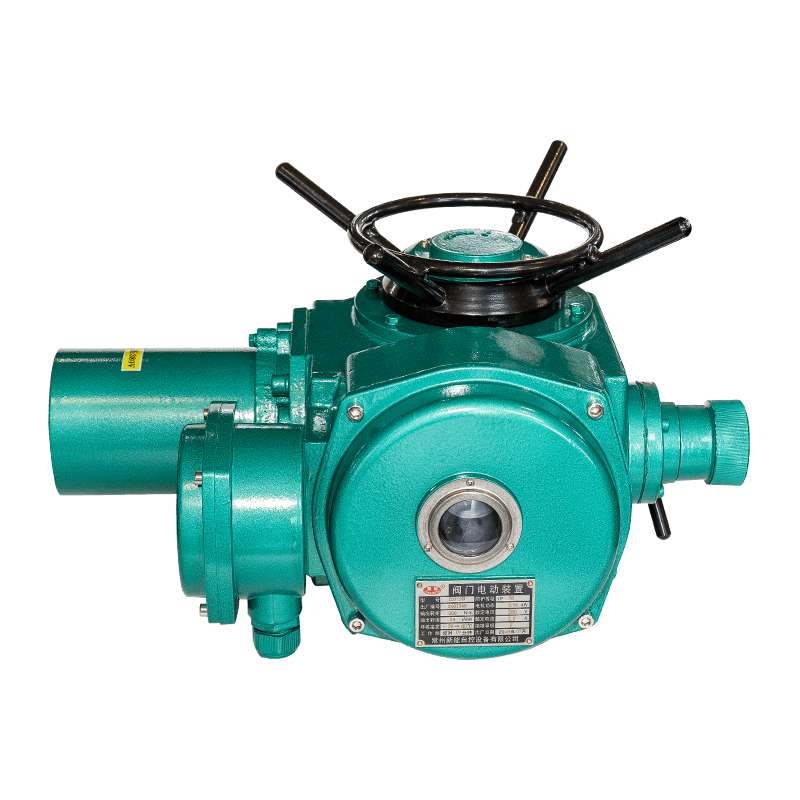

Model Specifications and Main Performance Parameters
Model specifications | Nominal torque(N ·m) | Nominal thrust(KN) | Maximum stem diameter(mm) | Maximum number of turns (circles) | Manual speed ratio | Output speed(r/min) | Motor power(KW) | Reference weight(Kg) |
Z5 | 50 | 20 | 28 | 60 | 1:1 | 12 | 0.12 | 28 |
Z10 | 100 | 40 | 28 | 60 | 1:1 | 24/36 | 0.25/0.37 | 45 |
Z15 | 150 | 24/36 | 0.37/0.55 | 50 | ||||
Z20 | 200 | 100 | 40 | 60 | 1:1 | 18/24 | 0.37/0.55 | 55 |
Z30 | 300 | 18/24 | 0.55/0.75 | 58 | ||||
Z45 | 450 | 150 | 48 | 120 | 1:1 (20:1) |
24/36 | 1.1/1.5 | 110 |
Z60 | 600 | 24/36 | 1.5/2.2 | 120 | ||||
Z90 | 900 | 200 | 60 | 120 | 1:1 (25:1) |
24/36 | 2.2/3 | 139 |
Z120 | 1200 | 24/36 | 3/4 | 142 | ||||
Z180 | 1800 | 325 | 70 | 150 | 22.5:1 | 18/24 | 4/5.5 | 250 |
Z250 | 2500 | 18/24 | 5.5/7.5 | 255 | ||||
Z350 | 3500 | 700 | 80 | 150 | 20:1 | 18/24 | 7.5/10 | 330 |
Z500 | 5000 | 18/24 | 10/15 | 350 |
Note 1: Other speeds can be provided according to user requirements: 12/18/24/30/36/42/48/60 (r/min)
Note 2: When the product provides a four layer counter, the maximum number of rotations is 10 times the number of rotations in Table 1

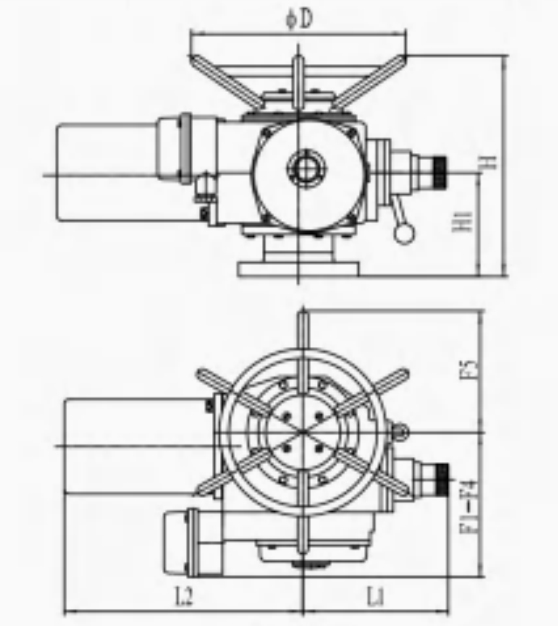

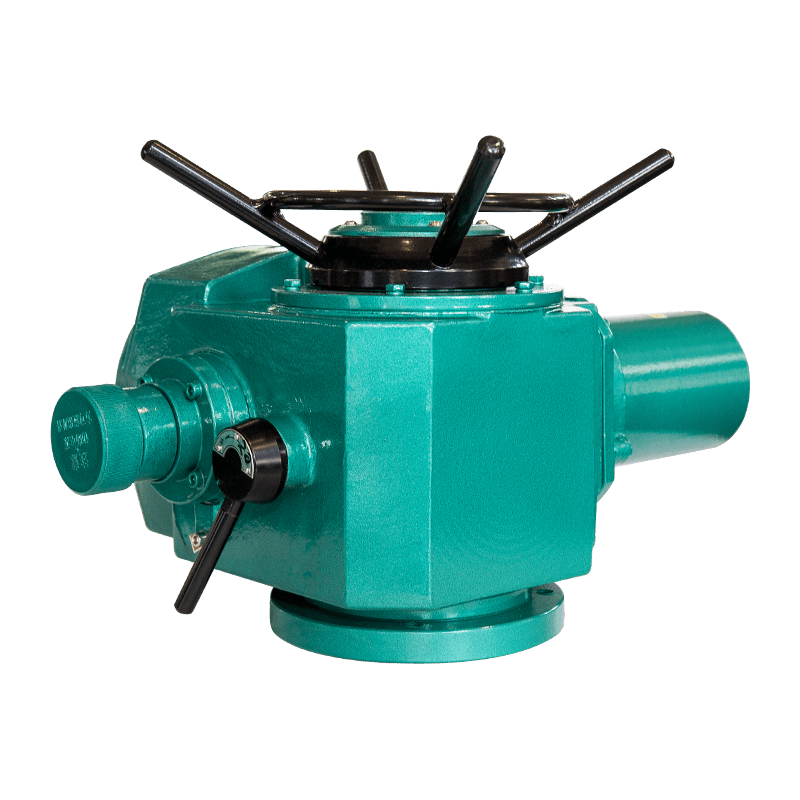

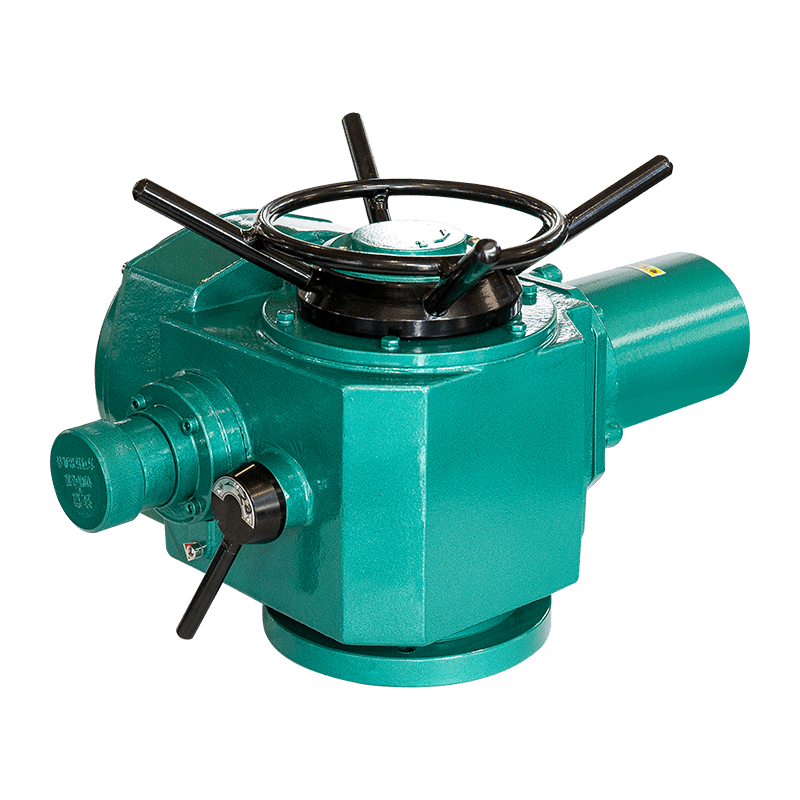

Appearance and Dimensions
Model | H | H1 | L1 | L2 | F1 | F2 | F3 | F4 | F5 | φD |
Z5 | 230 | 95 | 140 | 250 | 215 | - | - | - | 120 | 170 |
Z10/Z30 | 320 | 130 | 200 | 315 | 255 | 320 | 350 | 375 | 175 | 350 |
Z45/Z60 | 415 | 195 | 280 | 430 | 275 | 395 | 370 | 395 | 235 | 470 |
Z90/Z120 | 455 | 195 | 285 | 490 | 310 | 430 | 405 | 430 | 250 | 500 |
Z180/Z250 | 585 | 250 | 320 | 530 | 360 | 480 | 455 | 480 | 295 | 320 |
Z350/Z500 | 720 | 280 | 400 | 1080 | 420 | 445 | 420 | 545 | 440 | 565 |
