Performance Data of AKML Straight Stroke Three-Phase Adjustable Actuator
Model | Rated load (N) |
Actuator speed (rpm) |
Linear velocity (mm/s) |
Optional straight-line travel (mm) |
Voltage (V) |
Power phase number (Ph) |
Frequency (Hz) |
Motor power (KW) |
Rated current (A) |
Work system |
AKML18 | 4000 | 24 | 1.6 | 10/16/25/40 | 380 | 3 | 50 | 0.25 | 0.76 | S4(30%) |
6400 | 24 | 1.6 | 10/16/25/40 | 380 | 3 | 50 | 0.25 | 0.76 | S4(30%) | |
10000 | 24 | 1.6 | 16/25/40/60 | 380 | 3 | 50 | 0.25 | 0.76 | S4(30%) | |
16000 | 24 | 1.6 | 25/40/60/100 | 380 | 3 | 50 | 0.37 | 1.07 | S4(30%) | |
25000 | 24 | 1.6 | 40/60/100 | 380 | 3 | 50 | 0.37 | 1.07 | S4(30%) | |
AKML25 | 40000 | 24 | 2.8 | 40/60/100 | 380 | 3 | 50 | 0.75 | 1.99 | S4(30%) |
50000 | 24 | 2.8 | 40/60/100 | 380 | 3 | 50 | 0.75 | 1.99 | S4(30%) | |
80000 | 24 | 2.8 | 40/60/100 | 380 | 3 | 50 | 1.1 | 2.8 | S4(30%) |
Performance Data of AKSML Linear Stroke Single-Phase Regulating Actuator
Model | Rated load (N) |
Actuator speed (rpm) |
Linear velocity (mm/s) |
Optional straight-line travel (mm) |
Voltage (V) |
Power phase number (Ph) |
Frequency (Hz) |
Motor power (KW) |
Rated current (A) |
Work system |
AKML18 | 4000 | 24 | 1.6 | 10/16/25/40 | 220 | 2 | 50 | 0.2 | 1.7 | S4(30%) |
6400 | 24 | 1.6 | 10/16/25/40 | 220 | 2 | 50 | 0.2 | 1.7 | S4(30%) | |
10000 | 24 | 1.6 | 16/25/40/60 | 220 | 2 | 50 | 0.2 | 1.7 | S4(30%) | |
16000 | 24 | 1.6 | 25/40/60/100 | 220 | 2 | 50 | 0.2 | 1.7 | S4(30%) | |
AKML25 | 25000 | 24 | 2.8 | 40/60/100 | 220 | 2 | 50 | 0.9 | 6.5 | S4(30%) |
40000 | 24 | 2.8 | 40/60/100 | 220 | 2 | 50 | 1.1 | 7.7 | S4(30%) | |
50000 | 24 | 2.8 | 40/60/100 | 220 | 2 | 50 | 1.1 | 7.7 | S4(30%) |

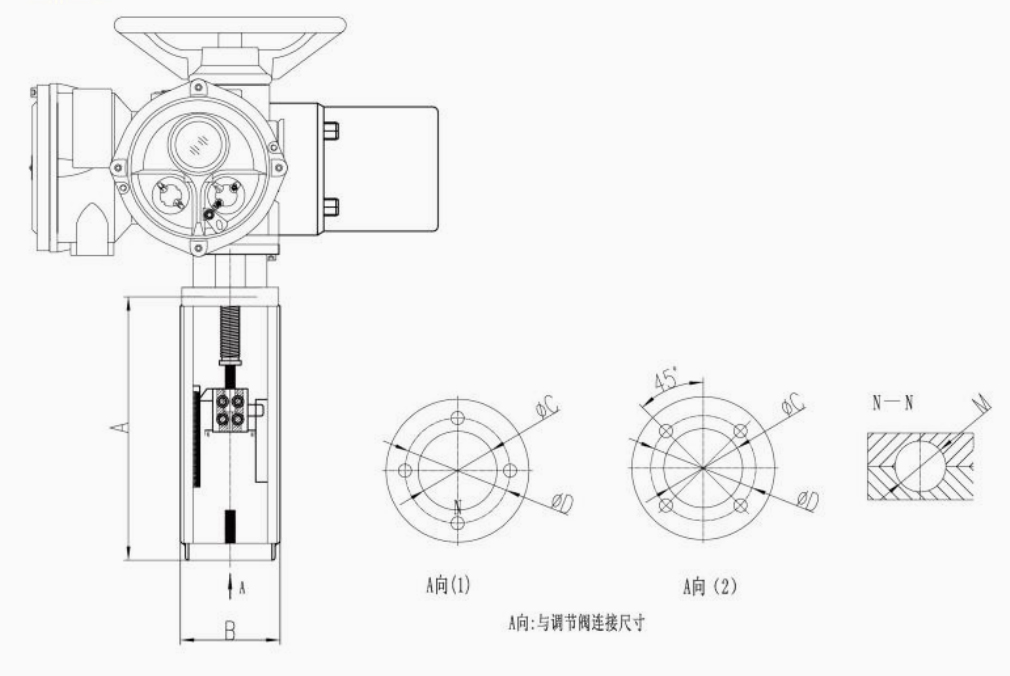

AKML Linear Actuator Structure Dimensions
AKML18
Parameters/Model | A | B | C | D | n-Φd | M |
AKML18-40 | 175 | 155 | 60 | 80 | 4-φ10 | M10 |
AKML18-64 | 310 | 155 | 80 | 105 | 4-φ12 | M12X1.25 |
AKML18-100 | 310 | 155 | 95 | 118 | 4-φ14 | M16X1.5 |
AKML18-160 | 310 | 155 | 95 | 118 | 4-φ14 | M16X1.5 |
AKML18-250 | 310 | 155 | 100 | 130 | 4-φ18 | M20X1.5 |
AKML25-400 | 310 | 155 | 100 | 130 | 4-φ18 | M20X1.5 |
AKML25-500 | 310 | 155 | 100 | 130 | 4-φ18 | M24X1.5 |
