Abstract: Intelligent electric actuators play an important role in the application of oil transfer stations. They meet the requirements of oil transfer process, are responsible for the opening and closing and dispatching of valves, and feedback valve status information. It is crucial to maintain every detail of intelligent electric actuators. This article analyzes the application of intelligent electric actuators in oil transfer stations, explains its important role in oil transfer stations, and explores solutions to common faults of intelligent electric actuators in oil transfer stations.
Keywords: Intelligent Electric Actuator; Oil Transfer Station; Application; Common Faults
1 Overview of Intelligent Electric Actuator Intelligent electric actuators are an indispensable and important part of automatic control systems. They receive control signals given by controllers or humans, amplify their power, and convert them into corresponding rotation angles or linear displacements of the output shaft, and continuously or intermittently push various control mechanisms, such as control valves and baffles, to complete the control of various parameters in the production process. Driven by a three-phase asynchronous motor, the hollow output shaft is driven to output torque through a worm gear reduction, which is an intelligent electric actuator. Today, the main functional features of intelligent electric actuators are as follows.
1.1 The parameter remote control setting function is very convenient. A dedicated infrared setter is used for parameter remote control setting, which simplifies the setting work procedure and greatly improves the safety of equipment operation. Especially in explosion-proof places, it is more important.
1.2 The control function is relatively advanced. The use of computer technology and advanced automatic follow-up control technology has greatly improved the response quality of the actuator.
1.3 Strong on-site adaptability. The actuator is designed with double seal protection, and the shell is dustproof, waterproof and airtight. It is strictly set according to the relevant standards specified in GB4208-93 and has the high IP68 protection capability. Now the internal and external interfaces of the actuator use optical isolation technology to increase reliability.
1.4 Improved self-diagnosis protection function The protection functions of the actuator mainly include instantaneous reversal protection, valve protection, deceleration, water pressure shock and surge protection, operation data protection and motor safety protection, among which motor safety protection is divided into phase protection, phase loss protection, overheating protection and overcurrent protection.

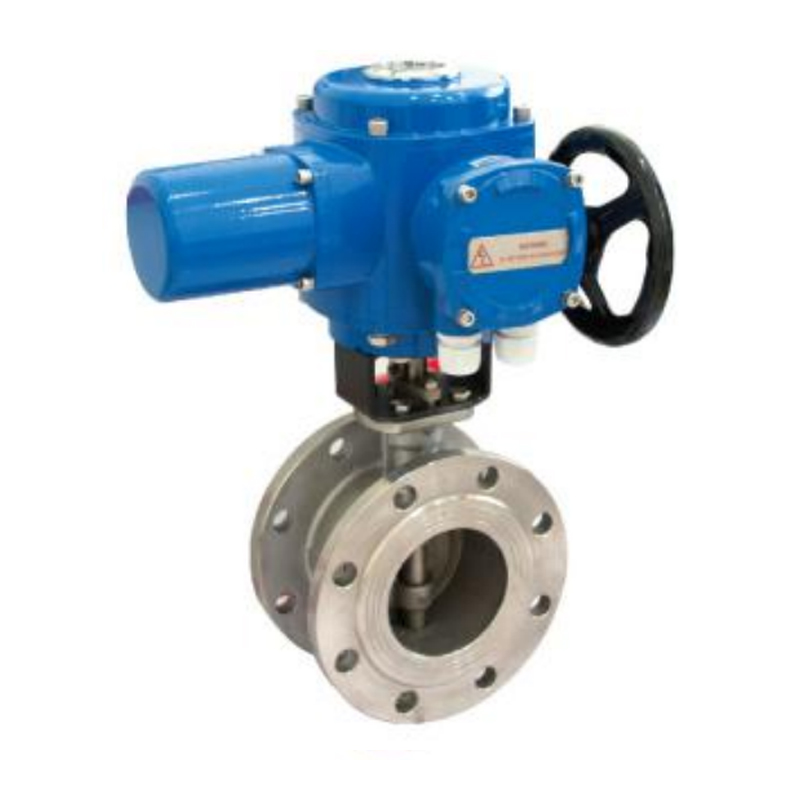

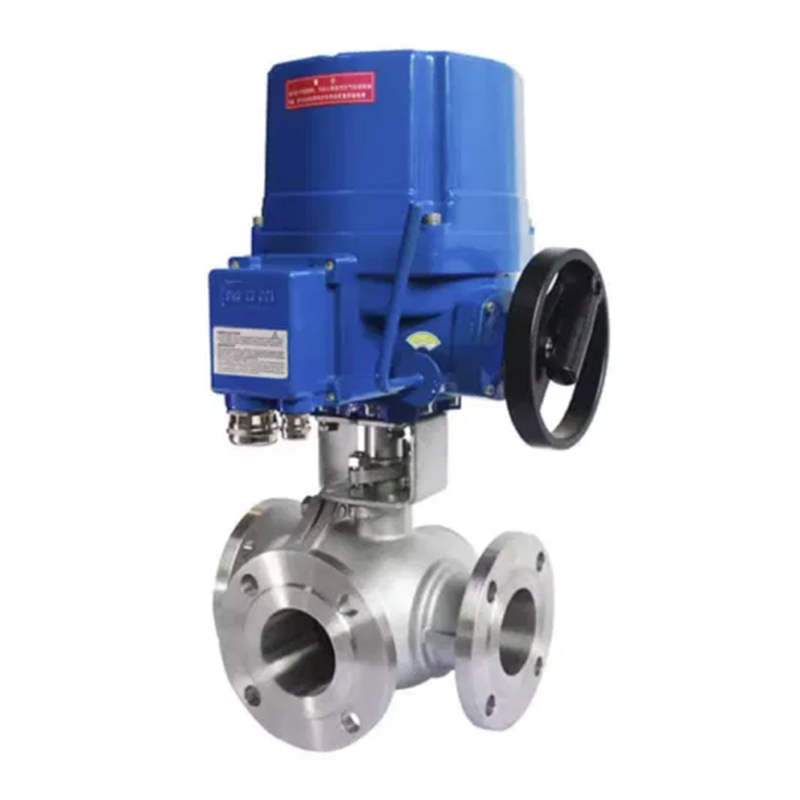

2 Intelligent electric actuators play an important role in the application of oil transfer stations, meet the needs of oil transfer process, are responsible for the opening and closing and dispatching of valves, and feedback valve status information. Intelligent electric actuators are widely used in oil transfer stations, with a wide variety of varieties and fierce market competition. Intelligent electric actuators are divided into two types: switch gates and regulating gates according to different control methods. Among them, the switch door actuator mainly adopts 24V DC/110VA. Its main task is to make the switch in place. It does not need to be supervised and controlled at any time, and there is no need to set dead zone adjustment. However, the switch must be in place. It is mainly used in valve systems that need to be fully closed or fully opened, such as ball valves and butterfly valves. The regulating door actuator relies on 4-mA control signal. The switch process needs to be controlled and dead zone must be set, otherwise it will cause confusion of the equipment. It is mainly used in occasions to control flow, such as gate valves and regulating valves. At present, the intelligent electric actuators mainly used in oil transfer stations are mainly AUKOMA ZL intelligent electric actuators. As one of the famous electric actuator manufacturers, AUKOMA electric actuators have many advantages such as light weight, small size, high control accuracy, and convenient adjustment and maintenance. According to different needs, the valve can be driven to complete the operation of full opening, full closing or precise positioning. AUKOMA electric actuators are mainly produced to meet different needs, including angular travel, linear travel, adjustment type, remote control type, switch type, etc. The main technical features of AUKOMA electric actuators are: (1) integrated circuit; (2) integration of actuator and control circuit; (3) over-torque protection; (4) IP68 protection level; (5) motor overheat protection; (6) power supply 220V or 380V. It is an intelligent product that integrates a variety of latest automatic control technologies and advanced manufacturing technologies such as absolute encoder technology, sensor technology, bus control technology, infrared remote control technology, LCD display, magnetic control switch, etc.
3 Common fault analysis and treatment of intelligent electric actuators
3.1 Fault: Valve is not closed tightly Analysis and treatment: Reset the switch limit, and check the valve after completion. If the fault still exists, it means that the valve is damaged and the valve needs to be treated.
3.2 Fault: The valve position display is different from the actual situation Analysis and processing: The internal program is disordered due to static electricity. Cut off the power supply to each actuator once, reset the switch limit, and operate the actuator. If the abnormal situation still occurs, it means that the counter has a problem and needs to be replaced.
3.3 Fault: The display interface is chaotic and the operation is invalid Analysis and processing: The main board is damaged and needs to be replaced.
3.4 Fault: Parameter settings cannot be saved Analysis and processing: After the data is changed, select OK to exit each time you exit the menu. When "CHANGE OK?" is displayed at the end, select OK, and the data can be saved. If the above operation is invalid, it means that the main board is damaged and needs to be replaced.
3.5 Fault: No display on the screen Analysis and processing: The main reason is that the screen has no display due to damage to the display board, and the display board needs to be replaced; ttZ may be a power supply or insurance failure, which should be checked.
3.6 Fault: The actuator does not work in the remote state, but only works in the local state. Analysis and processing: Check whether the actuator is in the remote state; Check whether the wiring terminal has poor contact.
3.7 Fault: The actuator does not work in the local state, but only works in the remote state. Analysis and processing: The actuator is in the closed position or in the remote state; There is a local prohibition command, check it, and check the contact state during remote control.
3.8 Fault: The actuator does not work locally or remotely. Analysis and processing: Set the selection knob to OFF and then to LOCAL to switch the working state; It may be in the infrared connection state, which should be removed; The motor overheats and triggers the overheat protection and no longer works, and it is necessary to wait for the motor to cool down; Check whether the actuator power supply is faulty.
3.9 Fault: Menu cannot be entered Analysis and processing: The selector is in remote state or closed position, and the button can only enter the local state. The selector needs to be adjusted to the local state; it may also be caused by the local prohibition command, which can be eliminated.
3.10 Fault: Menu parameters cannot be changed Analysis and processing: The CHECK menu parameters cannot be changed, and the CHANGE menu needs to be adjusted; the manufacturer sets parameter limits on the actuator itself and cannot be changed.
3.11 Fault: No record of handwheel action Analysis and processing: It is stipulated that if the handwheel action does not exceed 10% of the formation, the actuator will not display it.
3.12 Fault: Startup alarm occurs Analysis and processing: The actuator will monitor the number of starts in the past 12 hours. Compared with the regulator level, the alarm will not affect the operation of the actuator, but only serve as an indication action.
3.13 Fault: The actuator works in the local state but not in the remote state with an analog position control signal Analysis and processing: Check whether the selector is in the LOCAL position, if so, reset and REMOE; check the terminal polarity and signal status to see if they meet the requirements.
3.14 Fault: The actuator works in the remote state but not in the local state with an analog position control signal Analysis and processing: Set the selector to the REMOTE position; check whether the setting of the pesitioner signal in the CHANGE sub-menu is correct.
4 Conclusion Through the analysis of the specific application and common faults of intelligent electric actuators in oil transfer stations, we should learn to pay more attention to the maintenance and repair of actuators while enjoying the high-tech achievements. On the one hand, it ensures the important functions of the actuators in the oil transfer stations, and on the other hand, it makes the work easier and safer, providing more power for the development of enterprises.
