Brief Introduction

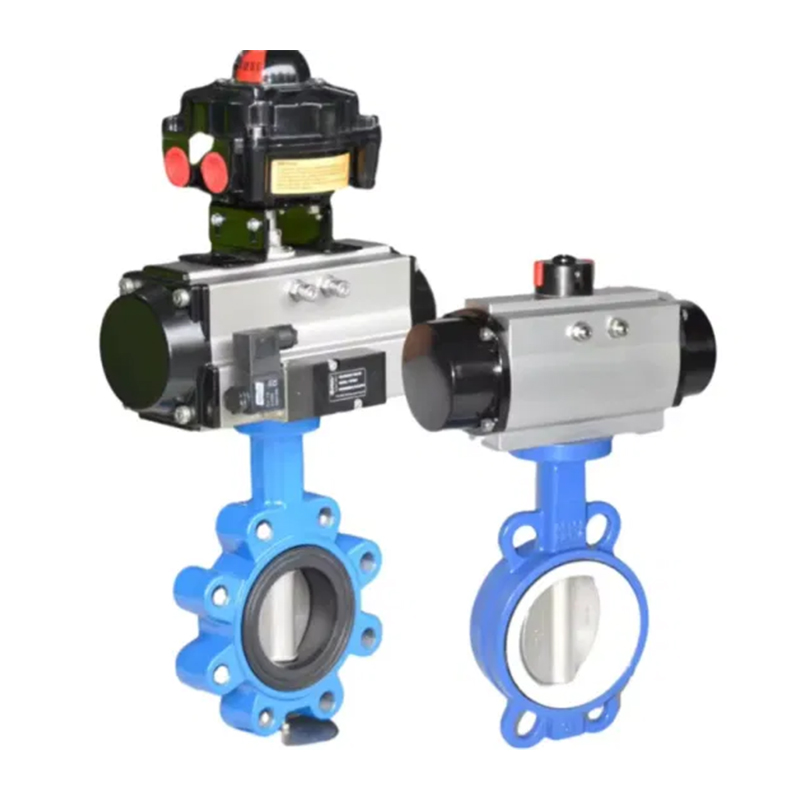

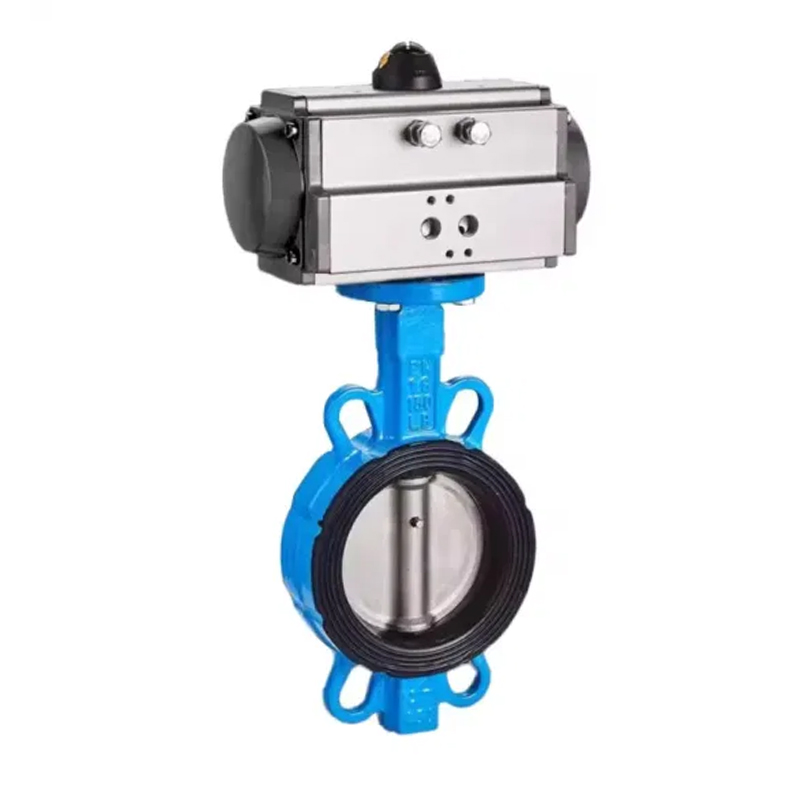

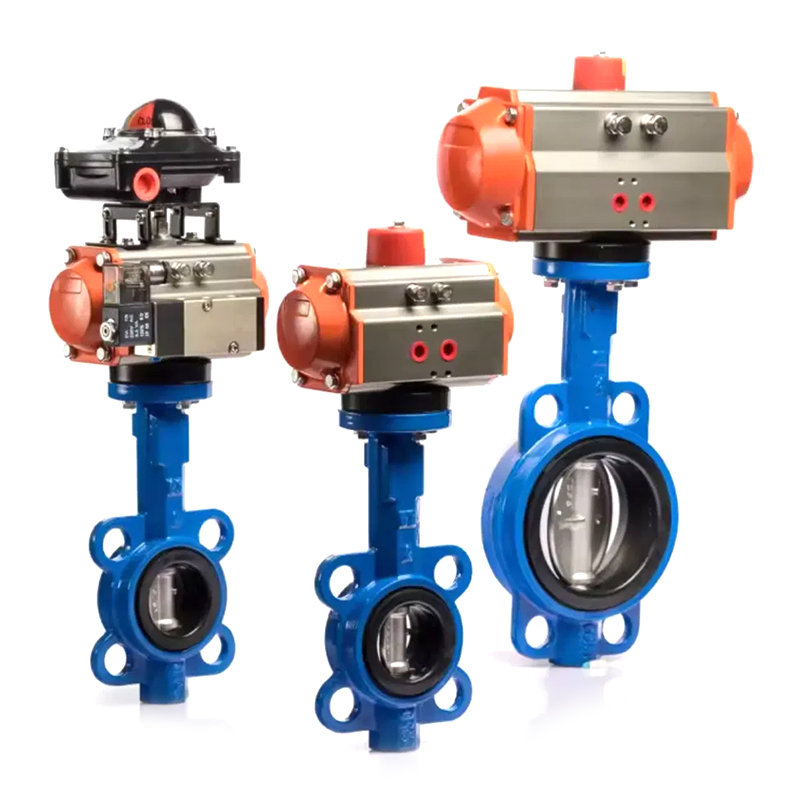

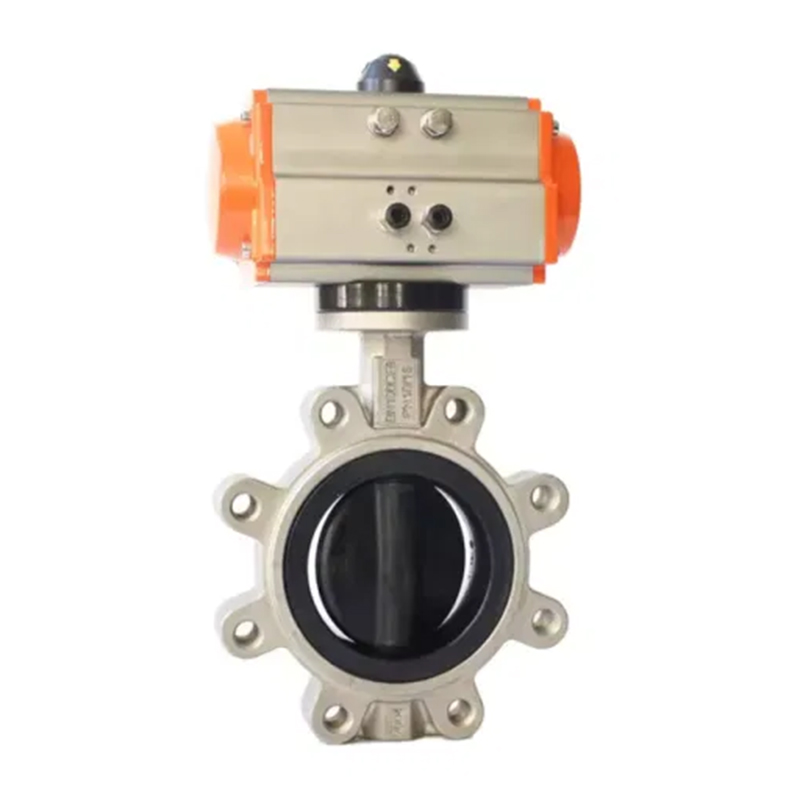

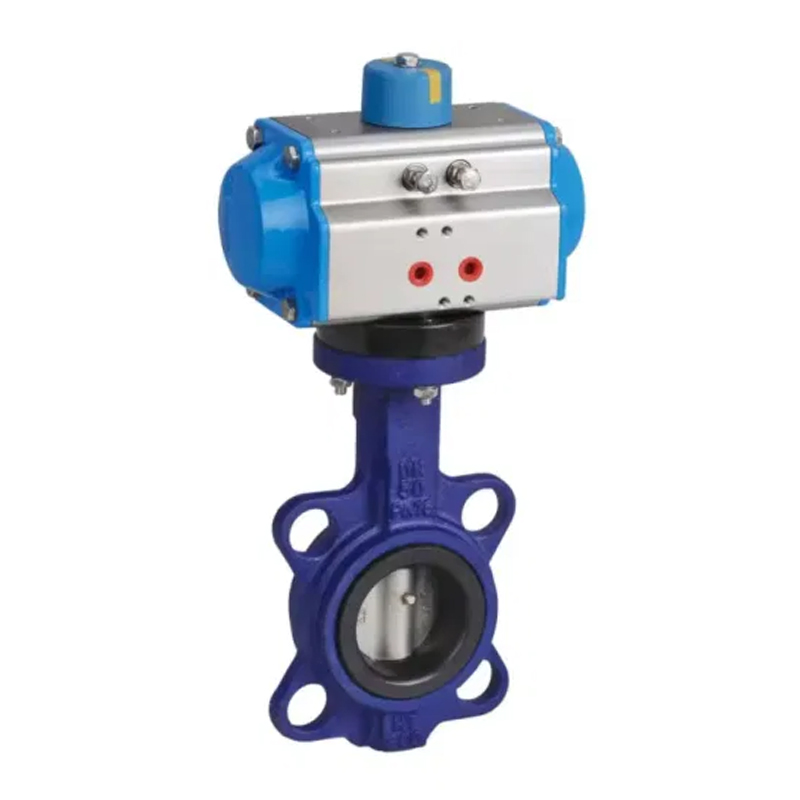

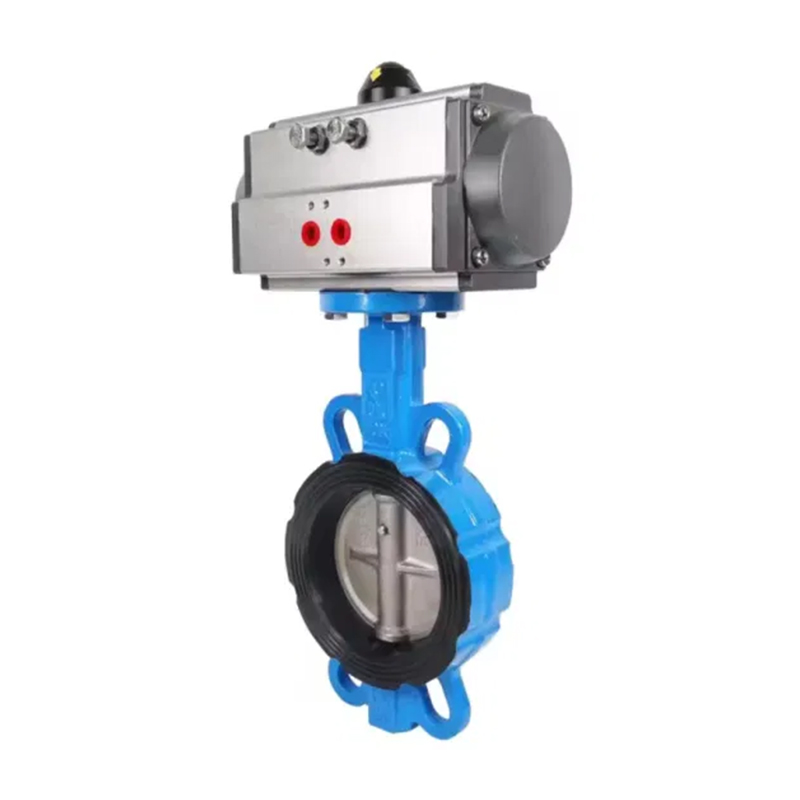

D671X pneumatic wafer rubber butterfly valve has novel and reasonable design, simple structure, small size, light weight, quick opening and closing of 90-degree rotation, small operating torque, easy operation, labor-saving and dexterous. It can be installed in any position and is easy to maintain. The seal can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage. The sealing material is resistant to aging and corrosion, and has a long service life. When the wafer rubber butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body. Therefore, the pressure drop generated by the valve is very small, so it has good flow control characteristics. Butterfly valves are not only widely used in general industries such as petroleum, gas, chemical industry, and water treatment, but also in the cooling water system of thermal power plants.
Technical Parameter
Pneumatic Actuator Optional Features | Double acting, single acting |
Pneumatic actuator optional models | AT series, AW series |
Solenoid valve voltage | AC110V,AC220V,AC24V,DC24V |
Air source pressure | 2bar~8bar |
Nominal diameter | DN50mm-DN1200mm |
Nominal pressure | PN1.0MPa-PN2.5MPa |
Applicable temperature | -30~+425ºC |
Connection | Wafer Type |
Valve body material | Carbon steel, stainless steel |
Valve plate material | Carbon steel, stainless steel, alloy steel, etc. |
Valve seat lining | Cemented carbide, tungsten carbide, nickel alloy, graphite composite, PTFE |
Applicable media | Water, steam, oil, weak corrosive media, etc. |
Main Dimension Table
DN | 1.0 | 1.6 | |||||||||
mm | inch | H | L | D | D1 | n-φd | H | L | D | D1 | n-φd |
40 | 11/2" | 58 | 33 | 110 | 88 | 4-φ19 | 58 | 33 | 110 | 88 | 4-φ19 |
50 | 2" | 67 | 43 | 125 | 92 | 4-φ19 | 67 | 43 | 125 | 92 | 4-φ19 |
65 | 21/2" | 74 | 46 | 145 | 113 | 4-φ19 | 74 | 46 | 145 | 113 | 4-φ19 |
80 | 3" | 97 | 46 | 160 | 130 | 8-φ19 | 97 | 46 | 160 | 130 | 8-φ19 |
100 | 4" | 111 | 52 | 180 | 167 | 4-φ19 | 111 | 52 | 180 | 167 | 4-φ19 |
125 | 5" | 125 | 56 | 210 | 192 | 4-φ23 | 125 | 56 | 210 | 192 | 4-φ23 |
150 | 6" | 140 | 56 | 240 | 222 | 8-φ23 | 140 | 56 | 240 | 222 | 8-φ23 |
200 | 8" | 174 | 60 | 295 | 275 | 4-φ23 | 174 | 60 | 295 | 275 | 4-φ28 |
250 | 10" | 207 | 68 | 350 | 332 | 4-φ23 | 207 | 68 | 355 | 332 | 4-φ28 |
300 | 12" | 240 | 77 | 400 | 390 | 4-φ23 | 240 | 77 | 410 | 390 | 4-φ28 |
350 | 14" | 272 | 86 | 460 | 423 | 4-φ23 | 272 | 86 | 470 | 423 | 4-φ28 |
400 | 16" | 297 | 102 | 515 | 580 | 4-φ28 | 297 | 102 | 525 | 580 | 4-φ31 |
450 | 18" | 331 | 114 | 565 | 640 | 4-φ28 | 331 | 114 | 585 | 640 | 4-φ31 |
500 | 20" | 361 | 130 | 620 | 715 | 4-φ28 | 361 | 130 | 650 | 715 | 4-φ34 |
600 | 24" | 459 | 152 | 725 | 840 | 4-φ31 | 459 | 152 | 770 | 840 | 4-φ37 |
700 | 28" | 520 | 163 | 840 | 910 | 24-φ31 | 520 | 163 | 840 | 910 | 24-φ37 |
800 | 32" | 591 | 188 | 950 | 1025 | 24-φ34 | 591 | 188 | 950 | 1025 | 24-φ40 |
900 | 36" | 656 | 203 | 1050 | 1125 | 28-φ34 | 656 | 203 | 1050 | 1125 | 28-φ34 |
1000 | 40" | 721 | 216 | 1160 | 1255 | 28-φ37 | 721 | 216 | 1170 | 1255 | 28-φ43 |
1200 | 48" | 844 | 276 | 1380 | 1485 | 32-φ40 | 844 | 276 | 1390 | 1485 | 32-φ49 |
