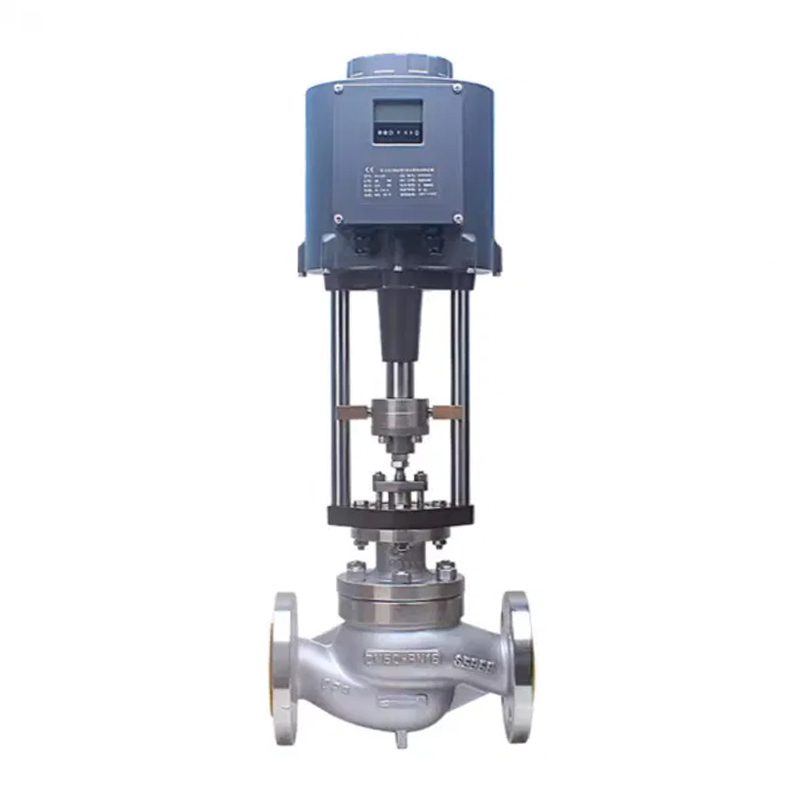

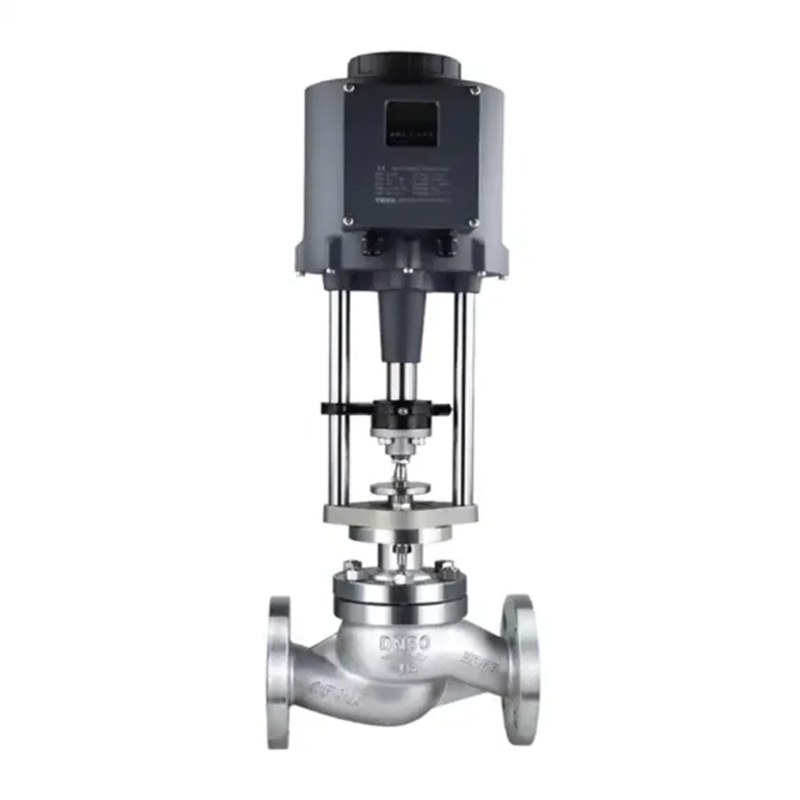

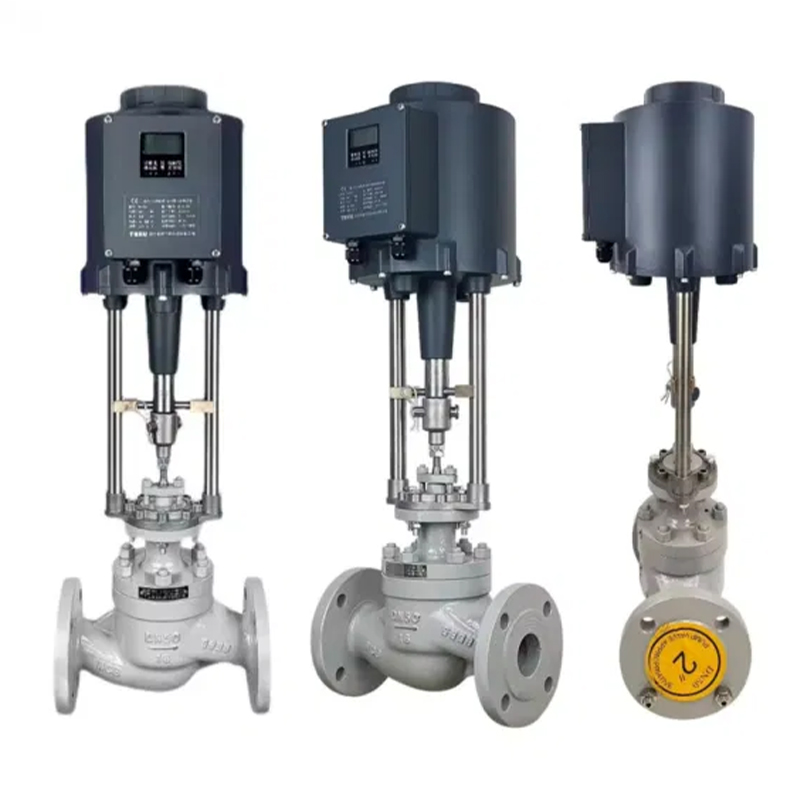

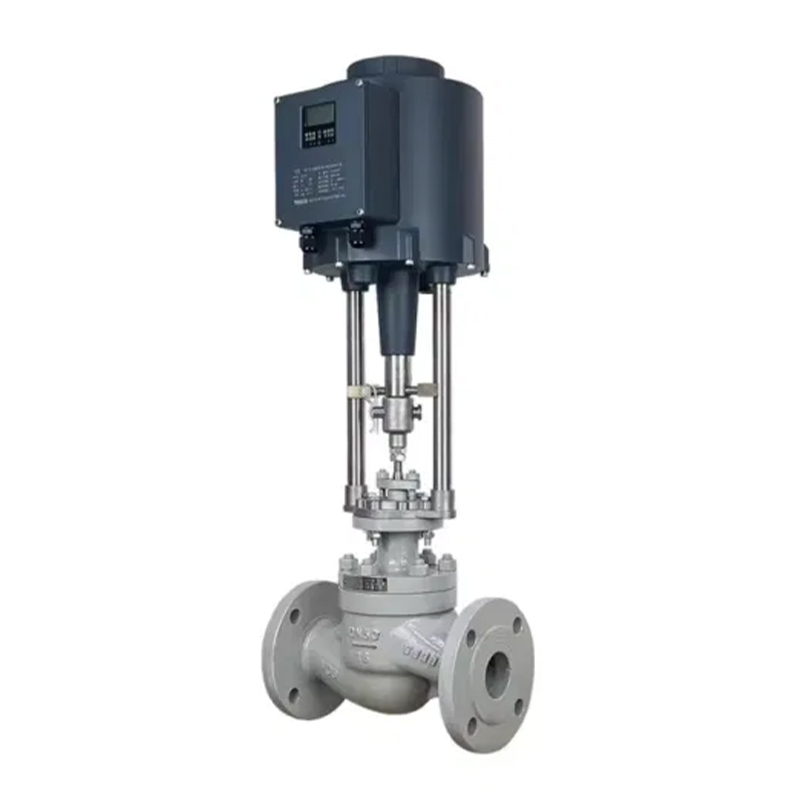

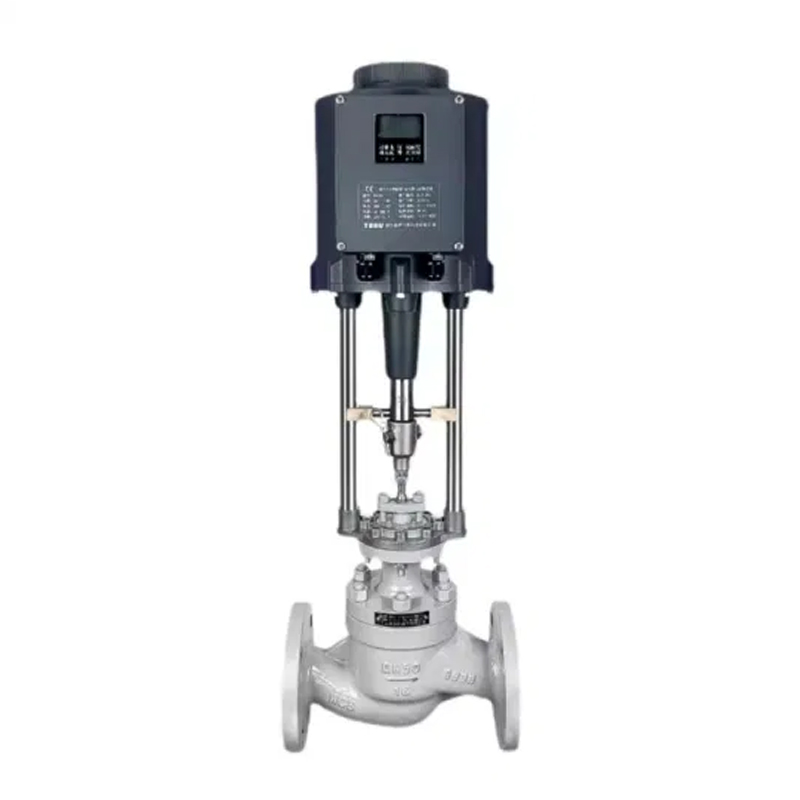

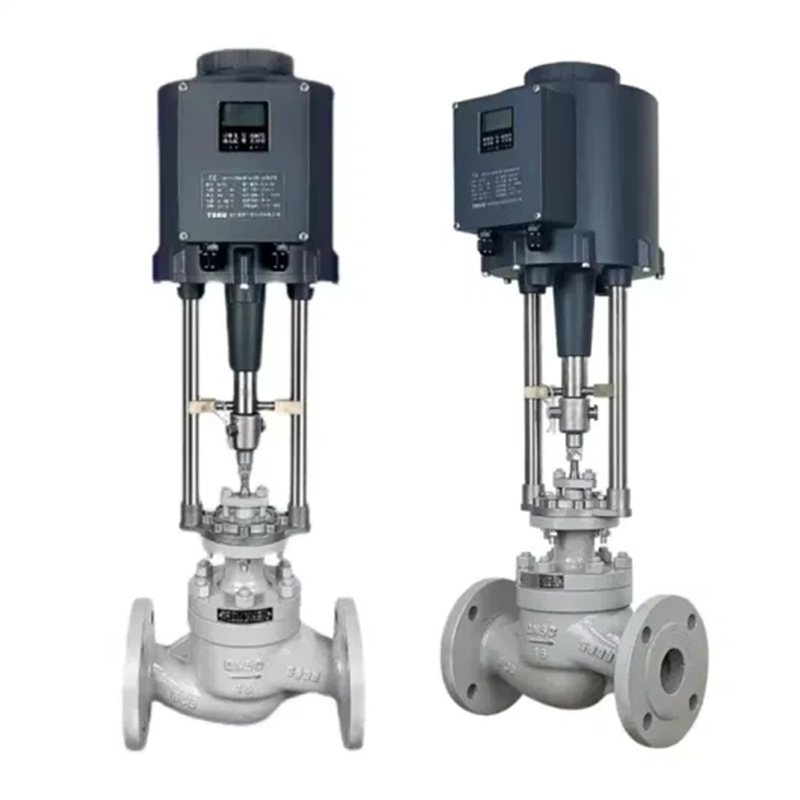

Maximum travel |
30mm, 60mm, 100mm |
Working voltage |
AC220V, AC380V, AC24V, DC24 can be configured as standard, other voltages can be selected as optional |
Operating speed |
Adjustable from 30% to 100% of the maximum operating speed |
Control signal |
Standard 4-20mA, 0-10V, switch quantity; Optional RS485, wireless (NB, LORa, 4G) |
Valve position feedback |
Standard 4-20mA, 0-10V; Optional RS485, relay feedback, wireless (NB, LORa, 4G) |
Control accuracy |
4-20mA default 0.5%, adjustable 0.1%, 0-10V default 1%, adjustable 1% -20%; 485 bus less than 0.03% |
Reset function |
Standard signal interruption, optional power-off |
Adjustment characteristics |
Linear (optional proportional) |
Travel setting |
Automatic travel verification or digital travel setting |
Thrust |
1000N-26000N |
Status display |
LED screen display |
Environmental temperature |
-20~70 ℃ |
Protection level |
IP65 |
Shell |
Hard aluminum alloy, using electrostatic spraying |

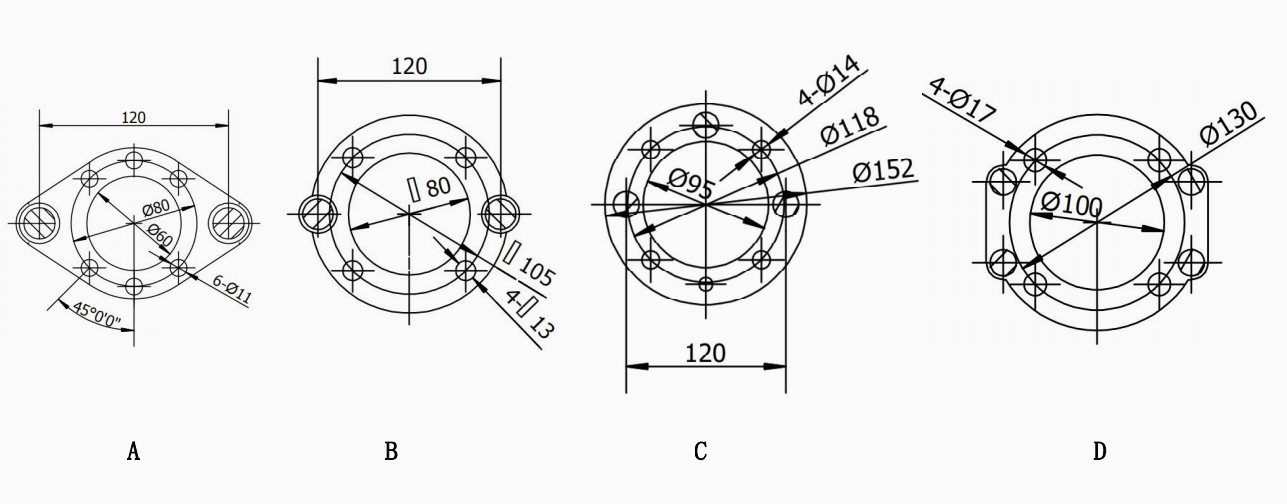

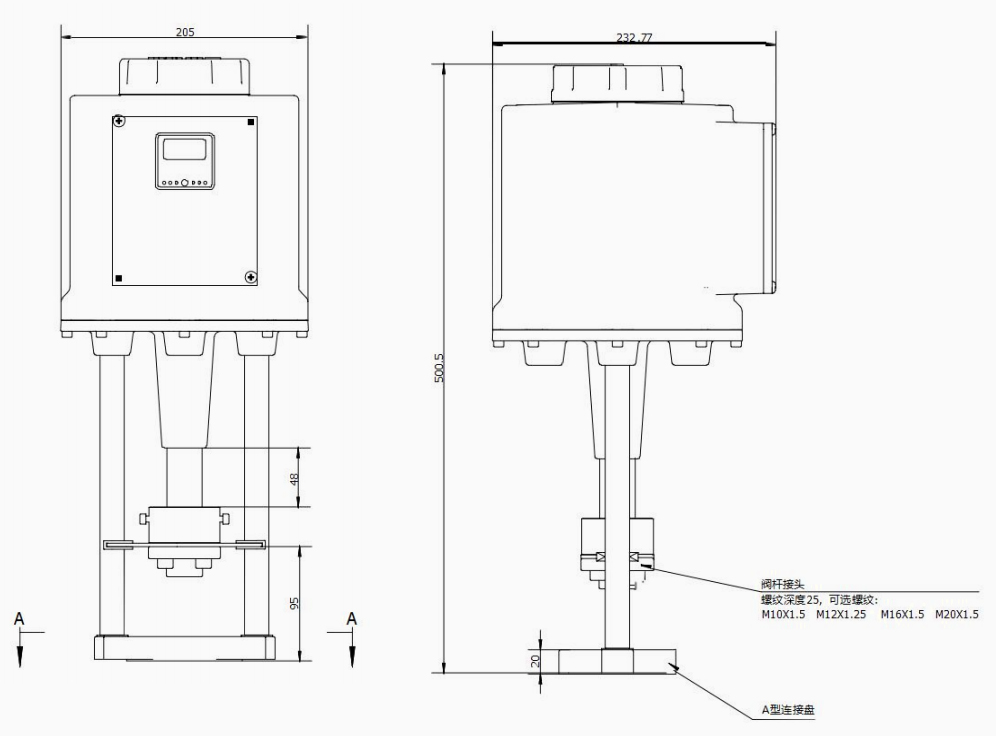

External Dimensions
Connection disk | Trip | B (Minimum height of valve stem) | Valve stem joint | Electrical interface | ||||
A type | 30 | 95 | M10*1.5 | M16*1.5 | ||||
B type | 60 | 130 | M12*1.25 | |||||
C type | 60 | 130 | M16*1.5 | |||||
D type | 100 | 160 | M20*1.5 |
Note: Customization is available for other types of connection disks
Model | Maximum travel distance | Thrust | Connection disk | Weight | ||||
ADL310 | 30 | 1000N | Type A | 12KG | ||||
ADL320 | 30 | 2000N | Type A | |||||
ADL330 | 30 | 3000N | Type A | |||||
ADL350 | 30 | 5000N | Type A, Type B optional | 12KG/13KG | ||||
ADL365 | 30 | 6500N | Type A\B | |||||
ADL3100 | 30 | 10000N | Type B | 13.2KG | ||||
ADL3160 | 30 | 16000N | Type C\D | 25KG | ||||
ADL3260 | 30 | 26000N | Type D | |||||
ADL630 | 60 | 3000N | Type A, Type B optional | 13KG | ||||
ADL650 | 60 | 5000N | Type B is optional | |||||
ADL665 | 60 | 6500N | Type B, Type C optional | |||||
ADL6100 | 60 | 10000N | Type B, Type C optional | |||||
ADL6160 | 60 | 16000N | Type C, Type D are optional | 21.5KG | ||||
ADL6260 | 60 | 26000N | Type C, Type D are optional | |||||
ADL10160 | 100 | 16000N | Type C, Type D are optional | 25.5KG | ||||
ADL10260 | 100 | 26000N | Type D |
Note: Customization is available for trips of 100 or more

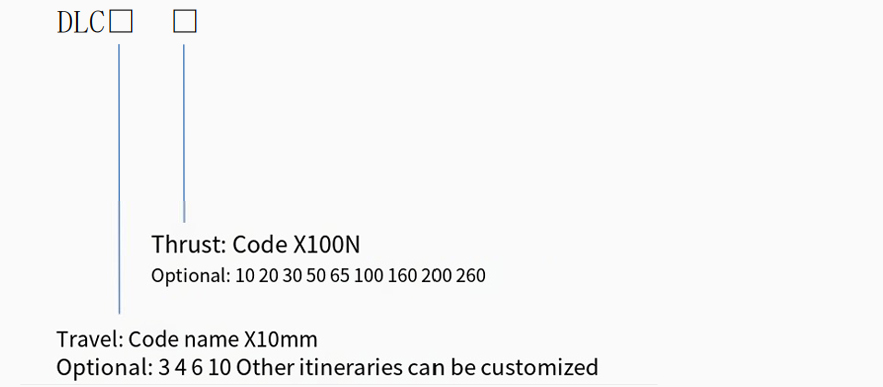

ADL Series Model Description
Common models: DLC310 DLC320、DLC330、DLC350、DLC365、DLC3100、DLC3160、DLC3260、
DLC630、DLC650、DLC665、DLC6100、DLC6160、DLC6260、DLC10160、DLC10260
Remarks:
(1) Power off reset function, corresponding to adding "F" after the model; For example: DLC330F
(2) 485 communication/Modbus protocol function, corresponding to adding "M" after the model: for example: DLC330M
(3) Switching feedback function, corresponding to adding "K" after the model: for example: DLC330K
(4) If all three functions are included: for example: DLC330KMF
