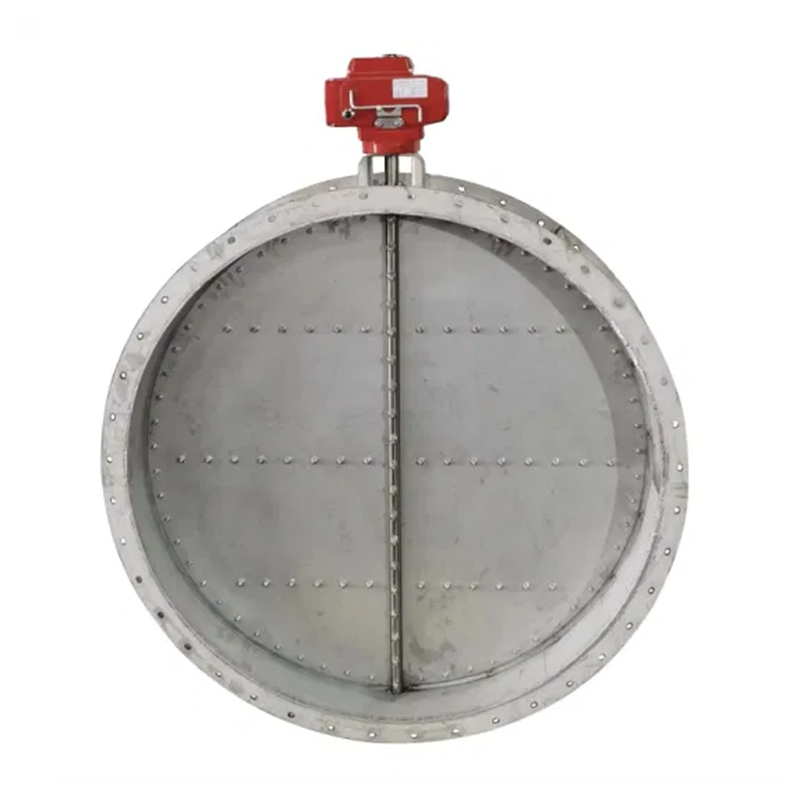

MFD Mining Ventilation Butterfly Valve
MFD Mining Ventilation Butterfly Valve
MFD Mining Ventilation Butterfly Valve
MFD Mining Ventilation Butterfly Valve
MFD Mining Ventilation Butterfly Valve
MFD Mining Ventilation Butterfly Valve

MFD Mining Ventilation Butterfly Valve

Get A Quote
PREV：MZ Mining Electric Sniffing ValveNEXT：MD Mining Explosion-Proof Electric Butterfly Valve
  • Parameter
  • Contact Us

  • Main Features and Applications

    MFD mining ventilation butterfly valves are mainly used in pipeline systems such as coal mine ventilation, dust removal, and environmental protection engineering to regulate and cut off the flow of gas media in pipelines according to different signals; It has the characteristics of reasonable structure, damage resistance, low flow resistance, minimal leakage, easy operation, and long service life.


    Classification and Parameters

    Mining ventilation butterfly valves are classified by control type, including electric ventilation butterfly valves and pneumatic ventilation butterfly valves,

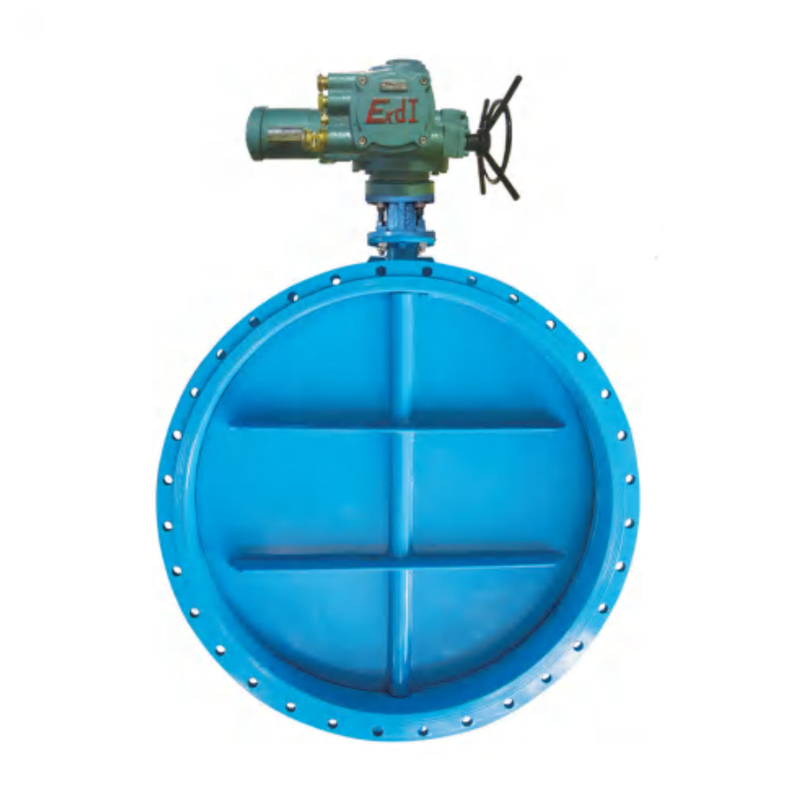

    1) There are two types of electric ventilation butterfly valves for mining: split type and integrated type
    *After being used in conjunction with the KXBC mining explosion-proof valve electric device control box, the split type electric ventilation butterfly valve can be connected to the DCS system
    Realize automated control of gas pipelines;
    *The integrated electric ventilation butterfly valve comes with a control system, which can be switched on and off or remotely on the body to achieve remote switching or adjustment
    Control without the need for a separate control box.
    *Modbus, Profbus and other bus communication can be configured, with 485 bus interface to achieve data communication.
    *Main performance and parameters of electric ventilation butterfly valve:

    Electric ventilated butterfly valve model MFD9B41W
    DN(mm) DN100~4000
    Medium and temperature Air, gas-containing gas mixtures; ≤300℃
    Nominal Pressure(MPa) PN0.1MPa
    Leakage rate ≤1%
    Voltage 380/660V

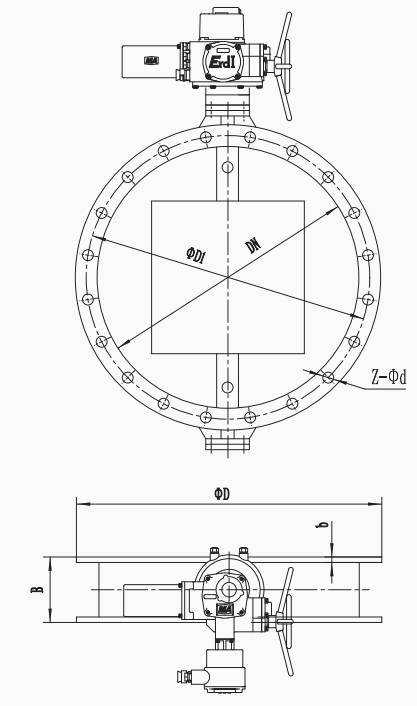

    Structural Schematic Diagram


    Classification and Parameters

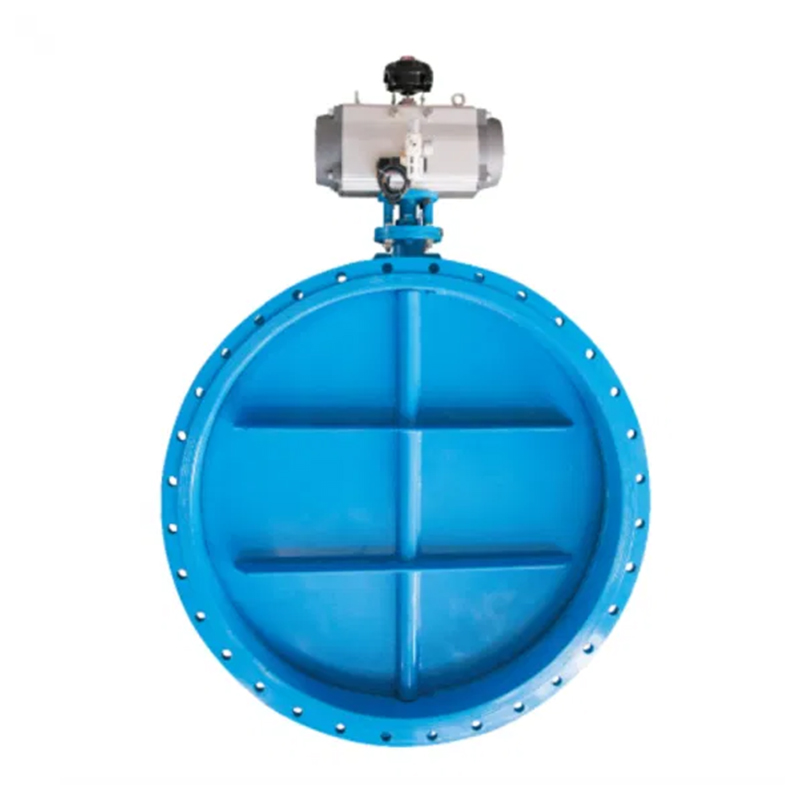

    The mining pneumatic ventilation butterfly valve is applied to ventilation pipelines that require quick opening and closing, and can achieve fast remote switching or adjustment control.
    *Main performance and parameters of pneumatic ventilation butterfly valve.

    Pneumatic ventilated butterfly valve model MFD6B41W
    DN(mm) DN100~4000
    Medium and temperature Air, gas-containing gas mixtures; ≤300℃
    Nominal Pressure(MPa) 0.01 (test pressure 0.02)
    Leakage rate ≤1%
    Pneumatic ventilation butterfly valves are available in control form Double-acting, single-acting
    Pneumatic ventilated butterfly valve optional function Switching type, regulating type
    Solenoid/positioner voltage AC24V,DC24V,AC110V,AC220V
    Compressed air pressure 2bar~8bar

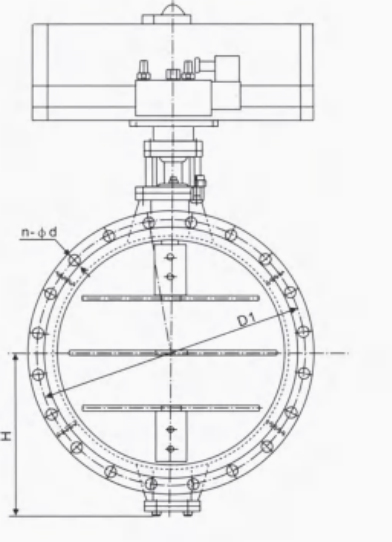

    Structural Schematic Diagram



    Selection Table for Connection Sizes and Related Mining Explosion-proof Valve Electric Devices

    Main dimensions of valves

    Main parameters of mining

    explosion-proof type/mining explosion-proof integrated electric device
    DN L D D1 n-Φd

    Mining explosion-proof valve

    electric device model

    		 Voltage (V) Power (KW)
    500  220  645  600  20-22 QB/QBY30 380/660 0.18
    600  220  755  705  20-26 QB/QBY40 380/660 0.18
    700  240  860  810  24-26 QB/QBY60 380/660 0.18
    800  240  975  920  24-30 QB/QBY60 380/660 0.18
    900  260  1075  1020  24-30 QB/QBY90 380/660 0.25
    1000  260  1175  1120  28-30 QB/QBY90 380/660 0.25
    1100  260  1275  1220  28-30 QB/QBY90 380/660 0.25
    1200  280  1375  1320  32-30 QB/QBY120 380/660 0.37
    1300  280  1475  1420  32-30 ZB/ZBY15 380/660 0.37
    1400  300  1575  1520  36-30 ZB/ZBY15 380/660 0.37
    1500  300  1690  1630  36-30 ZB/ZBY15 380/660 0.37
    1600  320  1790  1730  40-30 ZB/ZBY15 380/660 0.37
    1700  320  1890  1830  40-30 ZB/ZBY20 380/660 0.55
    1800  340  1990  1930  44-30 ZB/ZBY20 380/660 0.55
    1900  340  2090  2030  48-30 ZB/ZBY20 380/660 0.55
    2000  360  2190  2130  48-30 ZB/ZBY20 380/660 0.55
    2100  360  2290  2230  52-33 ZB/ZBY30 380/660 0.75
    2200  380  2405  2340  52-33 ZB/ZBY30 380/660 0.75
    2300  380  2505  2440  56-33 ZB/ZBY30 380/660 0.75
    2400  400  2605  2540  56-33 ZB/ZBY30 380/660 0.75
    2500  400  2706  2640  60-33 ZB/ZBY30 380/660 0.75
    2600  420  2805  2740  60-33 ZB/ZBY45 380/660 1.1
    2800  440  3030  2960  64-36 ZB/ZBY45 380/660 1.1
    3000  460  3230  3160  68-36 ZB/ZBY45 380/660 1.1
    3200  480  3430  3360  72-36 ZB/ZBY45 380/660 1.1
    3400  500  3630  3560  76-36 ZB/ZBY45 380/660 1.1
    3600  520  3840  3770  80-36 ZB/ZBY45 380/660 1.1
    3800  540  4045  3970  80-39 ZB/ZBY60 380/660 1.5
    4000  560  4245  4170  84-39 ZB/ZBY60 380/660 1.5
