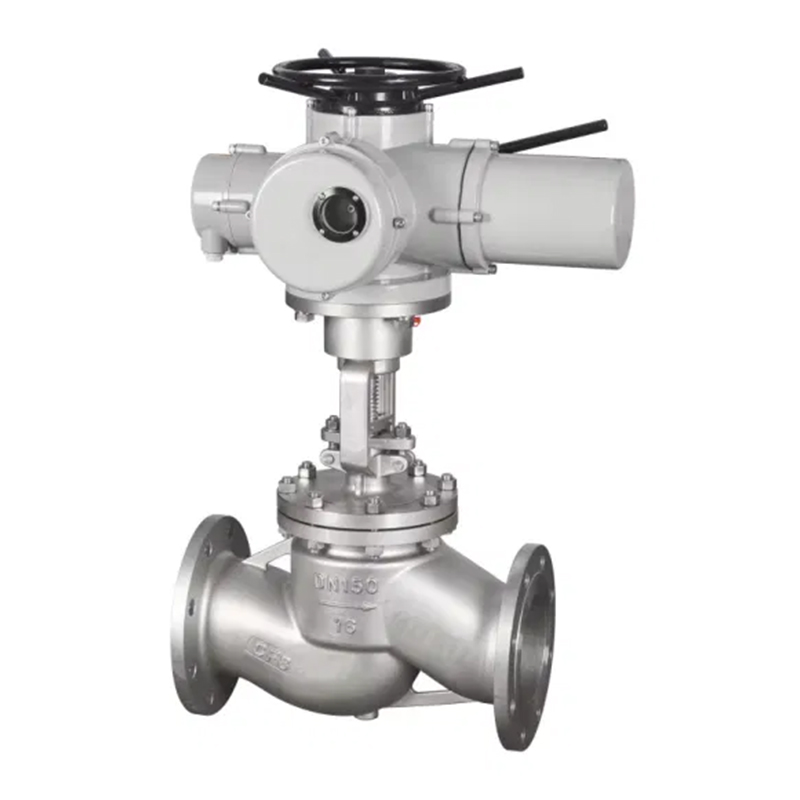

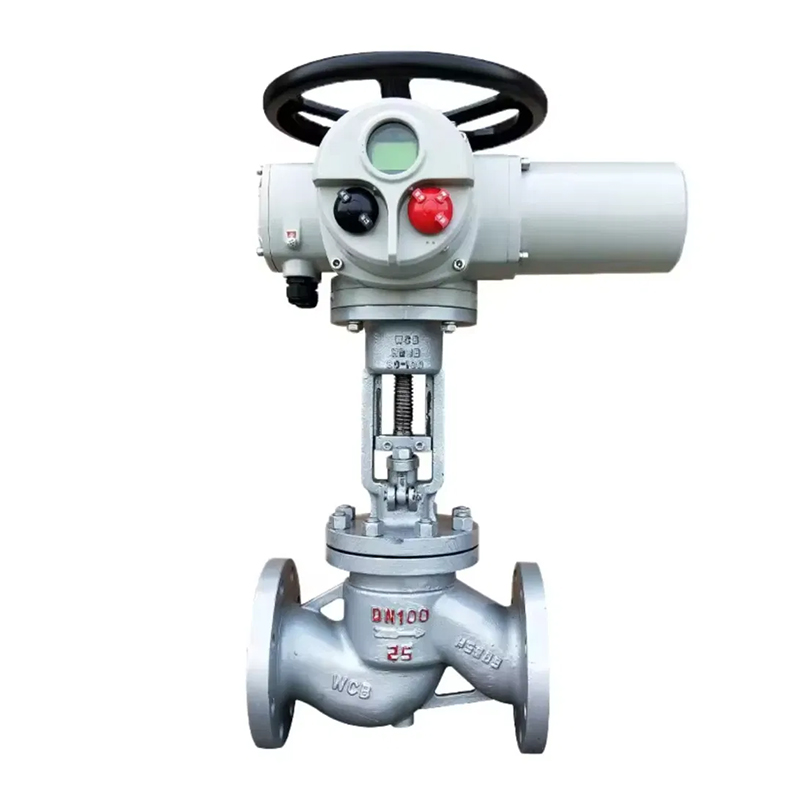

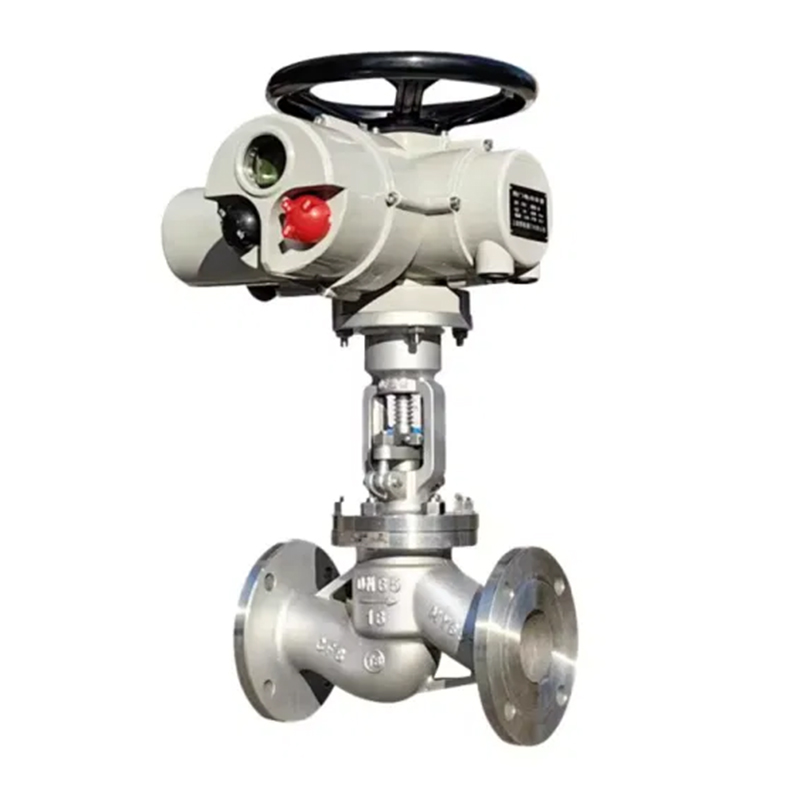

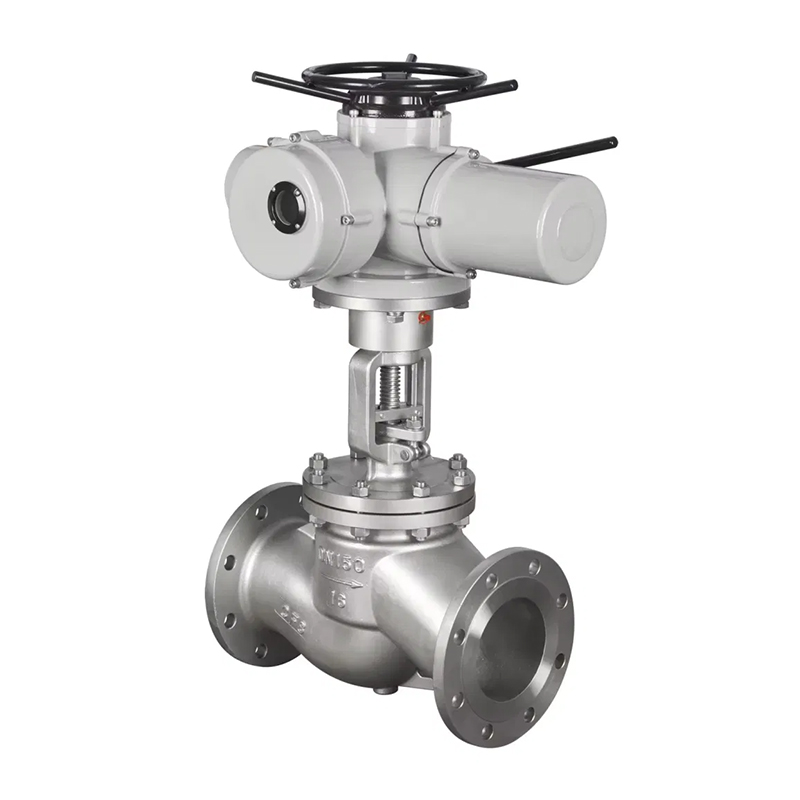

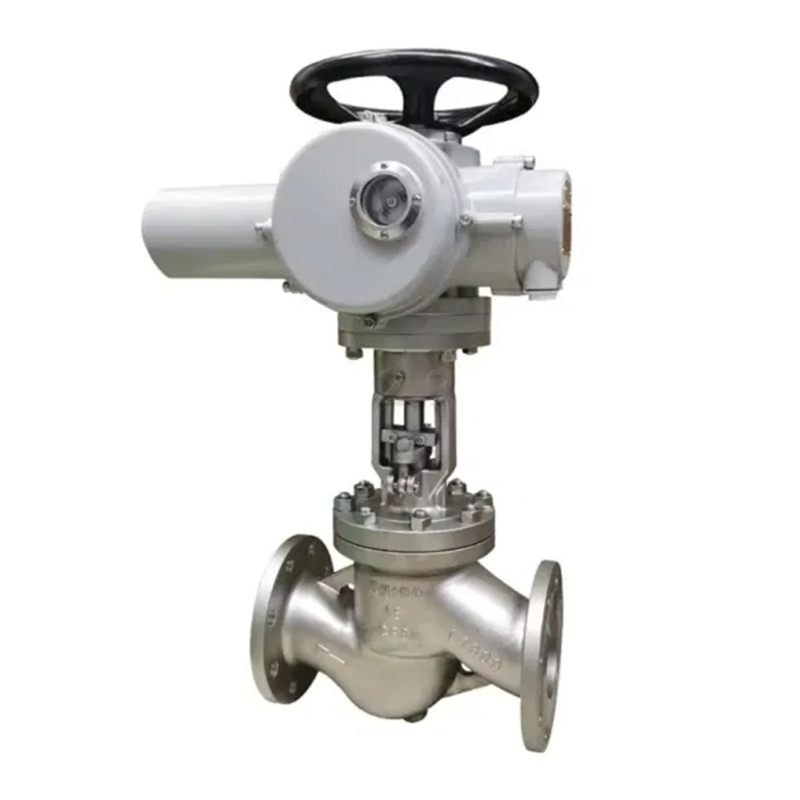

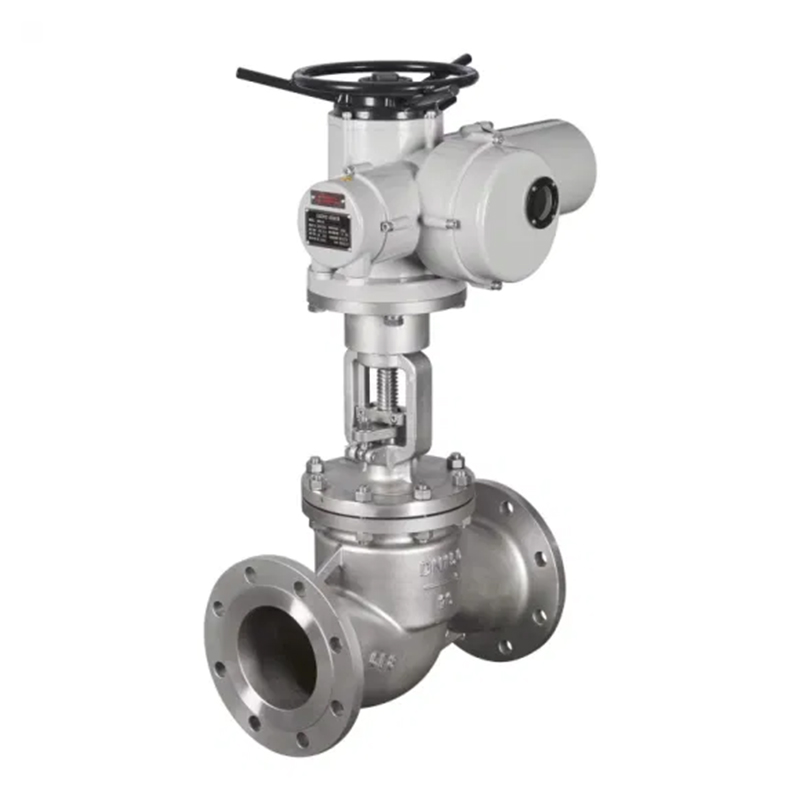

J941H Electric Globe Valves Overview
J941H electric stop valve consists of two parts: electric actuator and stop valve. The valve body material is complete, and the filler and the whole piece can be reasonably selected according to the actual working conditions or user requirements. It can be applied to various pressure, temperature and medium conditions. The valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It is generally not used for adjustment because the unbalanced force is too large during adjustment, which will cause severe erosion to the valve core. It is suitable for water supply and drainage, petrochemical, metallurgy and other places with high pressure.
The electric stop valve is a forced sealing valve, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. When the medium enters the valve from the bottom of the valve disc, the resistance that the operating force needs to overcome is the friction between the valve stem and the filler and the thrust generated by the pressure of the medium. The force to close the valve is greater than the force to open the valve, so the diameter of the valve stem should be large, otherwise the valve stem will bend.
Technical Parameter
Optional electric actuator features | Switch type, integral type, regulating type, intelligent type |
Optional electric actuator models | Z series, AK series |
Voltage | AC220V, AC380V |
Nominal diameter | DN10mm~DN300mm |
Nominal pressure | PN1.0MPa~PN6.4MPa |
proper temperature | -30~+550ºC |
Connection | Flange |
Valve body material | Cast steel, 304, 316, 316L |
Valve plate material | Cast steel, 304, 316, 316L |
Valve seat lining | PTFE, PPL, metal seal |
Applicable media | Water, petroleum, acid, viscous fluid, slurry medium, etc. |
J941H Electric Globe Valves Size and Models

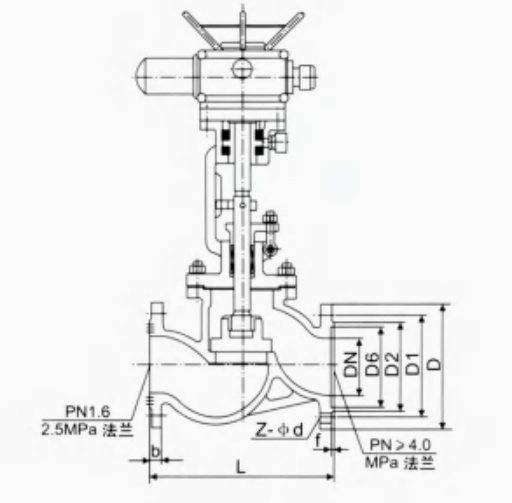

PN(MPa) | DN(mm) | L | D | D1 | D2 | b | f | Z-φd |
1.6 | 10 | 130 | 90 | 60 | 40 | 14 | 2 | 4-φ14 |
15 | 130 | 95 | 65 | 45 | 16 | 2 | 4-φ14 | |
20 | 150 | 105 | 75 | 55 | 16 | 2 | 4-φ14 | |
25 | 160 | 115 | 85 | 65 | 16 | 2 | 4-Φ14 | |
32 | 180 | 135 | 100 | 78 | 18 | 2 | 4-φ18 | |
40 | 200 | 145 | 110 | 85 | 18 | 3 | 4-φ18 | |
50 | 230 | 160 | 125 | 100 | 18 | 3 | 4-φ18 | |
65 | 290 | 180 | 145 | 120 | 18 | 3 | 4-φ18 | |
80 | 310 | 195 | 160 | 135 | 20 | 3 | 8-φ18 | |
100 | 350 | 215 | 180 | 155 | 22 | 3 | 8-φ18 | |
125 | 400 | 245 | 210 | 185 | 24 | 3 | 8-φ18 | |
150 | 480 | 280 | 240 | 210 | 24 | 3 | 8-φ23 | |
200 | 600 | 335 | 295 | 265 | 26 | 3 | 12-φ23 | |
250 | 650 | 405 | 355 | 320 | 30 | 3 | 12-φ23 | |
300 | 750 | 460 | 410 | 375 | 30 | 3 | 12-φ23 | |
2.5 | 10 | 130 | 90 | 60 | 40 | 16 | 2 | 4-φ14 |
15 | 130 | 95 | 65 | 45 | 16 | 2 | 4-φ14 | |
20 | 150 | 105 | 75 | 55 | 16 | 2 | 4-φ14 | |
25 | 160 | 115 | 85 | 65 | 16 | 2 | 4-φ14 | |
32 | 180 | 135 | 100 | 78 | 18 | 2 | 4-φ18 | |
40 | 200 | 145 | 110 | 85 | 18 | 3 | 4-φ18 | |
50 | 230 | 160 | 125 | 100 | 20 | 3 | 4-φ18 | |
65 | 290 | 180 | 145 | 120 | 22 | 3 | 4-φ18 | |
80 | 310 | 195 | 160 | 135 | 22 | 3 | 8-φ18 | |
100 | 350 | 230 | 190 | 160 | 24 | 3 | 8-φ18 | |
125 | 400 | 270 | 220 | 188 | 28 | 3 | 8-φ18 | |
150 | 480 | 300 | 250 | 218 | 30 | 3 | 8-φ23 | |
200 | 600 | 360 | 310 | 278 | 34 | 3 | 12-φ23 | |
250 | 650 | 425 | 370 | 332 | 36 | 3 | 12-φ23 | |
300 | 750 | 485 | 430 | 390 | 40 | 4 | 12-φ23 |
PN(MPa) | DN(mm) | L | D | D1 | D2 | D6 | b | f | Z-φd |
4.0 | 10 | 130 | 90 | 60 | 40 | 35 | 16 | 2 | 4-φ14 |
15 | 130 | 95 | 65 | 45 | 40 | 16 | 2 | 4-φ14 | |
20 | 150 | 105 | 75 | 55 | 51 | 16 | 2 | 4-φ14 | |
25 | 160 | 115 | 85 | 65 | 58 | 16 | 2 | 4-φ14 | |
32 | 180 | 135 | 100 | 78 | 66 | 18 | 2 | 4-φ18 | |
40 | 200 | 145 | 110 | 85 | 76 | 18 | 3 | 4-Φ18 | |
50 | 230 | 160 | 125 | 100 | 88 | 20 | 3 | 4-φ18 | |
65 | 290 | 180 | 145 | 120 | 110 | 22 | 3 | 8-φ18 | |
80 | 310 | 195 | 160 | 135 | 121 | 22 | 3 | 8-φ18 | |
100 | 350 | 230 | 190 | 160 | 150 | 24 | 3 | 8-φ23 | |
125 | 400 | 270 | 220 | 188 | 176 | 28 | 3 | 8-φ25 | |
150 | 480 | 300 | 250 | 218 | 204 | 30 | 3 | 8-φ25 | |
200 | 600 | 375 | 320 | 282 | 260 | 38 | 3 | 12-φ30 | |
6.4 | 10 | 170 | 100 | 70 | 50 | 35 | 18 | 2 | 4-φ14 |
15 | 170 | 105 | 75 | 55 | 41 | 18 | 2 | 4-Φ14 | |
20 | 190 | 125 | 90 | 68 | 51 | 20 | 2 | 4-φ18 | |
25 | 210 | 135 | 100 | 78 | 58 | 22 | 2 | 4-Φ18 | |
32 | 230 | 150 | 110 | 82 | 66 | 24 | 2 | 4-φ23 | |
40 | 260 | 165 | 125 | 95 | 76 | 24 | 3 | 4-φ23 | |
50 | 300 | 175 | 135 | 105 | 88 | 26 | 3 | 8-φ23 | |
65 | 340 | 200 | 160 | 130 | 110 | 28 | 3 | 8-φ23 | |
80 | 380 | 210 | 170 | 140 | 121 | 30 | 3 | 8-φ23 | |
100 | 430 | 250 | 200 | 168 | 150 | 32 | 3 | 8-φ25 | |
125 | 500 | 295 | 240 | 202 | 176 | 36 | 3 | 8-φ30 | |
150 | 550 | 340 | 20 | 240 | 204 | 38 | 3 | 8-φ34 | |
200 | 650 | 405 | 345 | 300 | 260 | 44 | 3 | 12-φ34 |
