AXY Type Concealed Rod Cast Iron Copper Inlaid Round Gate

Get A Quote

AXY Cast Iron Round Sluice Gate Overview

The gate is mainly composed of door frame, gate plate, sealing ring and adjustable wedge block, with the characteristics of simple structure, durability and easy installation.
It is often used in water conservancy projects such as water supply, drainage and flood control, especially in scenic spots, road projects and other places where open rod round gates are not allowed to be installed.

AXY Cast Iron Round Sluice Gate Main Characteristics

The gate should be installed as shown in the figure, with the gate plate located on the water-facing side;
The maximum allowable pressure of the gate plate pressing against the door frame is 0.1MPa;
The maximum allowable pressure of the gate plate pressing away from the door frame is 0.02MPa;
The leakage of the sealing working parts shall not exceed 1.25L/min.m.

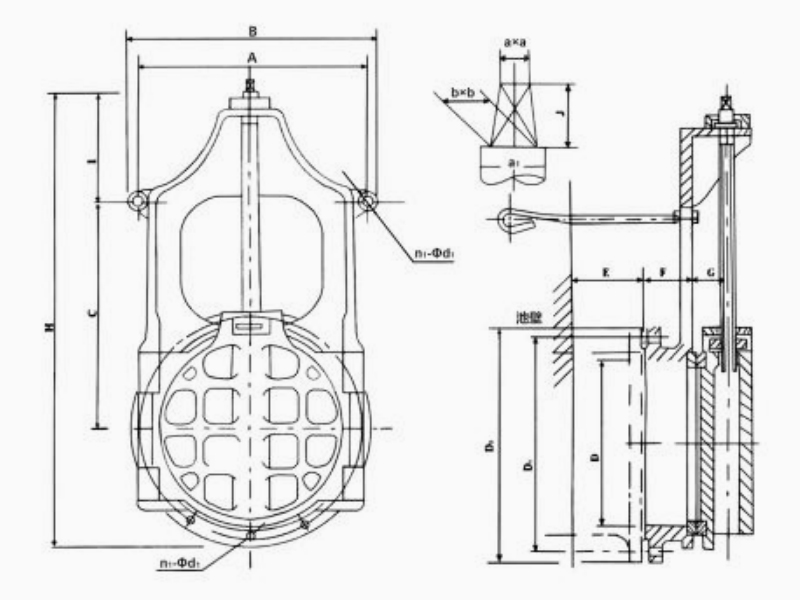

AXY Cast Iron Round Sluice Gate Size and Models

Gate Size	Installation Dimensions (mm)
D	A	B	C	D1	D2	E	F	G	H	I	J	a×a	b×b	n1	d1	n2	d3	a3
300	470	515	400	414	464	150	57	83	935	303	30	20×20	23×23	2	M18×500	12	M22×80	30
400	580	635	500	524	582	150	59	85	1148	357					M18×500		M22×80
450	614	654	552	584	652	150	80	86	1258	380					M18×500		M27×90
500	674	724	665	639	706	150	82	97	1451	406		20x20	25×25		M18×500			36
600	790	850	795	743	810	150	83	97	1611	411					M22×540
700	910	980	933	854	928	150	84	100	1735	428					M27×560	16	M30×100
800	1060	1130	1035	960	1034	150	87	103	2093	523	45	25x25	28x28		M30×590	20		48
900	1110	1190	1175	1073	1156	150	109	106	2246	528					M32×590	20		50
1000	1250	1330	1400	1179	1262	180	115	112	2571	530					M32×590	24		50
1200	1450	1550	1480	1383	1460	180	120	125	3140	825	60	32×32	35×35		M36×620	28	M32×120	71

MXF1200-MXF2400

Model	Gate Size	Dimensions
Model	D×D	A	b	C	E	H	L	L1	ō
MXF-1200	1200×1200	1430	150	690	174	2000	2000	1430	12
MXF-1400	1400×1400	1630	150	800	174	2500	2500	1630	12
MXF-1600	1600×1600	1850	200	900	204	2800	2800	1850	12
MXF-1800	1800×1800	2050	200	1000	220	3200	3200	2050	12
MXF-2000	2000×2000	2270	200	1110	254	3700	3700	2270	12
MXF-2200	2200×2200	2480	200	1210	254	4100	4100	2480	12
MXF-2400	2400×2400	2660	200	1315	260	4500	4500	2660	12

MXF2600-MXF5000

Model	Gate Size	Dimensions
Model	D×D	A	b	C	E	H	L	L1	L2	ō
MXF-2600	2600×2600	2880	200	1410	280	4800	4880	2880	2600	12
MXF-2800	2800×2800	3080	200	1515	320	5200	5200	3080	2800	12
MXF-3000	3000×3000	3310	200	1620	320	5600	5600	3310	3000	16
MXF-3500	3500×3500	3820	200	1880	320	6500	6500	3820	3500	16
MXF-4000	4000×4000	4330	200	2130	360	7500	7500	4330	4000	16
MXF-4500	4500×4500	4830	200	2380	360	8500	8500	4830	4500	16
MXF-5000	5000×5000	5330	200	2650	360	9500	9500	5350	5000	16
