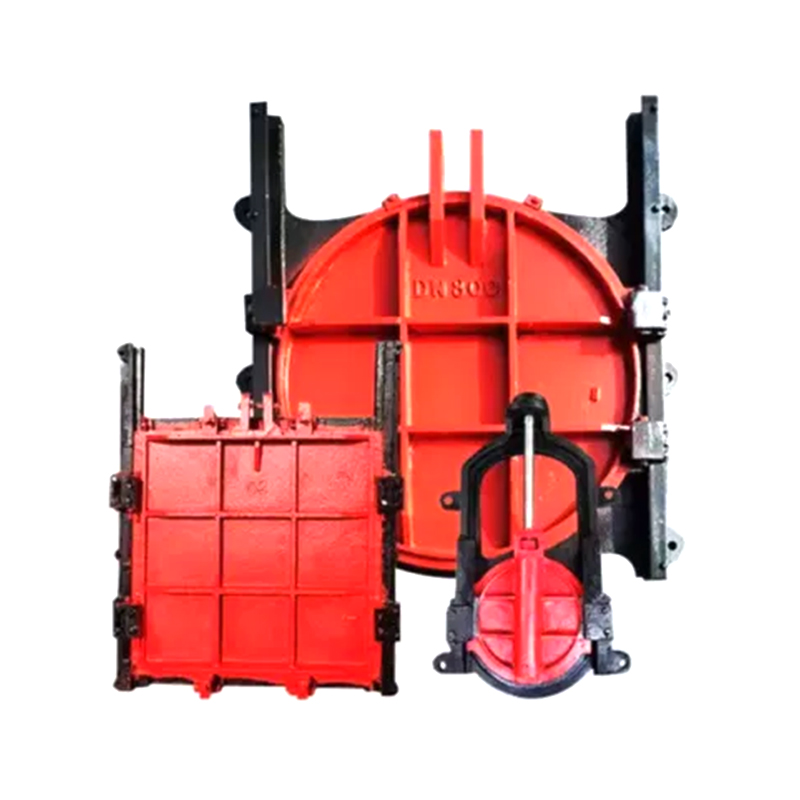

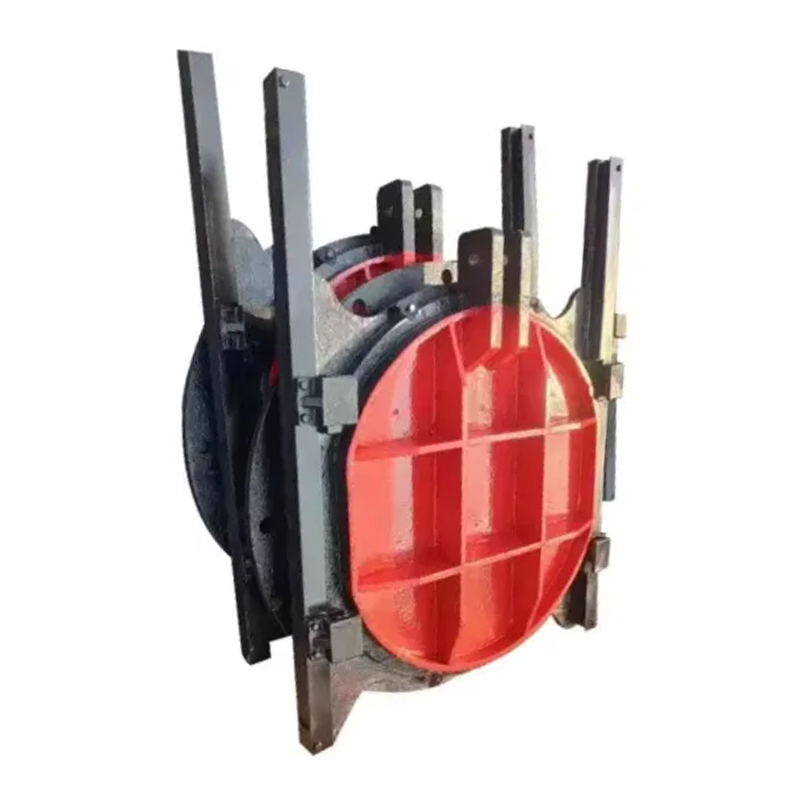

MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate
MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate
MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate
MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate
MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate
MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate

MXY Type Rising Pole Cast Iron Copper Inlaid Round Gate

Get A Quote
PREV：MXF Type Rising Pole Cast Iron Copper Inlaid Square GateNEXT：No next article
  • Parameter
  • Contact Us

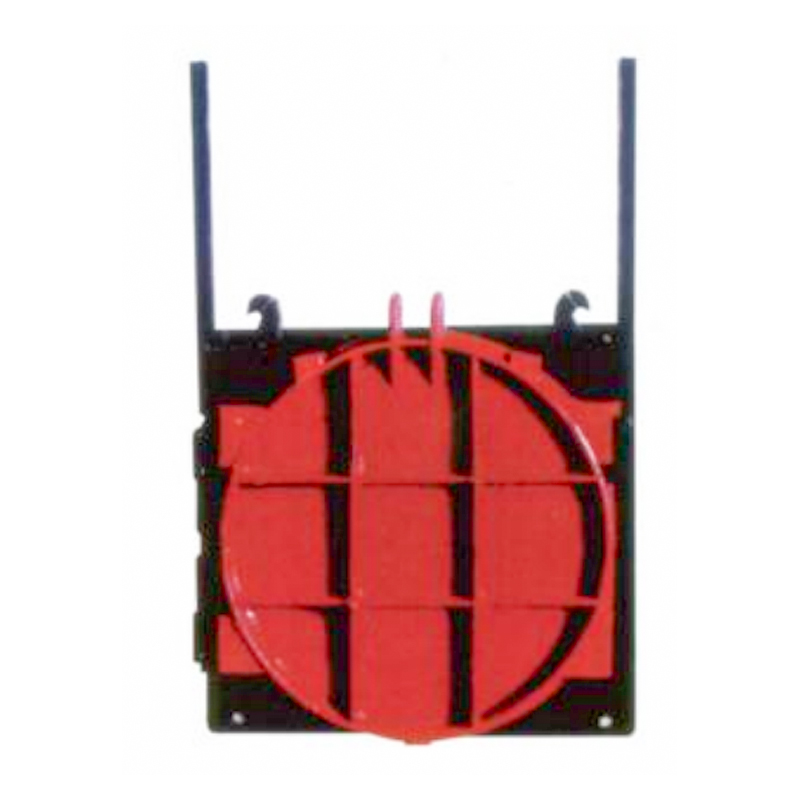

  • MXY Cast Iron Round Sluice Gate Overview

    This equipment is mainly composed of door frame, gate plate, sealing ring and adjustable wedge-shaped pressure block. After the gate is worn out for a long time, its sealing surface can be adjusted by the wedge-shaped pressure block to ensure normal operation.
    It has the characteristics of reasonable and solid structure, strong wear and corrosion resistance, reliable performance, easy installation, commissioning, use and maintenance.
    It is commonly used in water conservancy projects such as water supply, drainage, and flood control.


    MXY Cast Iron Round Sluice Gate Main Characteristics

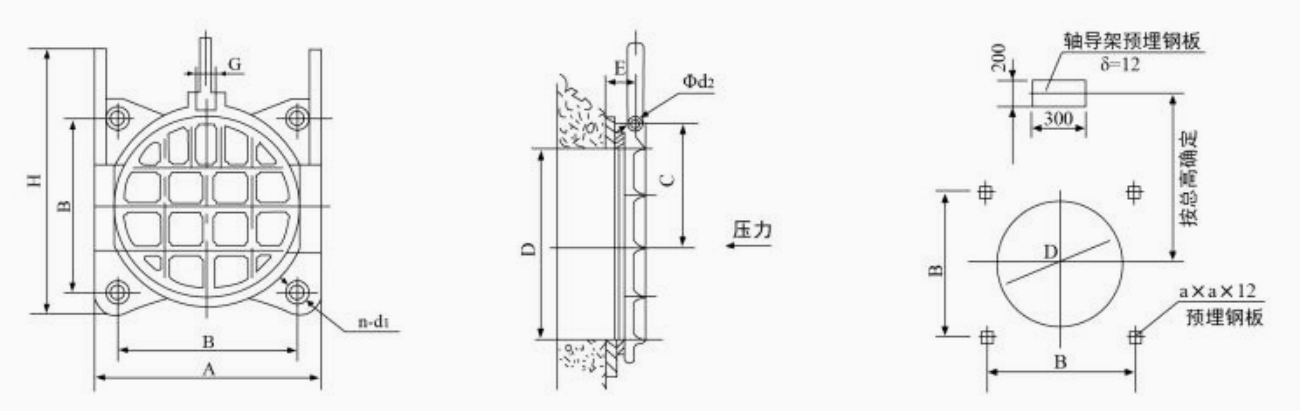

    The gate should be installed as shown in the figure, with the gate plate located on the water-facing side;
    The maximum allowable pressure of the gate plate pressing against the door frame is 0.1MPa;
    The maximum allowable pressure of the gate plate pressing away from the door frame is 0.02MPa;
    The leakage of the sealing working parts shall not exceed 1.25L/min.m.


    MXY Cast Iron Round Sluice Gate Size and Models

    DN200-DN1200
    Gate Size Installation Dimensions (mm) Gate Dimensions (mm)
    D A B C E G H Φd1 a x a nxd1
    200 382 200 146 70 30 360 18 50 4×M12
    250 426 250 175 75 35 450 18 50 4×M12
    300 470 300 200 80 40 610 20 50 4×M12
    400 580 400 275 83 40 730 20 100 4×M12
    450 642 450 300 83 45 810 25 100 4×M16
    500 680 500 340 83 45 960 25 100 4×M16
    600 780 600 390 95 56 1010 32 100 4×M16
    700 890 700 440 110 60 1180 32 100 4×M16
    800 1000 800 500 110 65 1380 32 100 4×M16
    900 1090 900 550 115 70 1550 32 100 4×M20
    1000 1180 1000 600 115 80 1660 36 100 4×M22
    1200 1400 1200 700 130 100 2020 40 100 4×M24

     DN1400-DN3000

    Gate Size Installation Dimensions (mm) Gate Dimensions (mm)
    D A E C H φd G a
    1400 1630 180 800 2400 40 110 150
    1500 1750 204 850 2600 40 110 150
    1600 1880 204 900 2600 44 120 200
    1700 1950 204 950 2800 44 120 200
    1800 2050 204 1000 3200 44 130 200
    1900 2170 204 1050 3300 50 130 200
    2000 2270 210 1100 3500 50 140 200
    2200 2490 250 1200 3960 55 140 200
    2400 2690 250 1300 4320 55 140 200
    2800 3090 280 1500 5040 55 150 200
    3000 3300 310 1600 5400 60 150 200
