Main Features and Applications

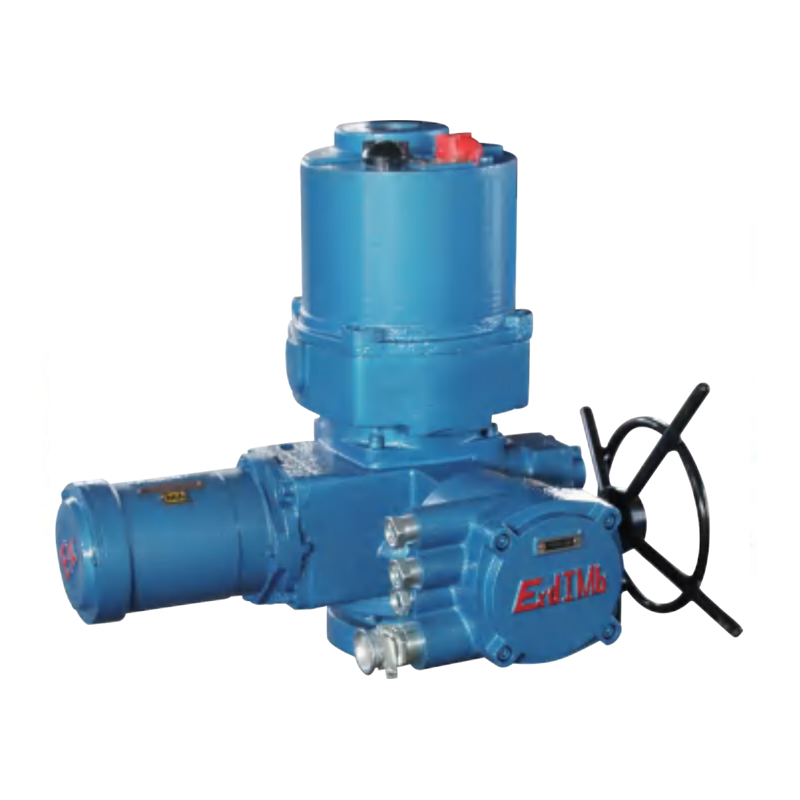

QBY Partial Rotary Mining Explosion proof Integrated Valve Electric Device (hereinafter referred to as the electric device) is a new generation of intelligent control mechanism for mining valves. It comes with an intelligent control unit and is designed with an electromechanical integration mechanism. It can achieve on-site control, centralized control, and remote control of mining valves without the need for a dedicated control box. Modbus, Profibus and other bus communication can be configured, with 485 bus interface to achieve data communication. This series of electric devices is very convenient for users to install, debug, and maintain, which can greatly save installation costs and shorten installation cycles. It is specially designed and manufactured for the use conditions and intelligent development of coal mines. QBY electric installation is suitable for valves with 90 degree rotation of valve plates, such as butterfly valves, dampers, etc.
Design and Manufacturing Standards for QBY Series Mining Explosion proof Integrated Valve Electric Device
| Q/3204CN 004-2019 | Technical Conditions for Mine Flameproof Integrated Valve Electric Device |
| GB3836.1-2010 | Explosive atmospheres Part 1: General requirements for equipment |
| GB3836.2-2010 | Explosive Atmospheres Part 2: Equipment Protected by Flameproof Type "D" |
Explosion proof type: mining explosion-proof type, explosion-proof mark is Exd I Mb.

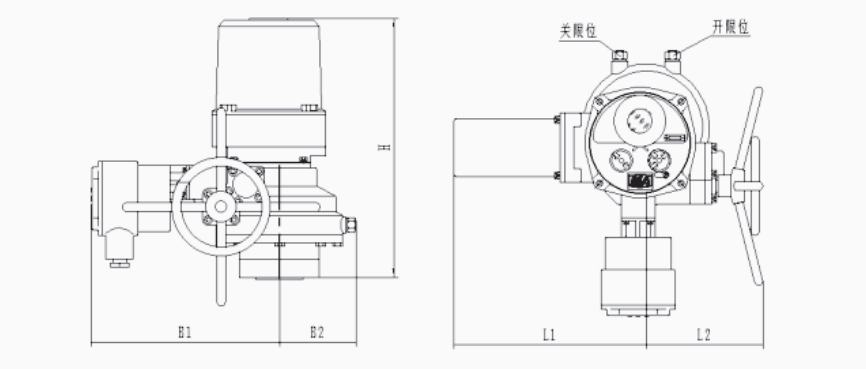

Outline and Dimensions Table
| Model | H | B1 | B2 | L1 | L2 | ΦD |
| QBY10-QBY40 | 490 | 290 | 110 | 300 | 180 | 280 |
| QBY60-QBY120 | 550 | 355 | 150 | 330 | 230 | 330 |
QB/QBY Model Specifications and Main Performance Parameters
| Model specifications | Nominal torque (N ·m) |
Maximum stem diameter (mm) |
Manual speed ratio | Output speed (r/min) |
Switch travel time (S) |
Motor power (kw) |
Motor current (A) |
Reference weight (Kg) |
|
| 660V | 380V | ||||||||
| QB/QBY10 | 100 | 28 | 88 | 1 | 15 | 0.18 | 0.55 | 0.9 | 47 |
| QB/QBY20 | 200 | 28 | 88 | 1 | 15 | 0.18 | 0.55 | 0.9 | 47 |
| QB/QBY30 | 300 | 28 | 88 | 1 | 15 | 0.18 | 0.55 | 0.9 | 47 |
| QB/QBY40 | 400 | 28 | 88 | 1 | 15 | 0.18 | 0.55 | 0.9 | 47 |
| QB/QBY60 | 600 | 42 | 74 | 1 | 15 | 0.18 | 0.55 | 0.9 | 74 |
| QB/QBY90 | 900 | 42 | 74 | 1 | 15 | 0.25 | 0.75 | 1.3 | 75 |
| QB/QBY120 | 1200 | 42 | 74 | 1 | 15 | 0.37 | 0.92 | 1.6 | 75 |
| QB200 | 2000 | 60 | 67 | 0.5 | 30 | 0.37 | 0.92 | 1.6 | 102 |
| QB300 | 3000 | 60 | 67 | 0.5 | 30 | 0.55 | 1.4 | 2.4 | 104 |
| QB500 | 5000 | 60 | 67 | 0.5 | 30 | 0.75 | 1.8 | 3.0 | 107 |
Note: Other speeds can be provided to meet user needs.
Structural Schematic Diagram and Dimensions of QB/QBY and Valve Connection
| Flange number | Electric installation model | d1 | d2 (f8) |
d3 | n-d4 | d7 | H | h | h1 | |
| Factory production | Maximum | |||||||||
| F05 | QB/QBY10 | 65 | 35 | 50 | 4-M6 | 22 | 40 | 3 | 3 | |
| F07 | QB/QBY20 | 90 | 55 | 70 | 4-M8 | / | 28 | 45 | 3 | 3 |
| F10 | QB/QBY30 | 125 | 70 | 102 | 4-M10 | / | 28 | 45 | 3 | 3 |
| QB/QBY40 | ||||||||||
| QB/QBY60 | 42 | 65 | ||||||||
| F12 | QB/QBY90 | 150 | 85 | 125 | 4-M12 | / | 42 | 65 | 3 | 3 |
| F14 | QB/QBY120 | 175 | 100 | 140 | 4-M16 | / | 42 | 65 | 3 | 3 |
| QB200 | 60 | 60 | 80 | 2 | ||||||
| F16 | QB300 | 210 | 130 | 165 | 4-M20 | 60 key 18 | 60 | 80 | 3 | 2 |
| QB500 | ||||||||||
