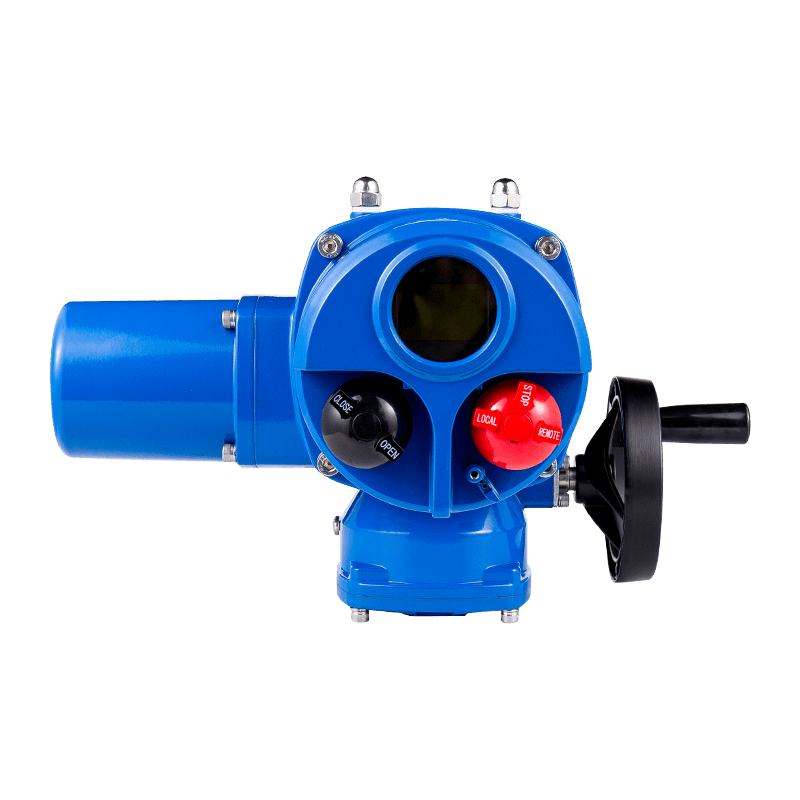

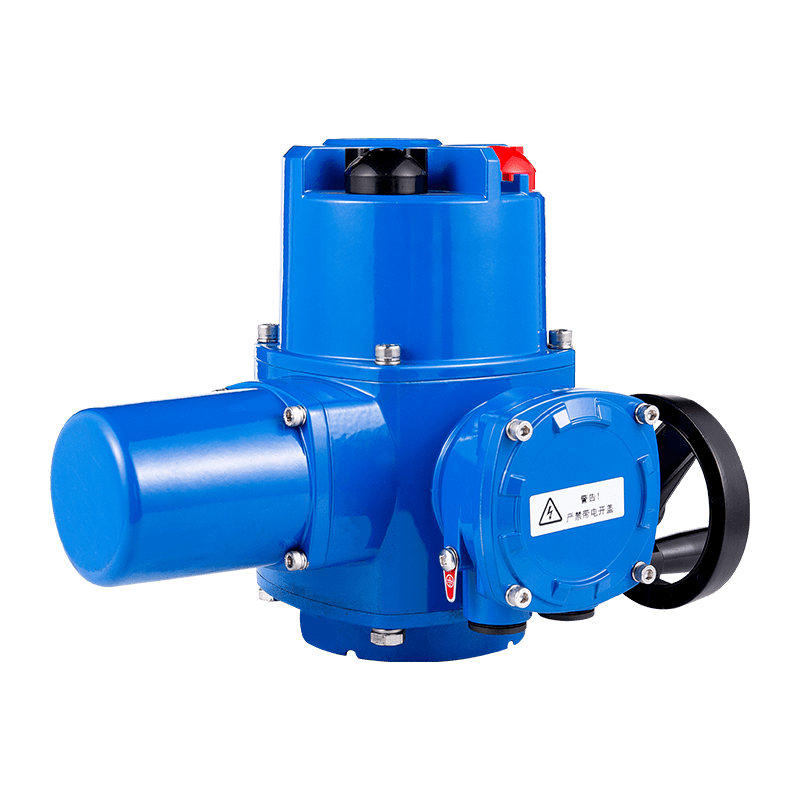

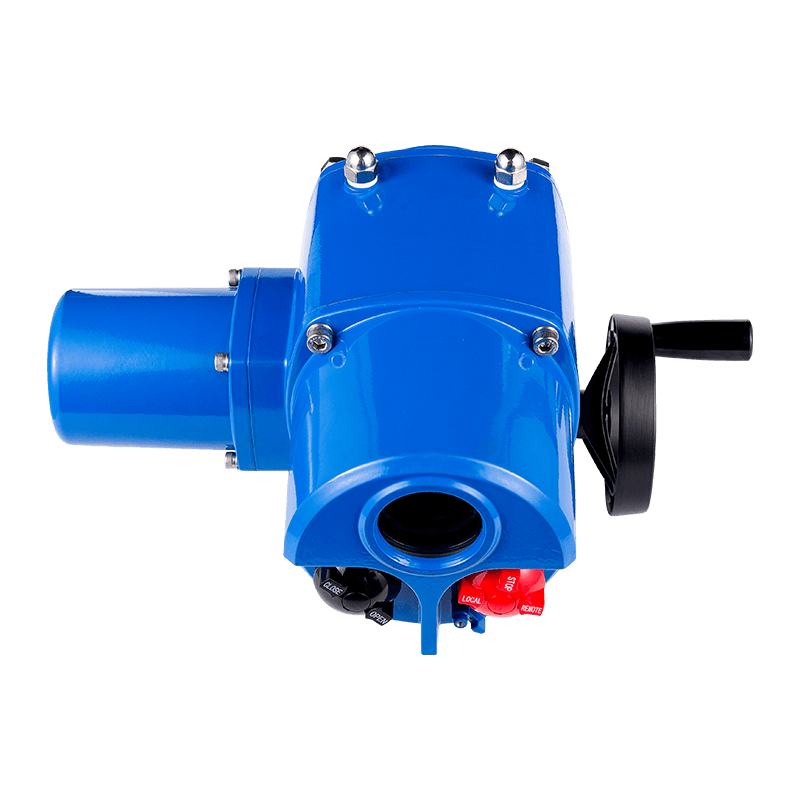

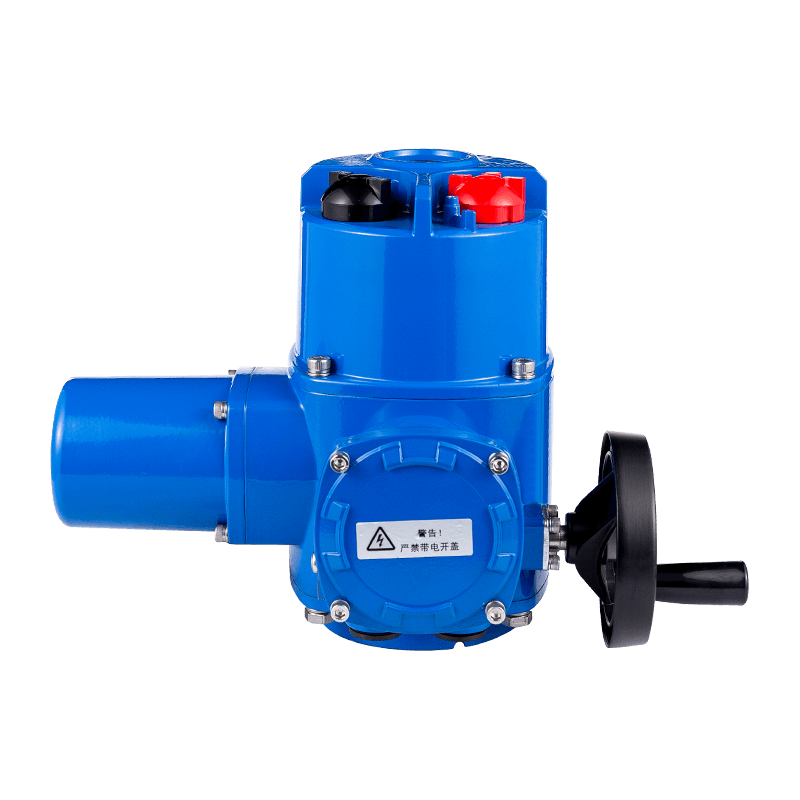

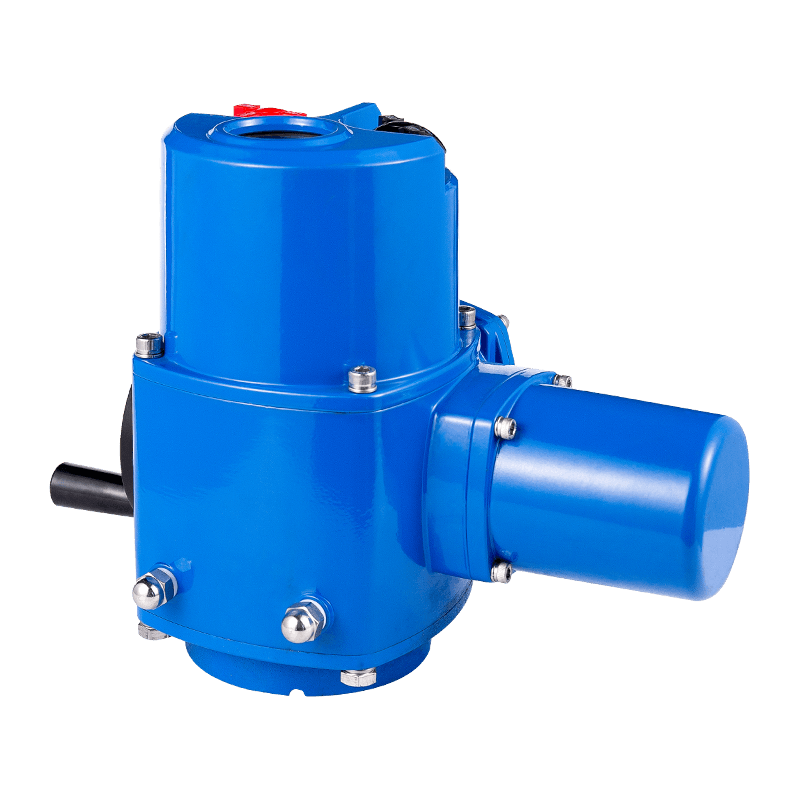

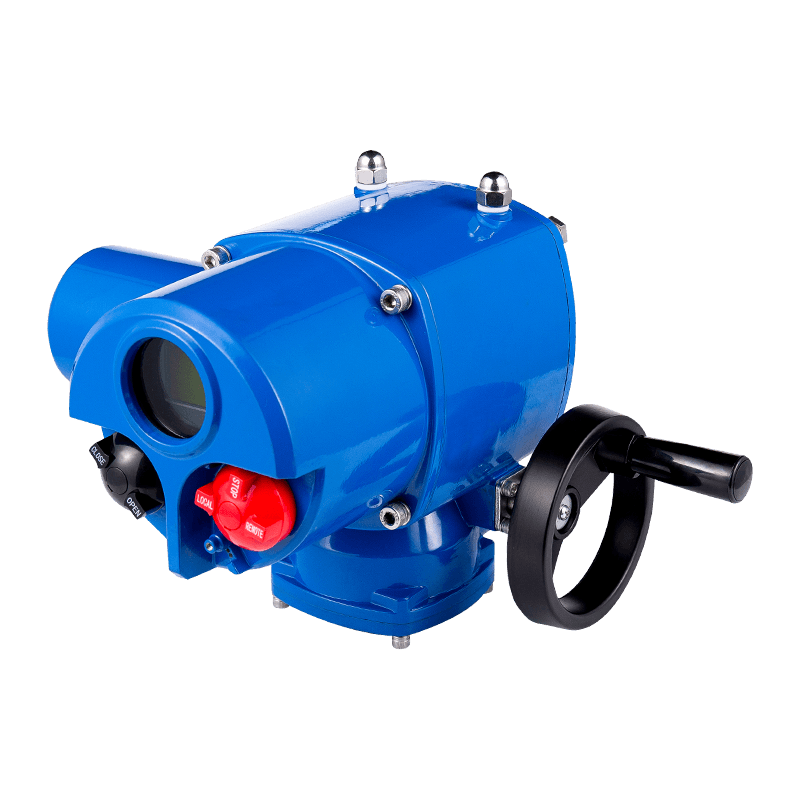

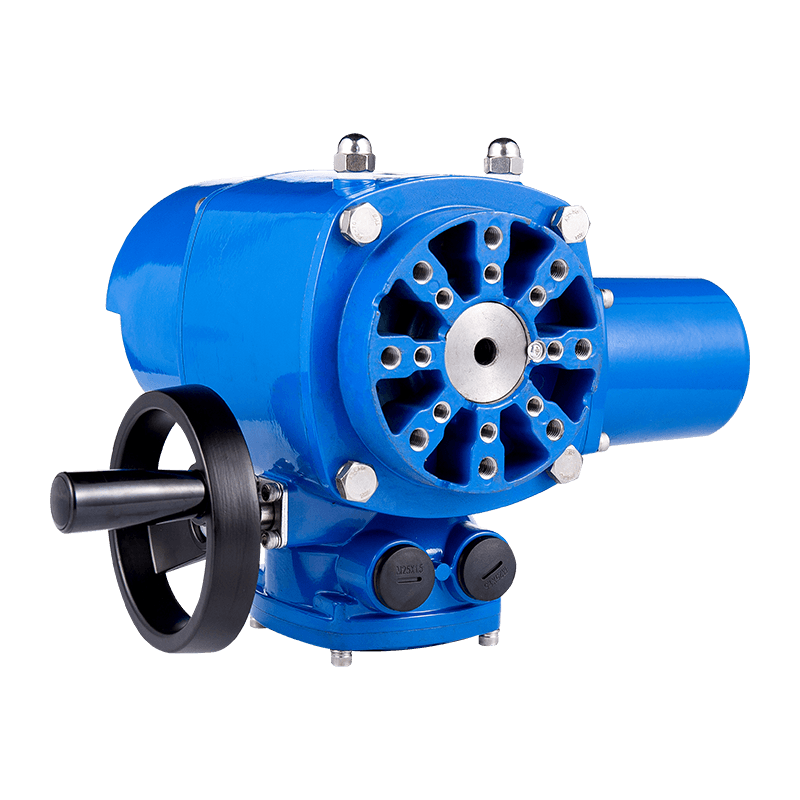

Model Specifications and Main Performance Parameters
Model specifications | Torque N.m |
Speed r/min |
Voltage 380V |
Voltage 220V |
Manual speed ratio | Maximum valve stem | Reference weight(kg) | ||
Power W |
Electric current A |
Power W |
Electric current A |
||||||
QL05 | 50 | 1 | 45 | 0.16 | 60 | 0.29 | 60:1 | 19 | 8 |
QL10 | 100 | 1 | 60 | 0.18 | 75 | 0.32 | 60:1 | 19 | 8 |
QL15 | 150 | 1 | 75 | 0.22 | 90 | 0.43 | 60:1 | 19 | 8 |
QL20 | 200 | 1 | 90 | 0.26 | 120 | 0.50 | 90:1 | 28 | 13 |
QL30 | 300 | 1 | 120 | 0.32 | 150 | 0.64 | 90:1 | 28 | 13 |
QL40 | 400 | 1 | 150 | 0.37 | 180 | 0.83 | 90:1 | 28 | 13 |
QL60 | 600 | 1 | 180 | 0.72 | 250 | 1.40 | 87:1 | 38 | 26 |
QL90 | 900 | 1 | 250 | 1.00 | 370 | 2.00 | 87:1 | 38 | 26 |
QL120 | 1200 | 1 | 250 | 1.00 | 370 | 2.00 | 87:1 | 38 | 26 |
QL150 | 1500 | 1 | 370 | 1.65 | 550 | 3.15 | 87:1 | 38 | 26 |
QL200 | 2000 | 0.5 | 370 | 1.65 | 550 | 3.15 | 348:1 | 55 | 35 |
QL300 | 3000 | 0.5 | 370 | 1.65 | 550 | 3.15 | 348:1 | 55 | 35 |
QL400 | 4000 | 0.5 | 550 | 2.7 | 348:1 | 55 | 35 | ||
QL500 | 5000 | 0.5 | 550 | 2.7 | 348:1 | 55 | 35 |

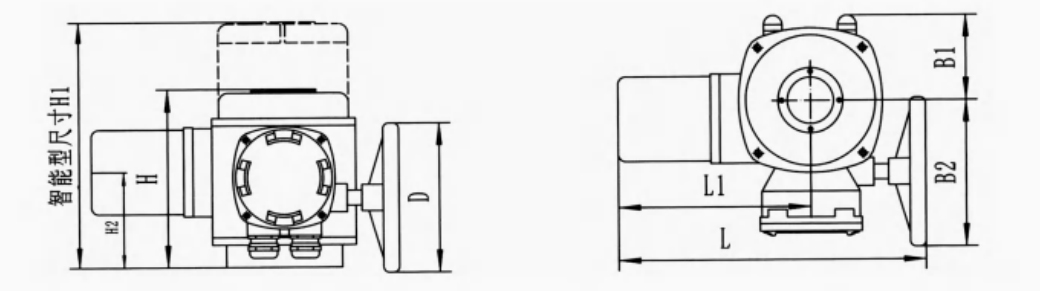

QL Appearance and Connection Dimensions
Model/Size | B1 | B2 | H | H1 | H2 | L | L1 | D |
Q05/15 | 68 | 114 | 156 | 270 | 73 | 250 | 157 | 140 |
Q20/40 | 91 | 157 | 191 | 273 | 103 | 332 | 208 | 160 |
Q60/150 | 143 | 203 | 227 | 309 | 126 | 424 | 232 | 250 |
Q200/500 | 143 | 203 | 291 | 373 | 190 | 424 | 232 | 250 |

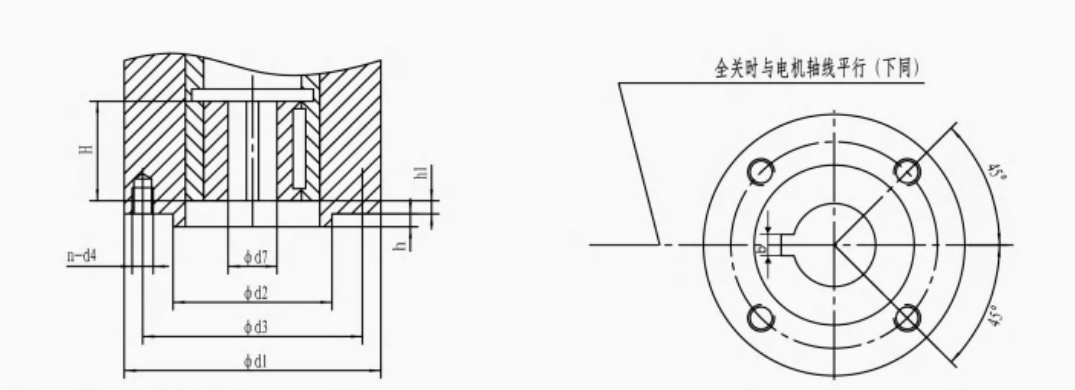

Model | Optional flange number | d1 | d2 | d3 | n-d4 | d7(max) | b | H | h | h1 |
Q5-15 | F05 | 92 | / | 50 | 4-M6 | 19 | 5 | 35 | 0 | 2 |
F07 | 92 | / | 70 | 4-M8 | 19 | 5 | 35 | 0 | 2 | |
Q20-40 | F07 | 125 | / | 70 | 4-M8 | 28 | 8 | 42 | 0 | 3 |
F10 | 125 | / | 102 | 4-M10 | 28 | 8 | 42 | 0 | 3 | |
Q60-120 | F10 | 150 | / | 102 | 4-M10 | 38 | 10 | 60 | 0 | 3 |
F12 | 150 | / | 125 | 4-M12 | 38 | 10 | 60 | 0 | 3 | |
F14(customized) | 197 | / | 140 | 4-M16 | 38 | 10 | 60 | 0 | 3 | |
Q150 | F14 | 197 | / | 140 | 4-M16 | 38 | 10 | 60 | 0 | 3 |
Q200-500 | F14 | 215 | / | 140 | 4-M16 | 55 | 16 | 80 | 0 | 5 |
F16 | 215 | / | 165 | 4-M20 | 55 | 16 | 80 | 0 | 5 |
