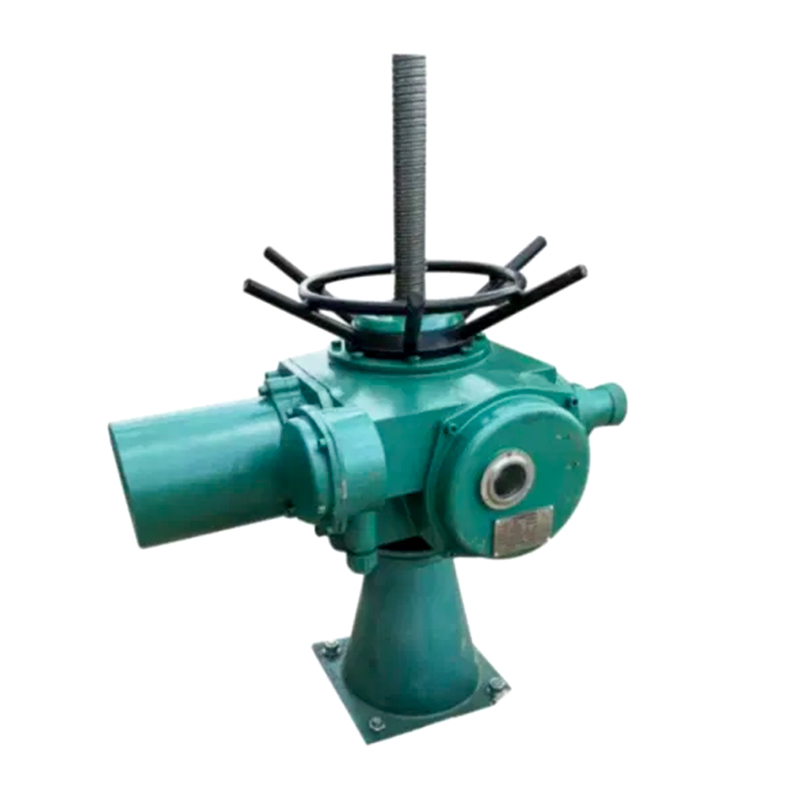

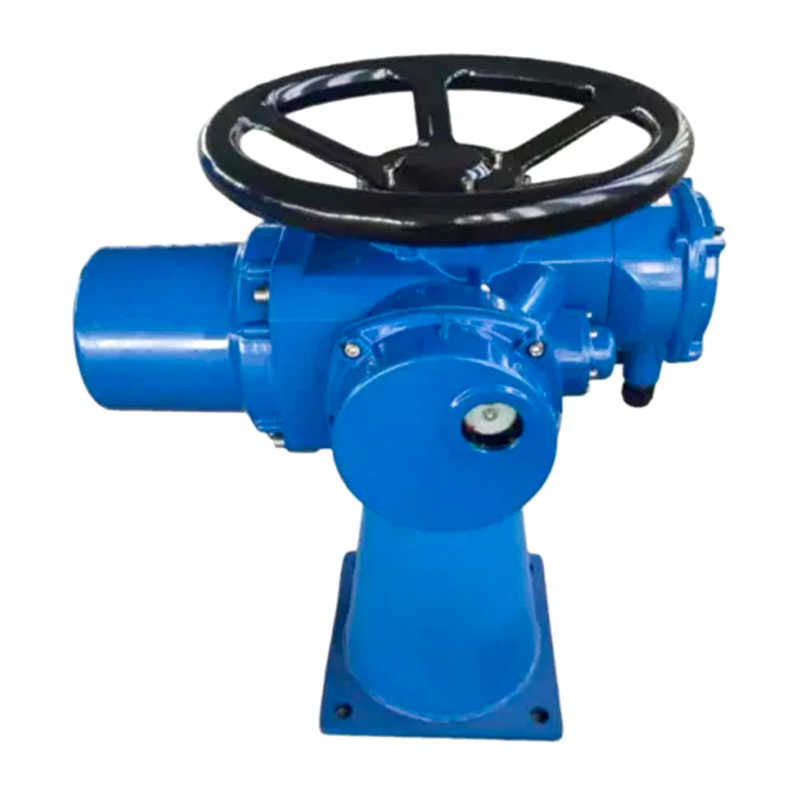

QS/QS-Y

Overview

We have 4 series of hoists which are
flat-type gate hoist winch
fast gate winch hoist
radial gate hoist
direct screw hoist

All series have single and double lift points, single and central drive, and manual and electronic control.
Various machinery are widely used to open and close all kinds of flat gate, radial gate and quick gate in hydro power, shipping, urban water supply and drainage, flood discharge, sewage treatment, aquaculture and irrigation and water conservancy construction. Medium-sized radial gate has full range and features reliable performance. All products have production licenses, and in strict accordance with the 'Water Conservancy and Hydropower Project Hoist Manufacture, Installation and Acceptance Test Specification' and 'Water Resources and Hydropower Engineering Manufacture and Installation of Steel Gates and Acceptance Norms'.

Working Environment and Main Technical Conditions

(1) Power supply: Primarily operates on three-phase AC380V, 50Hz;
For added flexibility, additional power supply options include three-phase AC400V, 415V, 660V available at 50Hz and 60Hz.
Single-phase AC options are also available: AC220V, 110V, accommodating both 50Hz and 60Hz frequencies.
For DC power needs, options include 24V, 48V, and 84V, ensuring comprehensive adaptability.
(2) Ambient temperature: Suitable for -20ºC~+60ºC; Also engineered to withstand more rigorous climates from -40ºC~+70ºC.
(3) Relative humidity: Maintains functionality in humidity levels not exceeding 95% at 25°C.
(4) Working environment: The standard model is perfectly suited for areas free from flammable, explosive, or highly corrosive substances, while the flameproof variant (ExdIIBT4) is meticulously crafted for environments with IIA,
explosive gas mixtures of class IIB, spanning groups T1-T4.
(5) Protection level: Rated at IP65 and IP67, with an optional upgrade to IP68 available for special applications.
(6) The motor is expertly designed for short-time duty with a 10-minute operational rating, extendable to 15-30 minutes upon special request. It features Class F insulation, ensuring top-tier safety.
(7) Anti-corrosion coating: Utilizes high-temperature electrostatic spray coating with anti-corrosion epoxy plastic powder, guaranteeing exceptional durability and longevity.
(8) Main Functional Features of Intelligent Electric Actuators
The innovative mechatronic design ensures a streamlined size and lightweight structure, blending functionality with elegance.
Incorporates a cutting-edge digital integrated chip, delivering robust functionalities with exceptional precision.
Tailored for non-intrusive operation, the setup and debugging are effortlessly managed via intuitive knobs or infrared remote, maintaining a robust seal without the need for opening the enclosure, thereby enhancing efficiency and ease of use.
Equipped with an absolute encoder for stroke displacement, it guarantees exceptional interference resistance, precise valve position retention, and an extended service life, setting the standard in operational excellence.
Showcasing the latest technology, our device features an intuitive LCD subtitle display, available in both Chinese and English, ensuring effortless interaction for users worldwide.
Expertly engineered, it incorporates multiple protective features such as travel limit protection, torque protection, stall alarm, overheat protection, signal failure protection, power phase loss protection, and an advanced automatic phase sequence identification and correction system, providing unparalleled safety and reliability.
Our forward-thinking product line includes three varied intelligent types: the user-friendly intelligent switch type, the precision-focused intelligent adjustment type, and the sophisticated advanced intelligent type, each designed to meet specific operational requirements with ease.
(9) The intelligent switch type is proficient in handling input signals via a 24VDC pulse or a level signal, offering adaptable and robust communication solutions.
The output signal is expertly managed via a relay output with an impressive contact rated capacity of 5A, 250VAC or 5A, 30VDC. This configuration ensures exceptional performance and unwavering dependability, making it a standout in its category.
Our output position analog signal is processed with outstanding efficiency at 4-20mA, ensuring precise, accurate readings for control. This precision facilitates performance and enhances system efficacy.
The intelligent regulation feature is designed to accept an analog input signal of 4-20mA, enabling exceptionally fine-tuned responsiveness to meet a broad range of varying requirements with ease and precision.
Analog output signals are delivered with seamless precision at 4-20mA, guaranteeing the accurate and consistent data transmission needed for operational integrity and reliability.
The switch input signal is versatile, accommodating a 24VDC pulse or level signal. This flexibility allows for comprehensive signal integration across diverse applications, enhancing adaptability and utility.
Switching output signals are adeptly managed via relay output, with a contact rated capacity of 5A, 250VAC, or 5A, 30VDC. This ensures robust, reliable operation that's built to withstand demanding conditions.
Basic error: ≤1, providing precise and reliable performance in every operation, ensuring exceptional accuracy and operational dependability.
The advanced intelligent type boasts cutting-edge features such as ESD emergency override protection, bus communication, Bluetooth, wireless control, and more. This array of features offers unparalleled versatility and comprehensive control solutions.

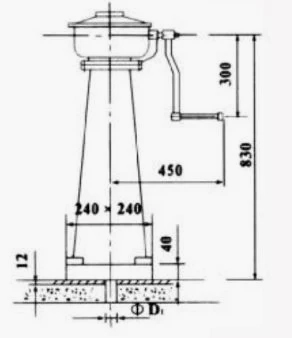

QS-Y Manual Type Hoist Size and Dimensions

Model	Reduce Ratio	Pre-buried ΦD1	Screw diameter φd
QS-1T	01:02	φ100	φ32
QS-2T	01:02	φ100	φ42
QS-3T	01:02	φ150	φ44
QS-4T	01:04	φ150	φ44
QS-5T	01:04	φ150	φ44

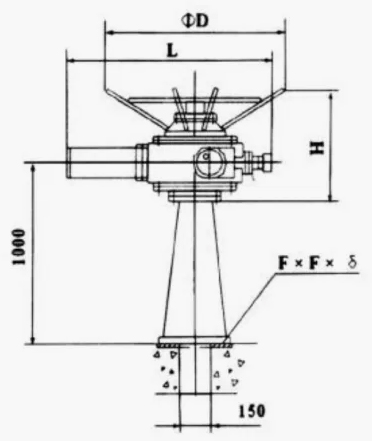

QS Electric Type Hoist Size and Dimensions
